Schilling T4 Wrist Camera Kit
Wrist-Mounted Camera with LED Lights
Description

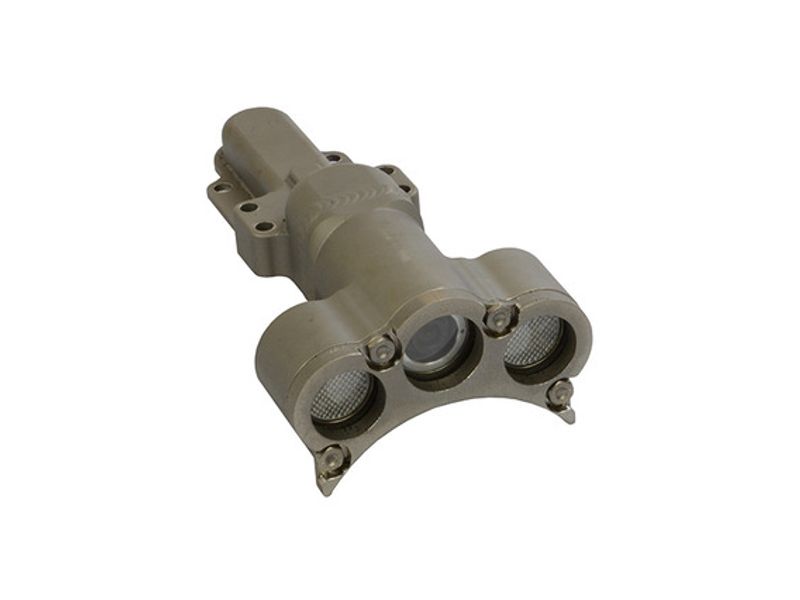

The Schilling T4 Wrist Camera Kit is a wrist-mounted integrated camera with a high-resolution colour camera and two LED lights in an integrated titanium housing. The datasheet describes it as the wrist-mounted TITAN integrated camera, giving operators a view of the tasks being performed. The kit has no external cables, and the lights and camera are managed by the master controller.
The camera in the Schilling T4 Wrist Camera Kit has a 1/3 colour Super HAD CCD image sensor with 480 TV lines horizontal resolution and a 3.6 mm (39 degrees) lens, and can be supplied PAL or NTSC. The in-arm electronics draw 0.75 A at 24 VDC. The kit is rated to 4,000 msw with an operating temperature of −10 to +50 °C, and the datasheet lists a transit case for the wrist camera assembly.
