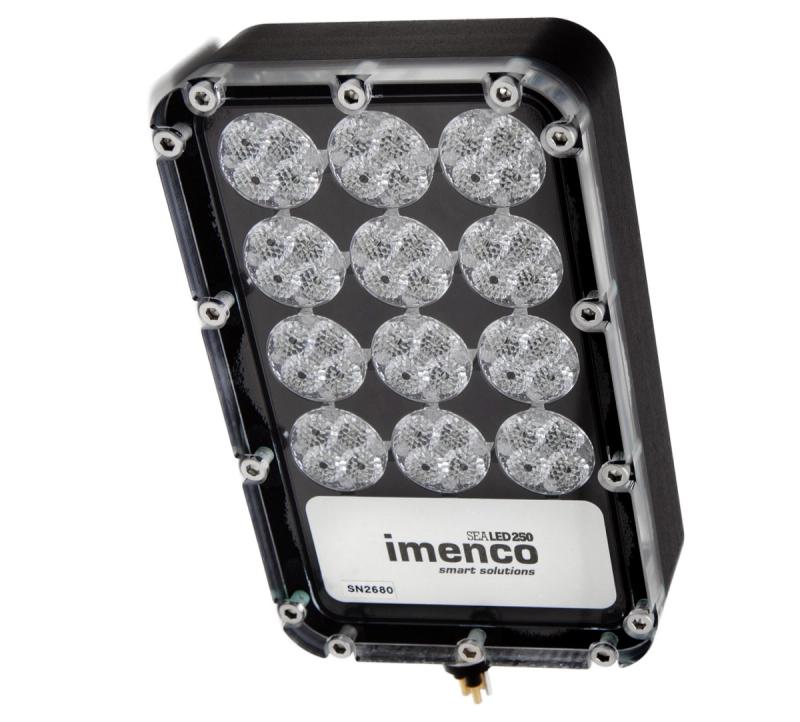

SeaLED 250

Subsea LED Light Panel for ROV

Description

The Imenco SeaLED 250 is a multipurpose LED light panel for ROVs and inspection points. According to the datasheet, the SeaLED 250 can be delivered with different colour temperatures and lens angles; the specification lists 3200 K and a beam angle of 25°, 40° or 70°.

The Imenco SeaLED 250 has a light output of 15000 lumen from 200 W input power (≈ 600 W halogen) and runs on 110 V AC. Light output is regulated over 0–100 %, either Triac dimmable or by 0–10 V DC. The LED array life expectancy is 50,000 hours.

The SeaLED 250 is made of hard anodised aluminium and is rated to a depth of 3000 m. Dimensions excluding connector are 101 × 163 × 43 mm, and the light weighs 1.3 kg in air and 1 kg in water. The connector is MCBH3M (or as specified).
