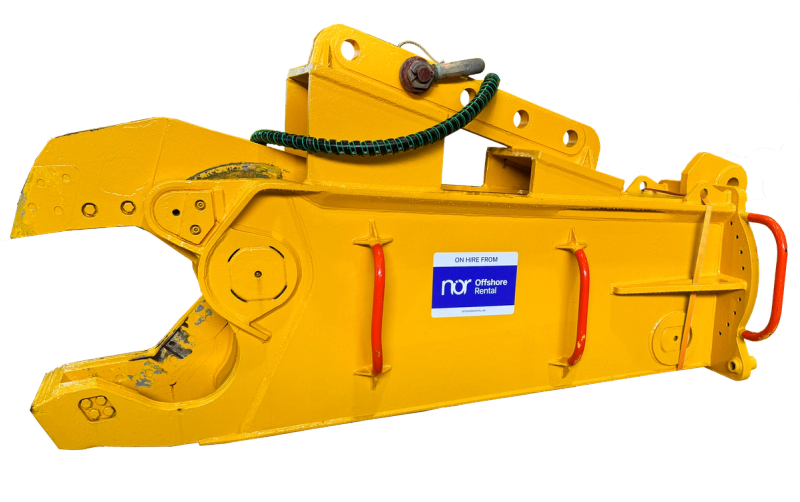

Shear Cutter SH550

Description

The Shear Cutter SH550 is a shear cutter that can be operated with seawater and hydraulic oil. Seawater operation uses a sea water kit operated from the ROV, and a topside system with hoses, reel and HPU is supplied as an option.

According to the technical specification table for model SH550R, the shear cutter has an operational weight of 5750 kg, an operating pressure of 320–350 bar and an oil flow of 275–375 l/min. The carrier weight class is 55–65 t (bucket place) and 39–45 t (stick place). Jaw opening (A) is 760 mm, jaw depth (B) is 780 mm and length of shears (C) is 3950 mm.

Cutting capacity for the SH550R is 110 mm rod, 508 × 14 mm pipe, 700 mm IPE profile, 500 mm HEA profile, 360 mm HEB profile, 25 mm plate and 250 × 25 mm L profile. The article number is 2810.0016.

Technical Specification

Model (specification table)

SH550R

Article number

2810.0016

Operating medium

Seawater (sea water kit operated from the ROV) or hydraulic oil

Topside system

Hoses, reel and HPU (optional)

Carrier weight class (bucket place)

55–65 t

Carrier weight class (stick place)

39–45 t

Operational weight

5750 kg

Operating pressure

320–350 bar

Oil flow

275–375 l/min

A – Jaw opening

760 mm

B – Jaw depth

780 mm

C – Length of shears

3950 mm

Cutting capacity – rod

110 mm

Cutting capacity – pipe

508 × 14 mm

Cutting capacity – IPE profile

700 mm

Cutting capacity – HEA profile

500 mm

Cutting capacity – HEB profile

360 mm

Cutting capacity – plate

25 mm

Cutting capacity – L profile

250 × 25 mm
