Snapper™ Weak Link

Description

The Imenco Snapper™ Weak Link is a weak link for situations where a controlled emergency release point is required. It uses exchangeable shear pins, and the datasheet states a safety factor of 1.5.

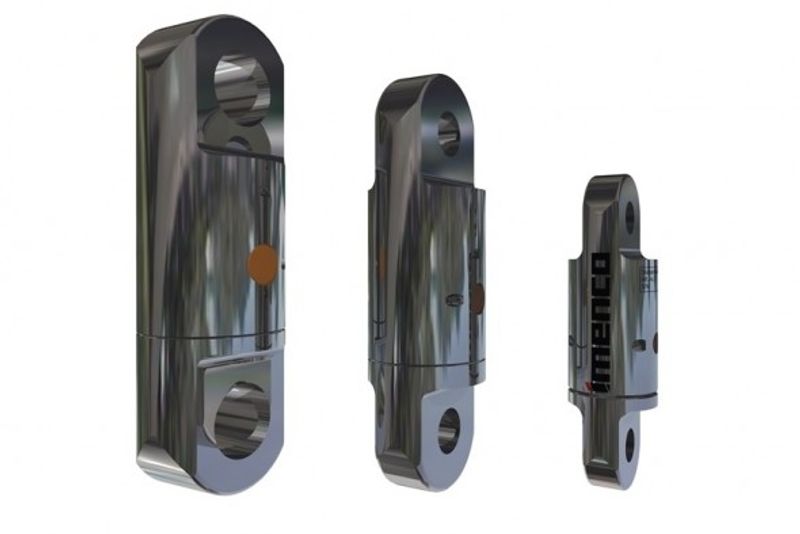

The Snapper™ Weak Link comes in three sizes. Snapper 6,5Te has shear pins of 1, 2, 3, 4, 4.5, 5 and 6.8 Te. Snapper 12Te has shear pins of 8, 10, 12, 15, 18 and 20 Te. Snapper 35Te has shear pins of 15, 20, 25, 30 and 35 Te. According to the datasheet, the different weak link sizes fit directly into the same shackle sizes.

Technical Specification

Function

Controlled emergency release point

Sizes

Snapper 6,5Te, Snapper 12Te, Snapper 35Te

Shear pin range (Snapper 6,5Te)

1, 2, 3, 4, 4.5, 5, 6.8 Te

Shear pin range (Snapper 12Te)

8, 10, 12, 15, 18, 20 Te

Shear pin range (Snapper 35Te)

15, 20, 25, 30, 35 Te

Safety factor

1.5

Shackle fit

Weak link sizes fit directly into the same shackle sizes

Drawing dimensions, Ø74 body (unit not stated)

Overall length 266, length between padeyes 192, padeye holes Ø28

Drawing dimensions, Ø100 body (unit not stated)

Overall length 349, length between padeyes 249, padeye holes Ø38

Drawing dimensions, Ø120 body (unit not stated)

Overall length 395, length between padeyes 275, padeye holes Ø62
