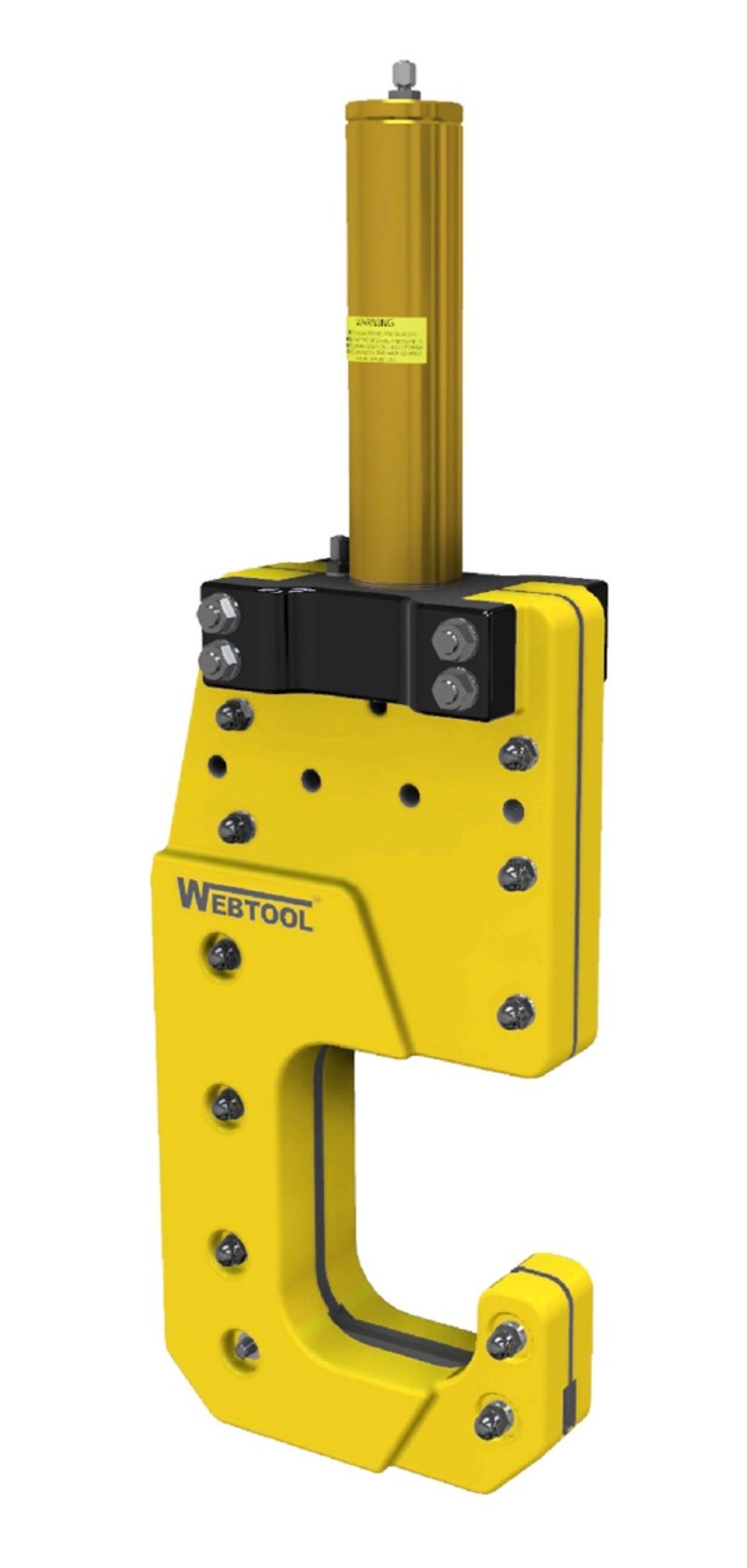

Softline Cutter SL165

Description

The Webtool Softline Cutter SL165 is a hydraulically operated soft and fibre line cutting tool. It is designed for diver or ROV operation and can be used at any water depth.

The Webtool SL165 has a maximum cutting capacity of Ø165 mm and a maximum operating pressure of 690 bar. The swept volume is 0.51 litres on the cut stroke and 0.35 litres on the return stroke.

The tool is built in aluminium and stainless steel. It weighs approximately 54 kg in air and approximately 36.5 kg in water.

Technical Specification

Operation

Hydraulic

Application

Soft and fibre line cutting

Cutting capacity, maximum

Ø165 mm

Maximum operating pressure

690 bar

Weight in air (approx.)

54 kg

Weight in water (approx.)

36.5 kg

Swept volume, cut stroke

0.51 litres

Swept volume, return stroke

0.35 litres

Construction

Aluminium and stainless steel

Deployment

Diver or ROV

Water depth

Any water depth
