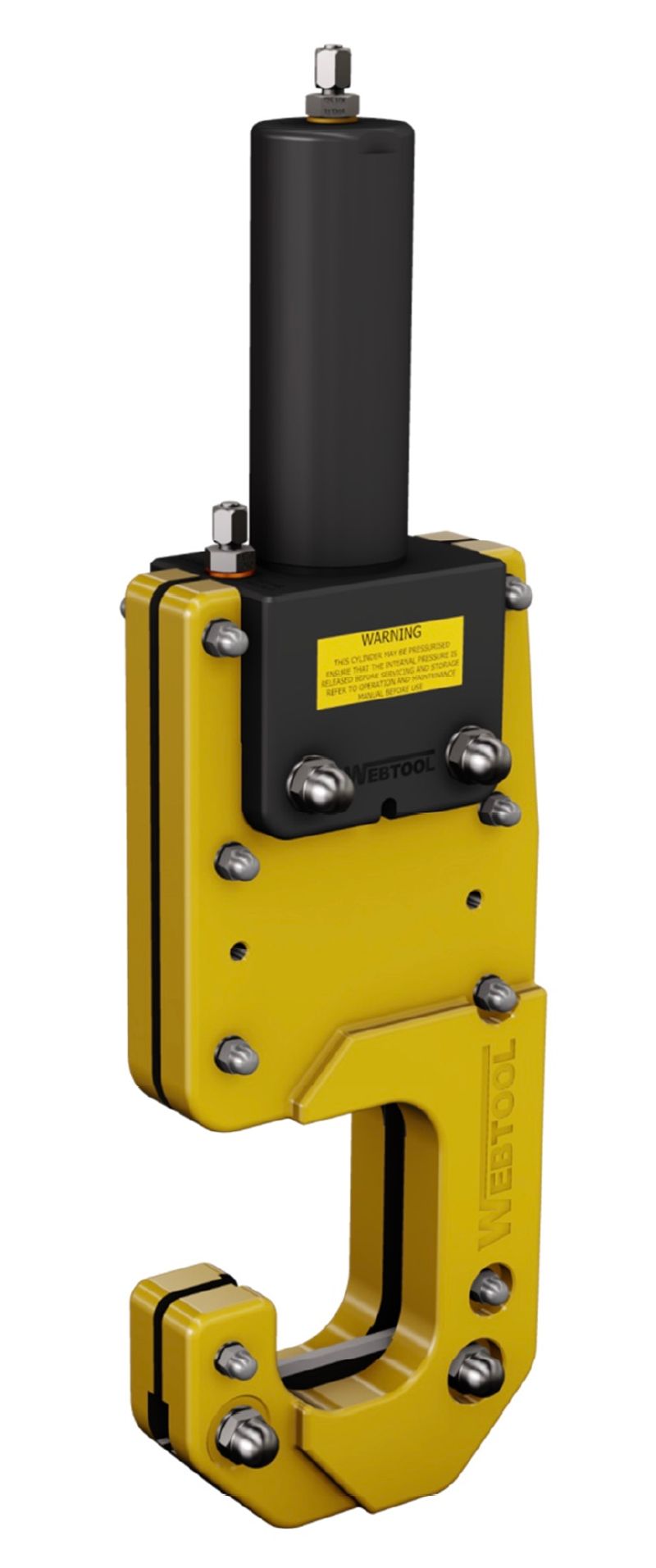

Softline Cutter SL80

Description

The Webtool Softline Cutter SL80 is a heavy duty, hydraulically operated cutting tool for soft and fibre line. It is designed for diver or ROV operation, is built from aluminium and stainless steel, and according to the datasheet can be used at any water depth.

The Webtool SL80 has a maximum cutting capacity of Ø80 mm and a maximum operating pressure of 690 bar. Swept volume is 0.15 litres on the cut stroke and 0.1 litres on the return stroke. Approximate weight is 15 kg in air and 10.5 kg in water.

The datasheet shows the standard SL80 tool. Bespoke and custom designs to suit special applications are available on request.

Technical Specification

Type

Hydraulically operated soft and fibre line cutting tool

Operation

Diver or ROV

Construction

Aluminium and stainless steel

Water depth

Can be used at any water depth

Cutting capacity – maximum

Ø80 mm

Maximum operating pressure

690 bar

Weight in air (approx.)

15 kg

Weight in water (approx.)

10.5 kg

Swept volume, cut stroke

0.15 litres

Swept volume, return stroke

0.1 litres

Custom designs

Bespoke and custom designs available on request
