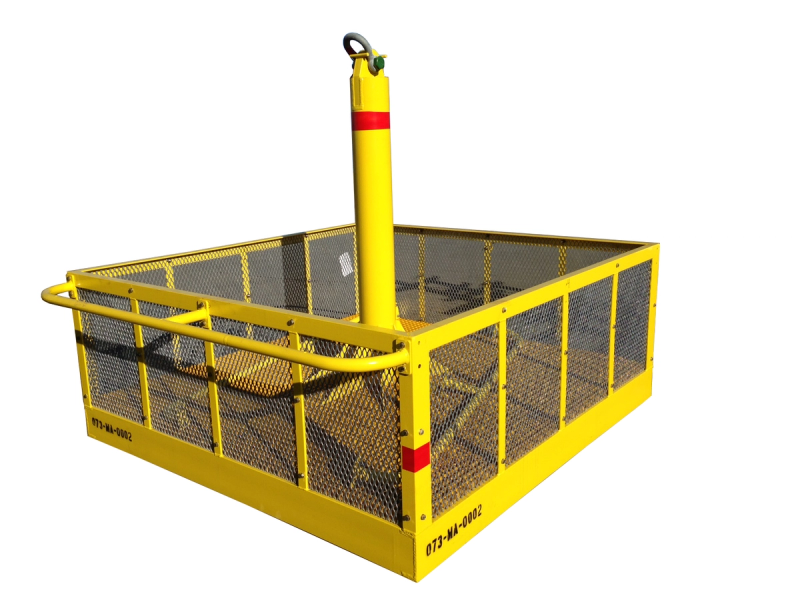

4Te Subsea Basket

Description

The 4Te Subsea Basket is a subsea basket with a single point of lifting and certification according to DNV 2.7.3. It has removable grab bars.

The 4Te Subsea Basket has a payload of 4000 kg, a weight in air (tare) of 1085 kg and a maximum gross weight (MGW) of 5085 kg. The outside dimensions are 2.45 × 2.45 × 2.16 m (W × D × H) and the inside dimensions are 2.35 × 2.35 × 0.75 m (W × D × H).

A hatch with ROV lock (optional) and compartment dividers (optional) are available.

Technical Specification

Weight in air (tare)

1085 kg

Payload

4000 kg

Maximum gross weight (MGW)

5085 kg

Outside dimensions (W × D × H)

2.45 × 2.45 × 2.16 m

Inside dimensions (W × D × H)

2.35 × 2.35 × 0.75 m

Certification

According to DNV 2.7.3

Lifting

Single point of lifting

Grab bars

Removable

Hatch with ROV lock

Available (optional)

Compartment dividers

Available (optional)
