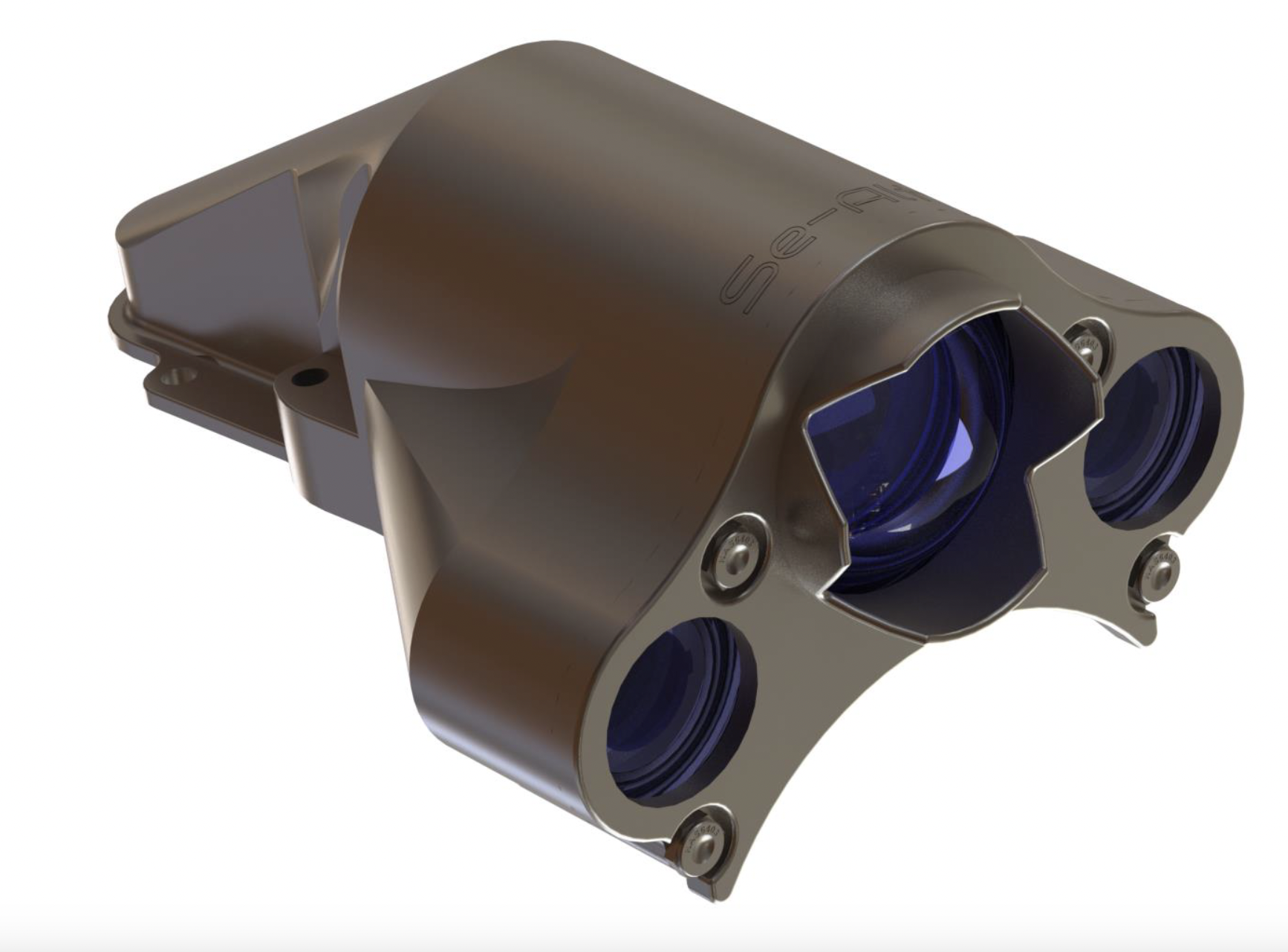

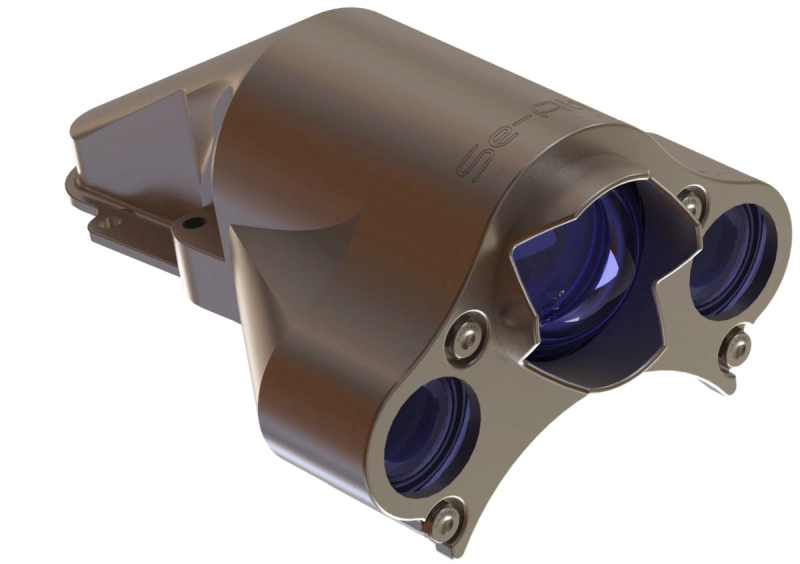

Subsea Manipulator Wrist Camera
T4 Manipulator HD zoom and focus camera
Description
The Advanced Capability (ADCAP) Manipulator camera kit by Se-Alt is designed to be a direct replacement and significant upgrade to the standard Schilling Robotics Titan III & IV Wrist Camera kits. The Se-Alt replacement improves on the T4 OEM camera system by providing:
• Full 1080p 60fps HD resolution – HD/3G-SDI, Composite or Low Latency HD IP
• 10 x Optical Zoom & Focus – Manual & Auto, with further 16 x Digital Zoom
• Exceptional Low light Visibility
• Image stabilization reduces blurring from vibration
• Greatly Increased Lumen output from new LED technology – High and Low beam
• UV Fluorescence detection LEDs as optional extra – under development
• User Friendly UI (SDI) with all camera parameters available to change in real time
• IP Zoom and Focus control via VISCA over IP – all camera settings available to change via browser page
• Power, Camera & Lights, controlled from the Schilling Robotics OEM Master Controller Driver buttons allow for universal familiarity
• Optional Master Controller Thumb stick (Joystick) for operator control of manual Zoom and Focus Commands
• 3000m depth rated – 4K and 6K models customizable upon request
