Positive Locking Subsea ROV Hook
Description

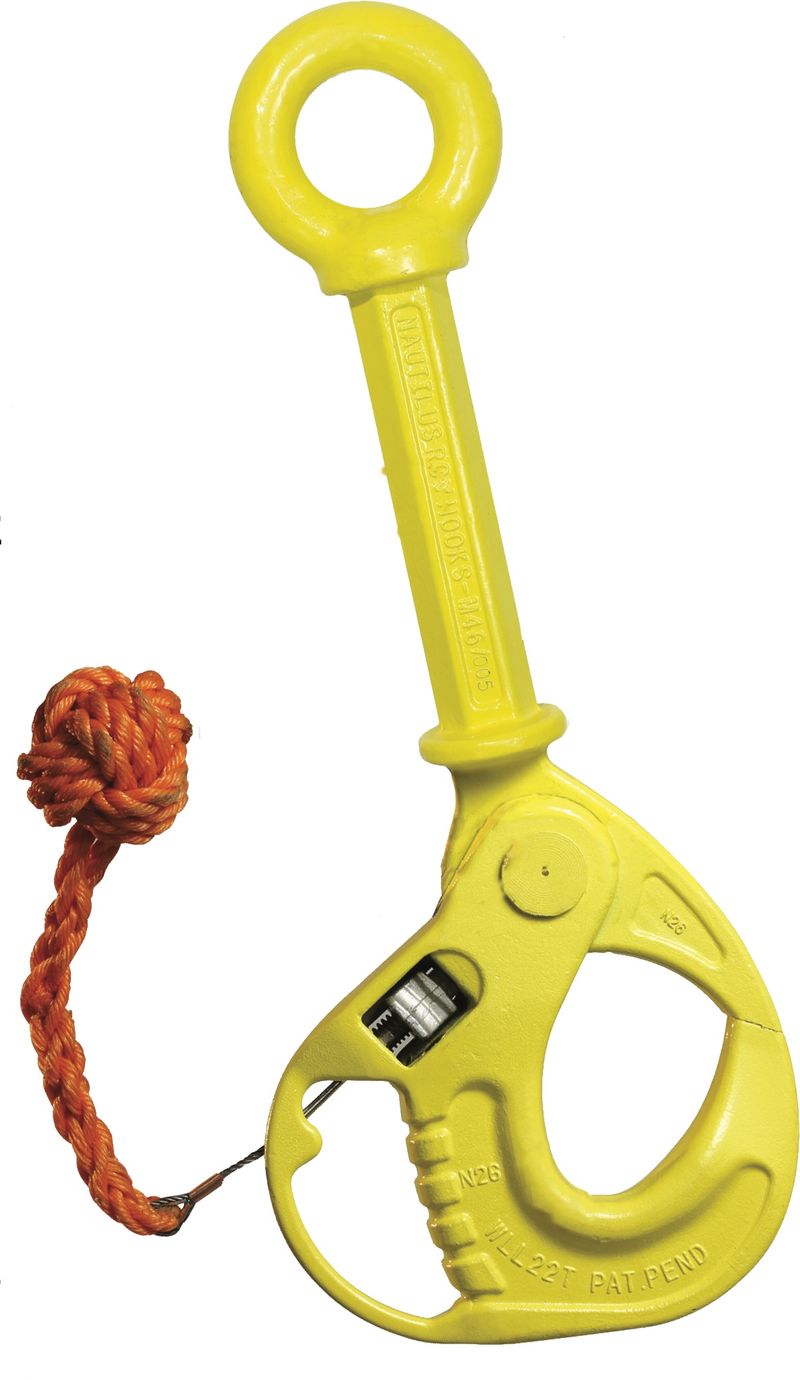

The Nautilus Rigging SubseaHooks NH-ROV22E is a long shank ROV hook for subsea lifting, manufactured by Nautilus Rigging LLP. The hook has a patented positive locking function: it is self-locking under load, and the load remains locked until it is released by ROV. The locking arm opens outwards to prevent slings fouling behind the latch.
The Nautilus NH-ROV22E has a working load limit (WLL) of 22 te with a 4:1 safety factor. Each hook is individually proof tested to 2.5 × WLL and is fatigue rated to 20,000 cycles at 1.5 × WLL. Nautilus subsea hooks are manufactured to BS/EN 1677-1+A1/2008 and are supplied with the manufacturer's test certification. The design is covered by US patent number US 8,240,727 B2.
The Nautilus NH-ROV22E hook weighs 21.0 kg, with stated dimensions of 684 × 264 × 62 (L × W × H). The datasheet also lists two activation wires: the NH-PW200 primary activation wire (WLL 1200 kg), a bespoke 316 SS stud/wire assembly, and the NH-SW230 secondary activation wire (WLL 900 kg), a 230 mm × 3 mm SS wire with ferrules.
