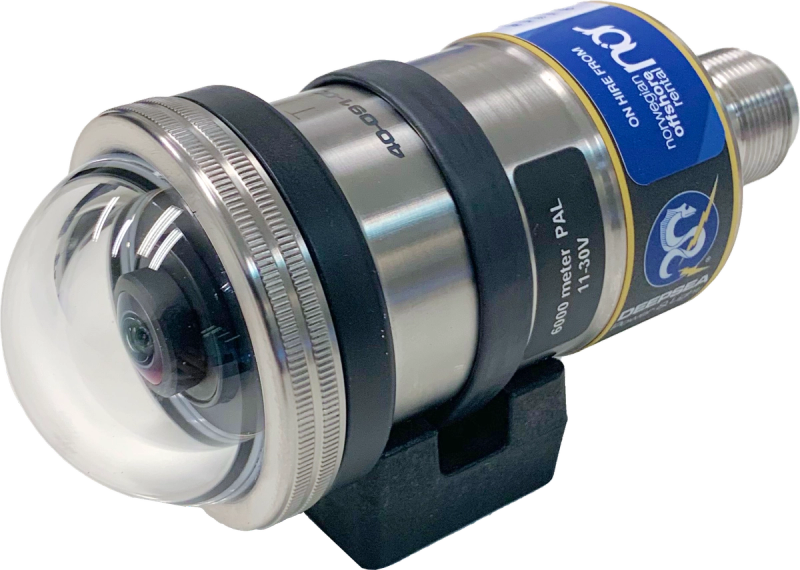

Super Wide-i SeaCam

Wide Angle Subsea Colour Camera

Description

The Super Wide-i SeaCam SCSC-4060 Color is a wide angle subsea colour video camera with a 150° horizontal field of view and a 6000 m depth rating. The datasheet states that the camera has no vignetting.

The Super Wide-i SeaCam uses a 1.4 mm, F/2.2 fixed-focus lens with depth of field from 25 mm to infinity. The PAL sensor resolution is 795 H × 596 V, measured resolution is 450 TVL (centre) and faceplate illumination is 0.1 lux at F/1.2. Video output is composite, 1.0 Vp-p, 75 ohm, unbalanced, in PAL format.

The camera housing is 6Al-4V titanium with an optically polished glass port. The Super Wide-i SeaCam measures 58.4 mm outer diameter and 104.9 mm overall length without connector, and weighs 0.47 kg in air and 0.23 kg in water. Power is 11–30 VDC at 145 mA, and the operational temperature is −10 to 40 °C.
