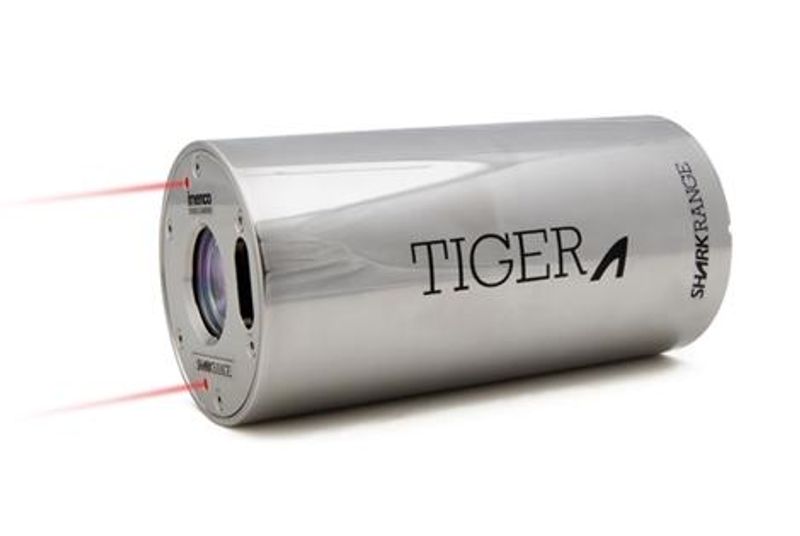

Tiger Shark Camera – Digital Stills

Description

The Tiger Shark Camera is a subsea digital stills camera based on the SDS 1210 stills camera. The Tiger Shark Camera can be used on an ROV or as a stand-alone camera for research purposes, with Ethernet control and image download.

The Tiger Shark Camera has a resolution of 14 mpx and a 5.0–30 mm / F2.8–5.9 lens with 4 x zoom and auto focus. It has an integrated flash with a range of 1–3 m, an external flash connector (MCBH4F) and a red dot laser for reference scaling.

The housing is Duplex Stainless Steel, with Aluminium or Titanium by request (optional). The Tiger Shark Camera is 83 mm in diameter and 169 mm long excluding connector, weighs 3.1 kg in air and 2.2 kg in water, and is depth rated to 6000 msw. Power is 24 V, 12–37 W, and the standard connector is Mini Burton 5506-1508 with RS 232/485 control. The camera can be supplied with a timer function and battery pack (optional).

Technical Specification

Camera type

Digital stills camera, based on the SDS 1210 stills camera

Resolution

14 mpx

Lens

5.0–30 mm / F2.8–5.9

Focal length

4 x Zoom

Focus

Auto

Lights

Integrated flash (1–3 m); external flash connector MCBH4F

Laser

Red dot laser for reference scaling

Control and download

Ethernet

Housing

Duplex Stainless Steel

Housing (optional)

Aluminium or Titanium by request

Diameter

83 mm

Length excluding connector

169 mm

Weight in air

3.1 kg

Weight in water

2.2 kg

Depth rating

6000 msw

Power

24 V, 12–37 W

Standard connector

Mini Burton 5506-1508, RS 232/485 control

Timer function and battery pack

Available (optional)

Applications

ROV use or stand-alone camera for research purposes
