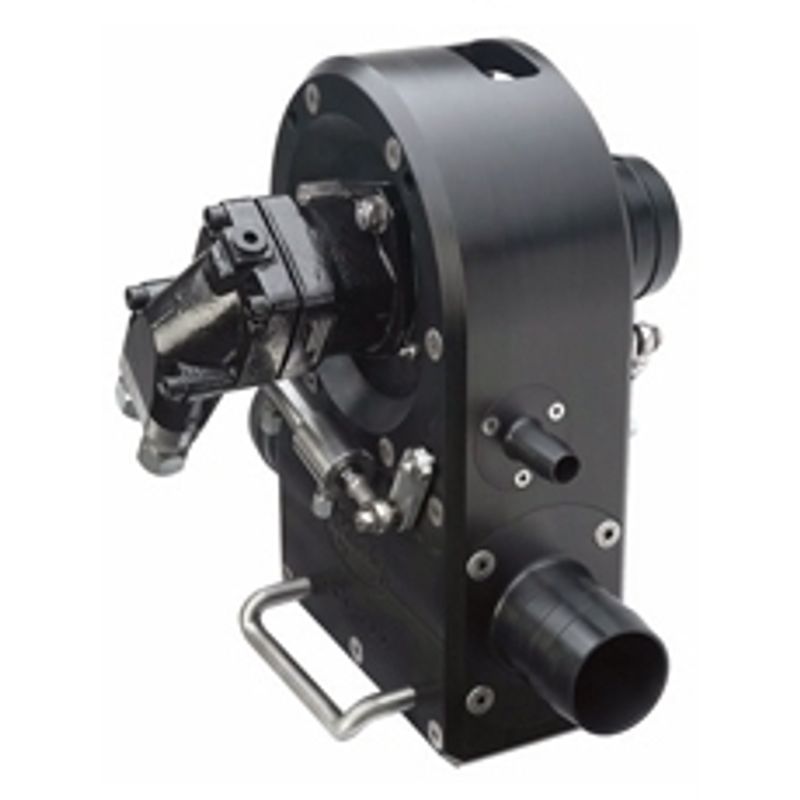

Tritech Super ZipJet
ROV Excavation and Jetting System
Description
The Tritech Super ZipJet is an excavation and jetting system for work class ROVs. It is designed to pump mud, sand, gravel, drill cuttings and shale without risk of blockage. A heavy-duty cylinder reverses the flow at the nozzle to eject any object that may be causing an obstruction, and a second cylinder operates a diverter valve to provide a direct jet that breaks up heavy and cohesive seabed mud.
The Tritech Super ZipJet runs on a hydraulic input of 150–220 bar at 40–60 litre/min. Typical suction flow is 500–1000 litres/min, the solid removal rate is 5–10 tonnes/hour, and typical jetting performance is 1000 litres/min @ 2 bar.
The Super ZipJet has a modular pump core that can be removed for in-field maintenance, suction and jetting aligned for hose management, and multiple mounting and handling configurations. It uses a 25 mm ID jetting hose, a 100 mm inlet, a 100 mm discharge hose diameter and a 75 mm ID suction hose diameter. The unit weighs 25 kg in air and 11 kg in water and is made from Nylacast and UMMWPE.
