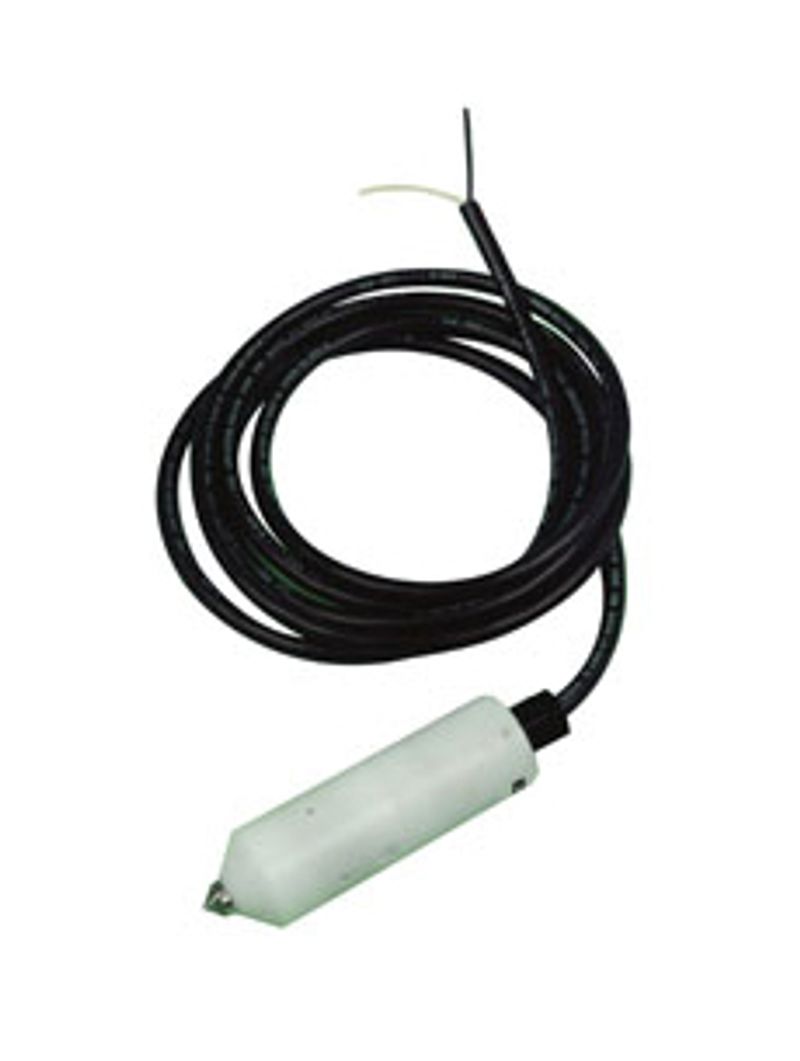

UCP1A Contact Probe

Cathodic Protection Contact Probe

Description

The Buckleys UCP1A Contact Probe (product code H4) is an instrument for underwater cathodic protection potential measurements, designed for use with manned or remotely operated vehicles (ROVs). When the stainless steel probe tip makes contact with the surface under test, the resulting voltage can be read on a suitable high impedance or digital voltmeter.

The UCP1A uses a silver/silver chloride screw-in half cell with an output of ≈ +250 mV vs SHE, a temperature coefficient of −0.6 mV per °C, a temperature range of 0–30 °C and a working life of 1 to 2 years. The unit is designed for use with a remote voltmeter with a minimum load impedance of > 10 MΩ.

The Buckleys UCP1A has a DELRIN body and a replaceable stainless steel (316) probe tip (ref. H14), and can be gripped in a manipulator arm. It measures 126 mm × 39 mm diameter, weighs 0.5 kg and has a depth of operation of 700 m +. Each probe comes with 3 m of underwater cable (9 mm) and a Certificate of Inspection and Conformity. Listed applications include production and drilling platforms, ships' hulls, jetties and other marine works.
