Vector V200

Description

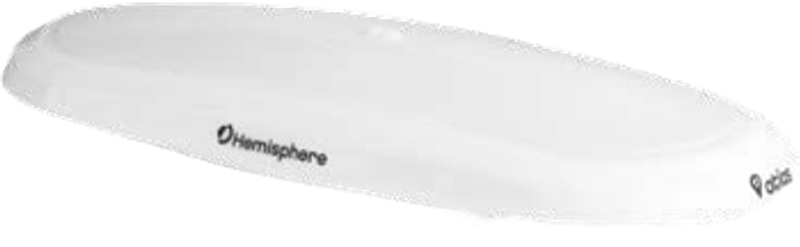

The Hemisphere Vector V200 is a GNSS smart antenna and heading compass that provides heading, position, heave, roll and pitch. It tracks GPS, GLONASS, Galileo and BeiDou on L1, with QZSS support subject to firmware availability and activation. The system supports SBAS and Atlas L-band corrections.

Heading accuracy is 1.5° RMS as standard and 0.75° RMS as an option. Position accuracy is 1.2 m RMS autonomous, 0.3 m with SBAS and 0.5 m with Atlas (optional). An integrated gyro and tilt sensors give fast start-up and keep heading updates during short satellite outages. The update rate is 10 Hz, or 20 Hz as an option.

The V200 is 34.8 cm long, weighs 0.75 kg without mount and mounts on a flat surface or pole. It runs on 6–36 VDC with 3.2–3.6 W typical draw, outputs NMEA 2000 or NMEA 0183 and is protected to IPx6/IPx7/IPx9.

Technical Specification

Receiver

Vector GNSS L1, 424 channels

Signals

GPS, GLONASS, BeiDou, Galileo and Atlas; QZSS subject to firmware support and activation

Differential options

SBAS; Atlas L-band (subscription, optional)

Heading accuracy (RMS)

1.5° standard; 0.75° (optional)

Pitch/roll accuracy (RMS)

1.5°

Heave accuracy (RMS)

30 cm (DGPS or Atlas)

Position accuracy (RMS)

Autonomous 1.2 m; SBAS 0.3 m; Atlas 0.5 m (optional)

Update rate

10 Hz standard; 20 Hz (optional)

Rate of turn

100°/s maximum

Start times

Cold 60 s; warm 30 s; hot 10 s; heading fix 10 s typical

Timing (1 PPS) accuracy

20 ns

Gyro and tilt sensors

Heading for up to 3 minutes at 1° per minute during loss of GPS; pitch and roll data

L-band receiver

Single channel, 1525–1560 MHz, −130 dBm

Ports

5-pin: NMEA 2000; 12-pin: RS-232, RS-422, 1 PPS

Baud rates

4800–115200

Protocols

NMEA 2000, NMEA 0183, Crescent binary; corrections RTCM SC-104

Input voltage

6–36 VDC, reverse polarity protected

Power consumption

3.2 W (SBAS), 3.6 W (Atlas) typical @ 12 V

Operating temperature

−40–70 °C

Storage temperature

−40–85 °C

Enclosure

IPx6/IPx7/IPx9 (ISO 60529:2013)

Compliance

IEC 60945:2002 (vibration, EMC); EN 301 489-1/-5/-19; EN 303 413

Dimensions (L × W × H)

34.8 × 15.8 × 6.5 cm (no mount)

Weight

0.75 kg without mount; 0.94 kg with mount

Compass safe distance

50 cm
