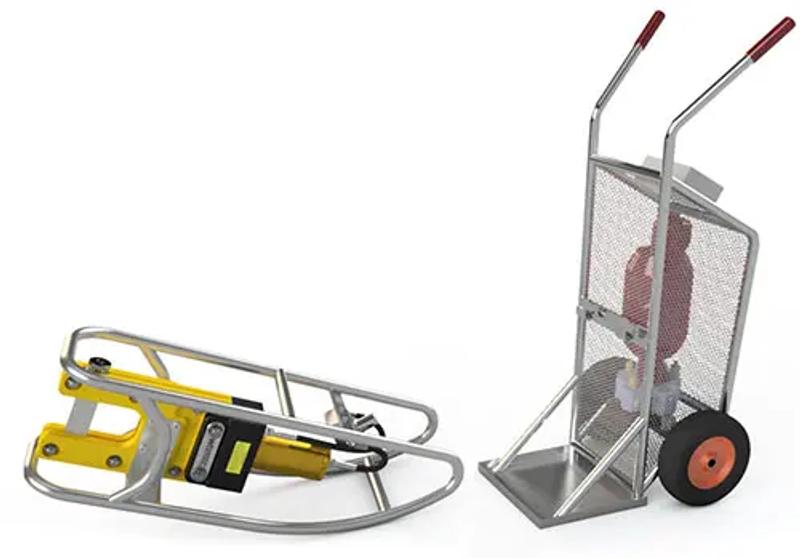

Webtool – Sack Truck Emergency Deck Cutter

Hydraulic Emergency Deck Cutter System

Description

The Webtool Sack Truck Emergency Deck Cutter (Emergency Cutter System AS00055) is an emergency deck cutter intended to cut hoses, umbilicals and ropes if the vessel has an emergency or drift-off. The assembly is made to be moved around the vessel deck and installed on items that need to be cut.

The Emergency Cutter System AS00055 weighs 150 kg in air (excluding oil) and has overall dimensions of 1350 × 685 × 535 mm. The datasheet lists three items: Wire Rope Cutter and frame AS00057 (35 kg, 912 × 307 × 276 mm), Sack Truck Assembly AS00065 (110 kg, 1350 × 685 × 535 mm excluding cables and hoses) and 5 m Hose Assembly AS00070 (5 kg). All item weights are in air, excluding oil.

The cutter weighs 26 kg in air (excluding hydraulic fluid and hoses) and measures 249 × 155 × 711 mm (excluding fittings). It has a double acting cylinder with ⅜″ BSP feed and return ports and a maximum operating pressure of 345 bar (5000 PSI). Swept volume is 0.65 litre on the cut stroke and 0.54 litre on the return stroke.
