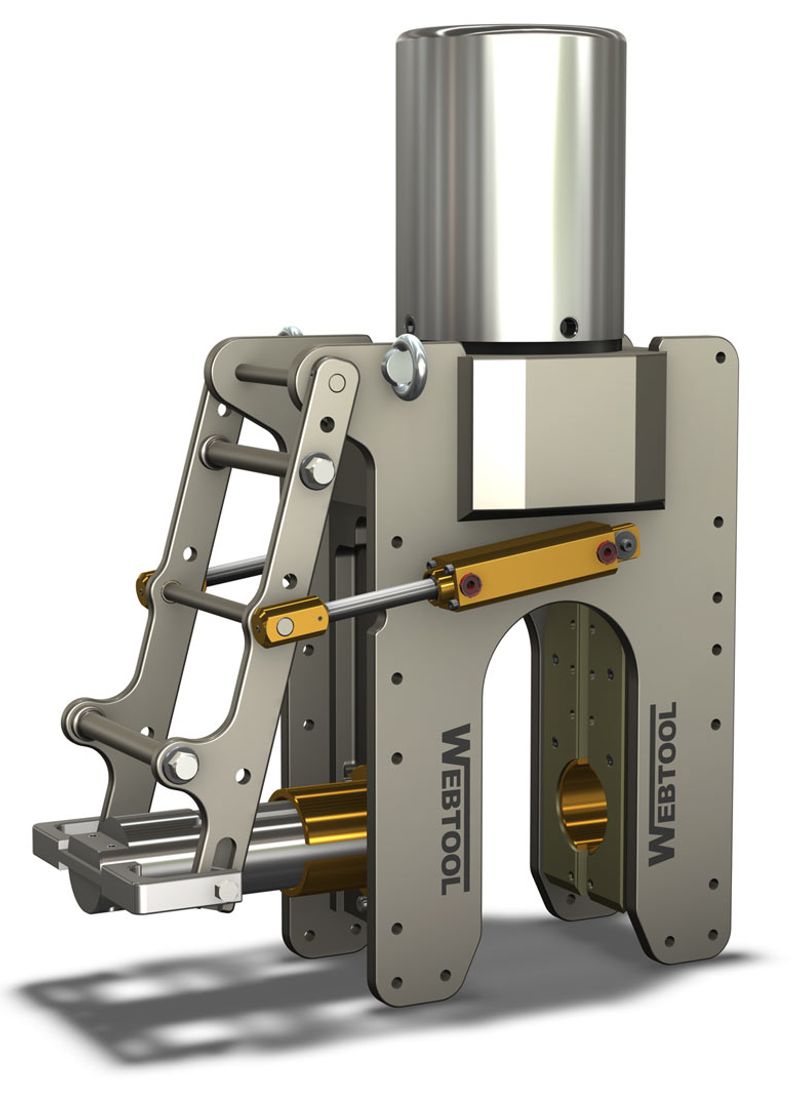

WEBTOOL Wire Cutter 135mm

Description

The Webtool RCV135 Wire Cutter is a hydraulic cutter for rope and cables with large diameters, designed to cut wire rope up to 135 mm diameter. The Webtool RCV135 has a hydraulically operated anvil for ROV deployment.

The capability table for the Webtool RCV135 lists wire rope sizes of 51 mm, 64 mm and 76 mm at grade 2160 N/mm², 102 mm at grade 1960 N/mm², and 115 mm and 127 mm at grade 1770 N/mm². Maximum input pressure is 690 bar to the main cylinder and 210 bar to the anvil. An intensifier is available (optional).

The Webtool RCV135 Wire Cutter weighs 176 kg in air.

Technical Specification

Max wire rope diameter

135 mm

Capacity, 51 mm wire rope

Grade 2160 N/mm²

Capacity, 64 mm wire rope

Grade 2160 N/mm²

Capacity, 76 mm wire rope

Grade 2160 N/mm²

Capacity, 102 mm wire rope

Grade 1960 N/mm²

Capacity, 115 mm wire rope

Grade 1770 N/mm²

Capacity, 127 mm wire rope

Grade 1770 N/mm²

Input pressure, main cylinder

Max 690 bar

Input pressure, anvil

Max 210 bar

Anvil

Hydraulically operated

Weight in air

176 kg

Dimensions (drawing)

794 × 569 × 281 (H × W × D, unit not stated)

Cutting opening (drawing)

150 wide, 322.5 deep (unit not stated)

Intensifier

Available (optional)
