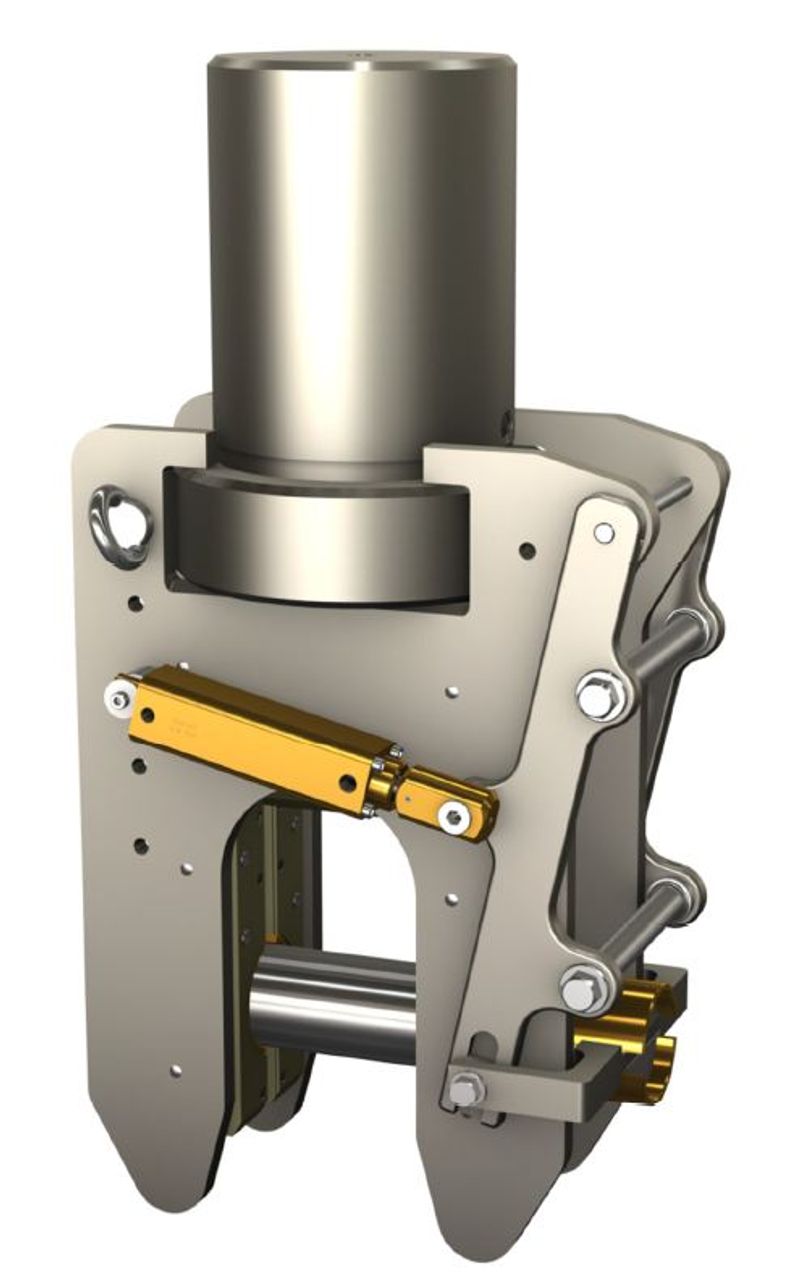

WEBTOOL Wire Rope Cutter 115mm

Description

The WEBTOOL RCV115 Wire Cutter is a cutter for rope and cables with large diameters, designed to cut wire rope up to 115 mm diameter. A hydraulically operated anvil is used for ROV deployment.

The WEBTOOL RCV115 main cylinder takes a maximum input pressure of 690 bar and the anvil a maximum of 210 bar. An intensifier is available as an option.

The WEBTOOL RCV115 is specified for wire rope sizes of 38 mm, 45 mm, 51 mm, 64 mm and 76 mm at grade 2160 N/mm², 102 mm at grade 1960 N/mm² and 115 mm at grade 1770 N/mm².

Technical Specification

Max wire rope diameter

115 mm

Input pressure, main cylinder

Max 690 bar

Input pressure, anvil

Max 210 bar

Anvil

Hydraulically operated

Intensifier

Available (optional)

Wire rope 38 mm

Grade 2160 N/mm²

Wire rope 45 mm

Grade 2160 N/mm²

Wire rope 51 mm

Grade 2160 N/mm²

Wire rope 64 mm

Grade 2160 N/mm²

Wire rope 76 mm

Grade 2160 N/mm²

Wire rope 102 mm

Grade 1960 N/mm²

Wire rope 115 mm

Grade 1770 N/mm²
