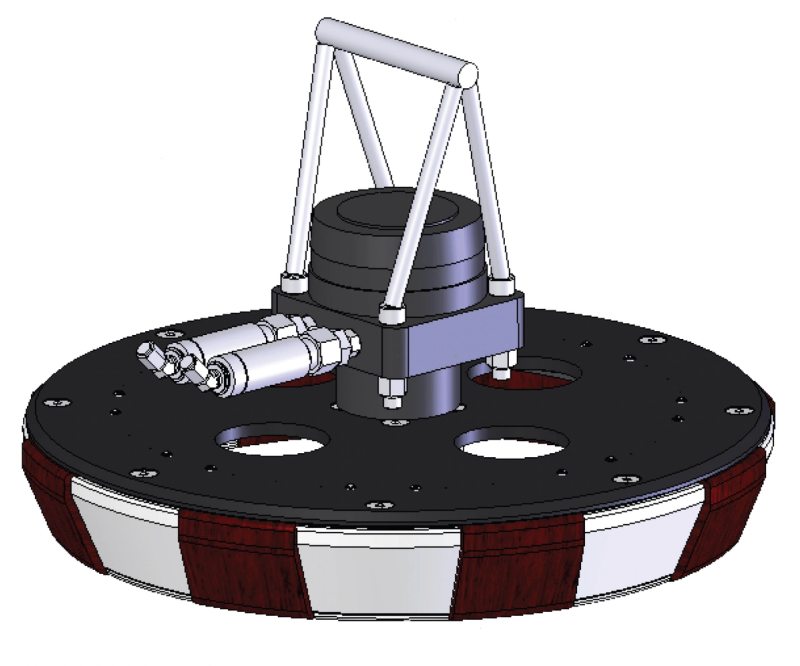

Wellhead Cleaning Tool

Description

The Wellhead Cleaning Tool is a motorised, ROV-powered tool for cleaning the seal surface of wellheads that use AX or VX gaskets. The Wellhead Cleaning Tool suits the 18-3/4" AX/VX wellhead interface. The ROV powers the tool and holds it in position to remove debris.

Input pressure for the Wellhead Cleaning Tool is 138 to 207 bar (2000 to 3000 psi), and input flow is stated as +5.7 lpm (1.5+ GPM). Flow regulator valves limit the rotation speed. Cleaning depth is approximately 1-7/8" (48 mm).

The Wellhead Cleaning Tool is built in aluminium, UHMW/HDPE and stainless steel, with replaceable plastic abrasive scrubbing pads and a stainless steel handle. It weighs 24 kg (52 lbs) dry and 16 kg (35 lbs) wet and is supplied in an offshore-suitable transit case.

Technical Specification

Application

Cleaning the seal surface of wellheads with AX or VX gaskets

To suit

18-3/4" AX/VX wellhead interface

Power

Powered by ROV

Input pressure

138–207 bar (2000–3000 psi)

Input flow

+5.7 lpm (1.5+ GPM)

Speed control

Flow regulator valves limit rotation speed

Cleaning depth

Approximately 1-7/8" (48 mm)

Materials

Aluminium, UHMW/HDPE, stainless steel, plastic abrasive pads

Handle

Stainless steel

Dry weight

24 kg (52 lbs)

Wet weight

16 kg (35 lbs)

Shipping

Supplied in offshore-suitable transit case
