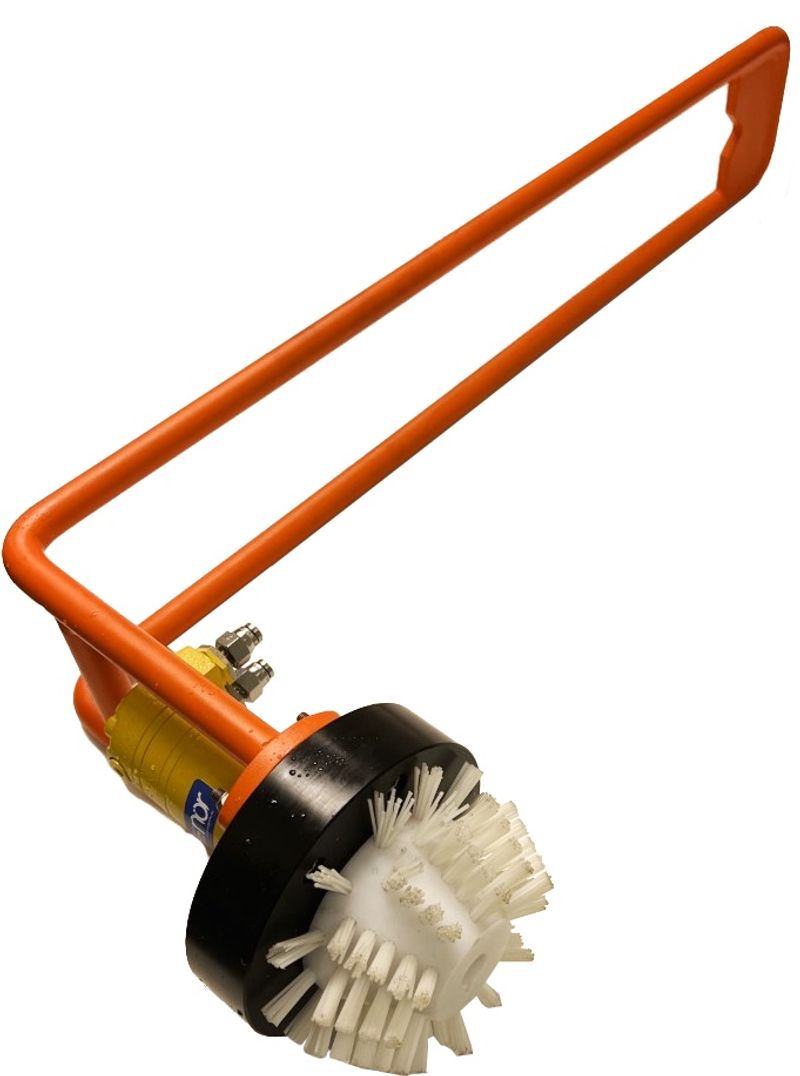

Wellhead Cleaning Tool 90mm

Description

The Wellhead Cleaning Tool 90mm is a purpose built hydraulic cleaning tool from NOR for 90 mm wellhead sealing surfaces. It is made for cleaning seal surfaces before installing subsea structures and interfaces, and it can be used with acid for cleaning.

The Wellhead Cleaning Tool 90mm operates at a maximum hydraulic pressure of 100 bar and a flow of 15 LPM, through 2 × JIC 4 connections complete with 4 m hoses. The cleaning tool weighs 5 kg, is 210 mm long without handle and 90 mm wide. The cleaning brush measures 90 mm without brushes and 140 mm with brushes. Multiple handle lengths are available.

Technical Specification

Application

90 mm wellhead sealing surface

Hydraulic pressure

100 bar max.

Hydraulic flow

15 LPM

Hydraulic connections

2 × JIC 4 c/w 4 m hoses

Weight

5 kg

Length without handle

210 mm

Width

90 mm

Handle

Multiple handle lengths available

Cleaning medium

Can be used with acid for cleaning

Cleaning brush, without brushes

90 mm

Cleaning brush, with brushes

140 mm
