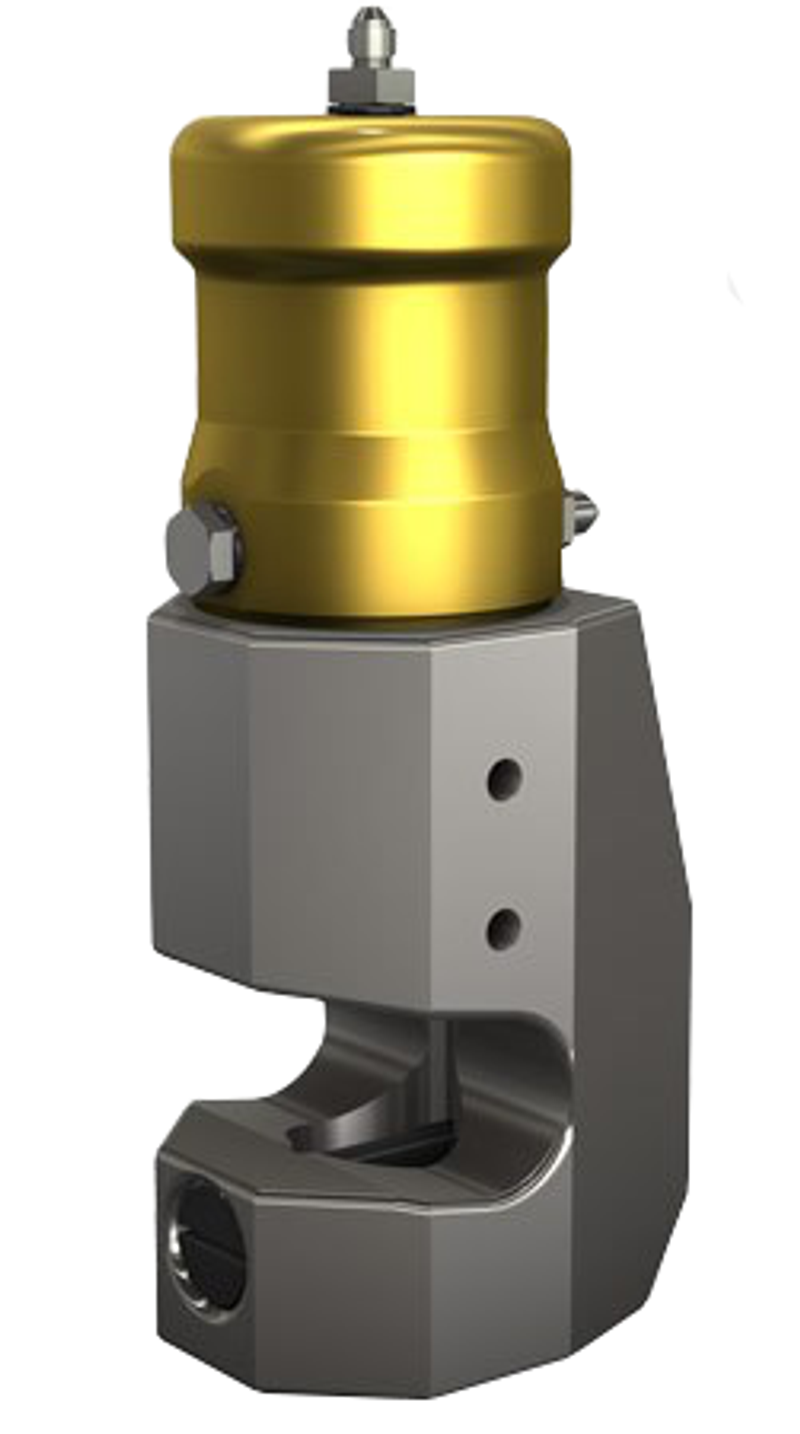

Webtool Wire Rope Cutter 38mm

Description

The Webtool WCOS38(D) Wire Rope Cutter is designed for cutting wire rope up to 38 mm diameter. It has an open-sided design that allows the cutter to be positioned along a rope length, which is useful when cutting in confined spaces.

The Webtool WCOS38(D) operates at 700 bar with a swept volume of 145 cm³ and is supplied with hydraulic return to ensure full retraction of the blade. The capability table lists 13 mm and 19 mm wire rope of 2160 N/mm² grade, 25 mm of 2060 N/mm², 32 mm of 1960 N/mm² and 38 mm of 1770 N/mm² grade.

The WCOS38(D) weighs 20.5 kg. Dimensions A–B–C–D–E, as shown in the datasheet drawing, are 325 mm – 100 mm – 130 mm – 42 mm – 82 mm.

Technical Specification

Model

WCOS38(D)

Wire diameter

38 mm

Wire rope 13 mm

2160 N/mm² grade

Wire rope 19 mm

2160 N/mm² grade

Wire rope 25 mm

2060 N/mm² grade

Wire rope 32 mm

1960 N/mm² grade

Wire rope 38 mm

1770 N/mm² grade

Dimensions (A – B – C – D – E)

325 mm – 100 mm – 130 mm – 42 mm – 82 mm

Weight

20.5 kg

Operating pressure

700 bar

Swept volume

145 cm³

Design

Open sided

Blade return

Hydraulic return
