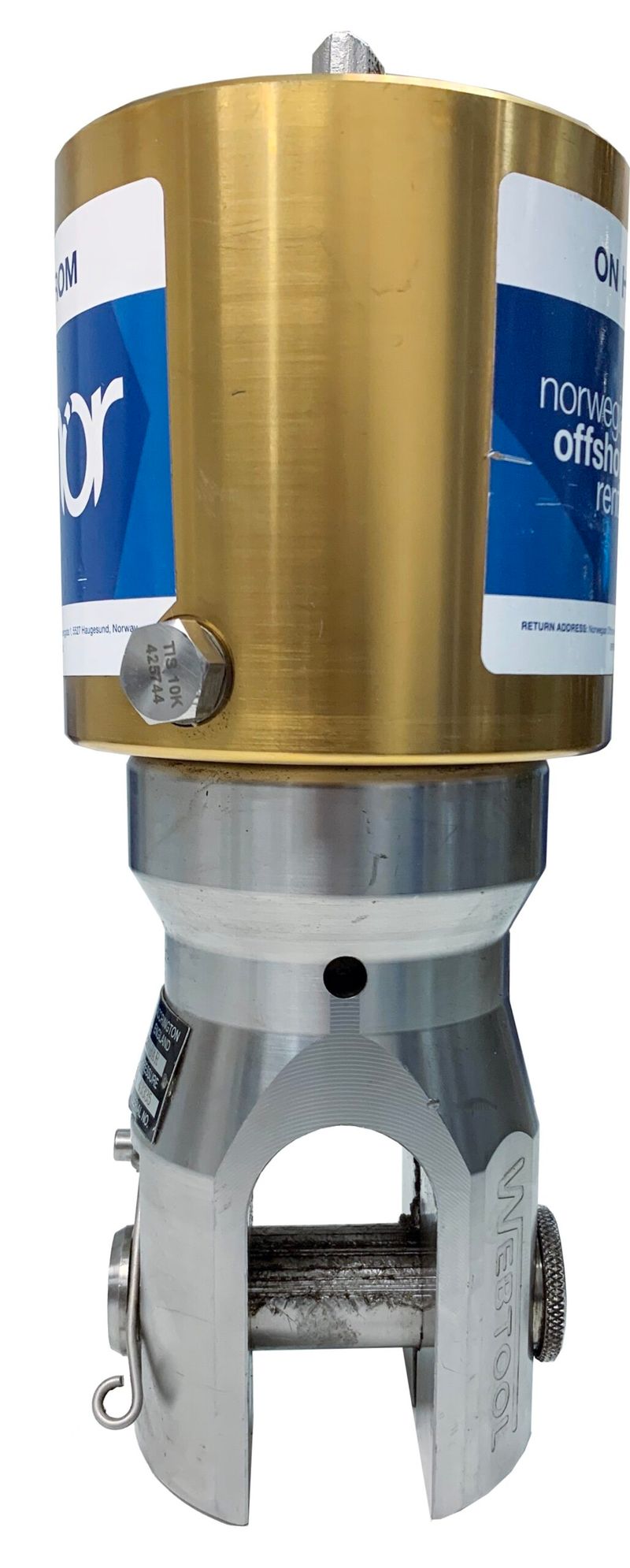

Wire Rope Cutter WCS38DLP

Description

The Webtool WCS38DLP is a hydraulic wire rope cutter with a closed jaw design, designed to cut rope and cables up to 38 mm diameter. The datasheet states that the Webtool WCS38DLP can be used at any water depth.

The Webtool WCS38DLP has a low pressure cylinder with a maximum input pressure of 220 bar, which removes the need for an intensifier panel. The swept volume is 0.5 litres for the cut stroke and 0.4 litres for the return stroke. Approximate weight is 16.5 kg in air and 14 kg in water.

The capabilities table for the Webtool WCS38DLP lists wire rope sizes of 13 mm and 19 mm (grade 2160 N/mm²), 25 mm (grade 2060 N/mm²), 32 mm (grade 1960 N/mm²) and 38 mm (grade 1770 N/mm²).

Technical Specification

Model

WCS38DLP

Wire diameter (max.)

38 mm

Jaw design

Closed jaw

Cylinder

Low pressure (no intensifier panel required)

Input pressure

220 bar maximum

Swept volume, cut stroke

0.5 litres

Swept volume, return stroke

0.4 litres

Weight in air / water (approx.)

16.5 kg / 14 kg

Water depth

Can be used at any water depth

Dimensions (drawing)

Ø130 × 303 height, 102 width (unit not stated)

Jaw opening (drawing)

42 × 42 (unit not stated)

Capability, 13 mm wire rope

Grade 2160 N/mm²

Capability, 19 mm wire rope

Grade 2160 N/mm²

Capability, 25 mm wire rope

Grade 2060 N/mm²

Capability, 32 mm wire rope

Grade 1960 N/mm²

Capability, 38 mm wire rope

Grade 1770 N/mm²
