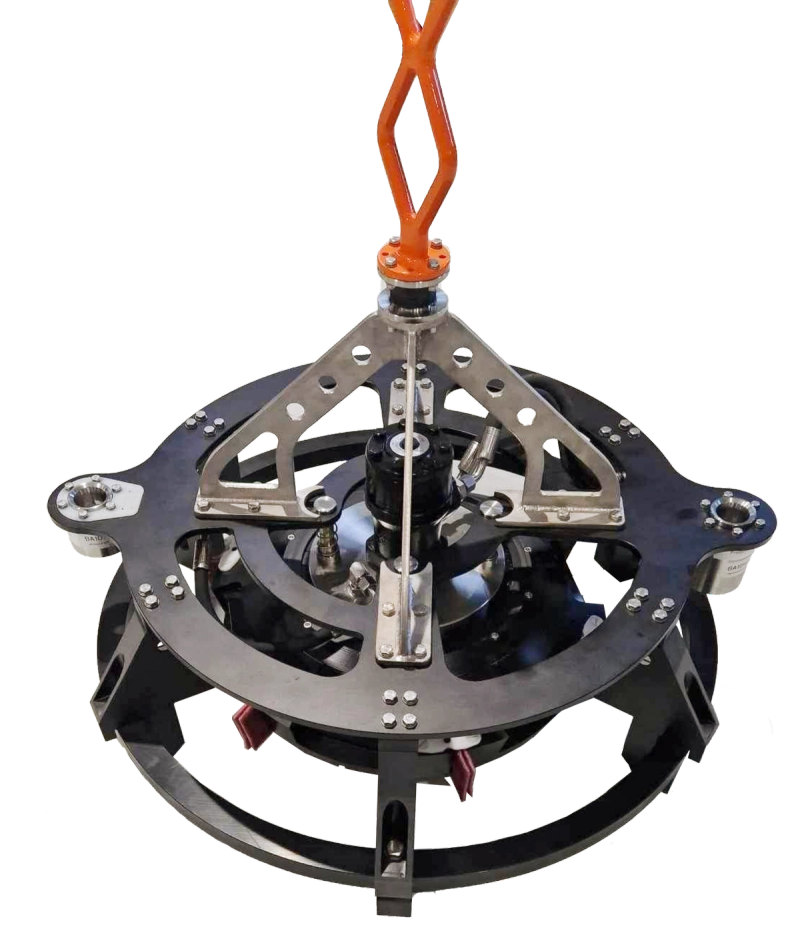

XT-TOP 18-3/4″ CLEANING TOOL

Description

The XT-TOP 18-3/4″ Cleaning Tool is an ROV handled tool for cleaning XT-TOP 18-3/4″ wellhead seal surfaces. It is designed for use on an 18-3/4″ wellhead with or without tubing hanger installed. The XT-TOP 18-3/4″ Cleaning Tool consists of a main frame with a hydraulic driven cleaning disc and is handled by ROV manipulator.

Hydraulic supply and control of the XT-TOP 18-3/4″ Cleaning Tool are provided through the ROV system. When hydraulic system pressure is supplied to the hydraulic motor, the cleaning disc starts to turn. The tool requires a flow of 7 LPM at a working pressure of 110 bar and a maximum pressure of 140 bar, through a dual port hot stab with 3/8″ BSP connections.

The complete arrangement of the XT-TOP 18-3/4″ Cleaning Tool measures 847 × 869 × 810 mm (L × W × H) and weighs 61 kg in air and 38 kg submerged. The cleaning disc has a stroke of 0–43 mm. The tool can be connected to an acid injecting system (optional).

Technical Specification

Application

Cleaning of XT-TOP 18-3/4″ wellhead seal surfaces

Wellhead size

18-3/4″, with or without tubing hanger installed

Construction

Main frame with hydraulic driven cleaning disc

Handling

ROV manipulator

Hydraulic supply and control

Through the ROV system

Dimensions, complete arrangement (L × W × H)

847 × 869 × 810 mm

Cleaning disc stroke

0–43 mm

Weight in air (complete arrangement)

61 kg

Submerged weight (complete arrangement)

38 kg

Required flow

7 LPM

Pressure (work/max)

110 / 140 bar

Hydraulic connection

Hot stab dual port, 3/8″ BSP

Acid injection

Connection for acid injecting system (optional)

System reference

GNT Solutions P10825-GNT-R-MA-001
