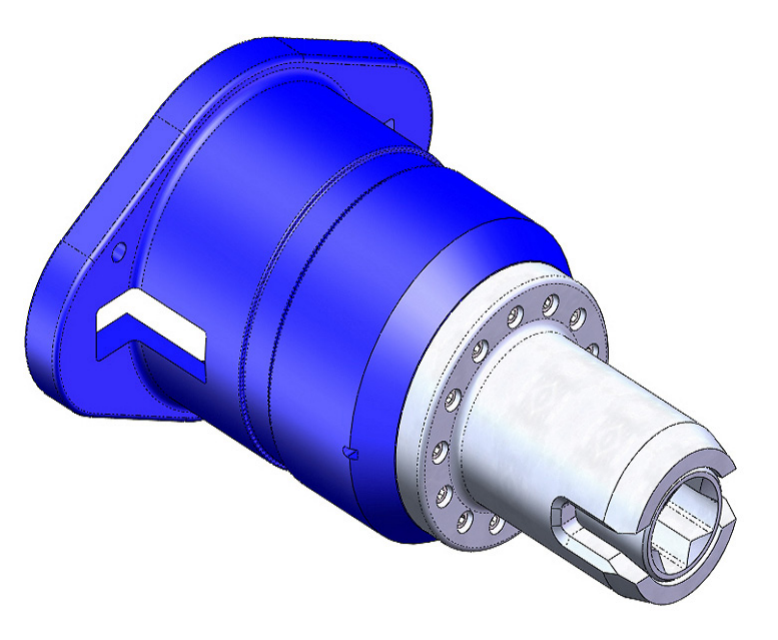

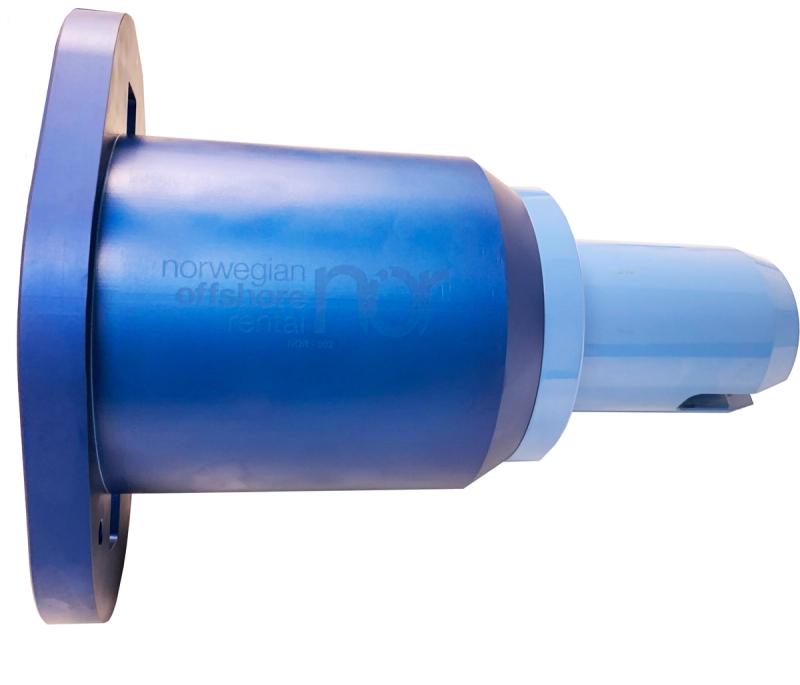

17D to 17H Torque Tool Adapter

Description

The 17D to 17H Torque Tool Adapter is a subsea torque tool adapter with an ISO 13628-8 Class 4 female bucket and an API 17H male interface with a 35 mm AF square. The female interface is stated as ISO 13628-8 fig 18 Class 1–4, and the male interface as ISO 13628-8 High Torque.

The 17D to 17H torque tool adapter has a maximum torque of 2,700 Nm (2,000 ft lbs). It is supplied with 900 Nm and 2,700 Nm shear pins and is delivered in an offshore transit case.

Technical Specification

Female interface

ISO 13628-8 fig 18 Class 1–4 (Class 4 female bucket)

Male interface

ISO 13628-8 High Torque; API 17H, 35 mm AF square

Maximum torque

2,700 Nm (2,000 ft lbs)

Shear pins supplied

900 Nm and 2,700 Nm

Transit case

Offshore transit case (supplied)
