Torque Tools
The ISO 13628-8 Class 5 Surface Verification Unit (API 17D) is used to give pre-dive surface confirmation of the torque toolcalibration. It consists of a standard ISO class 5 torque reaction bucket with sturdy base and built in torque sensor. The unit comes complete with USB cable to connect to the PSS Torque Tool Control System for Auto Calibration.
Torque Tools

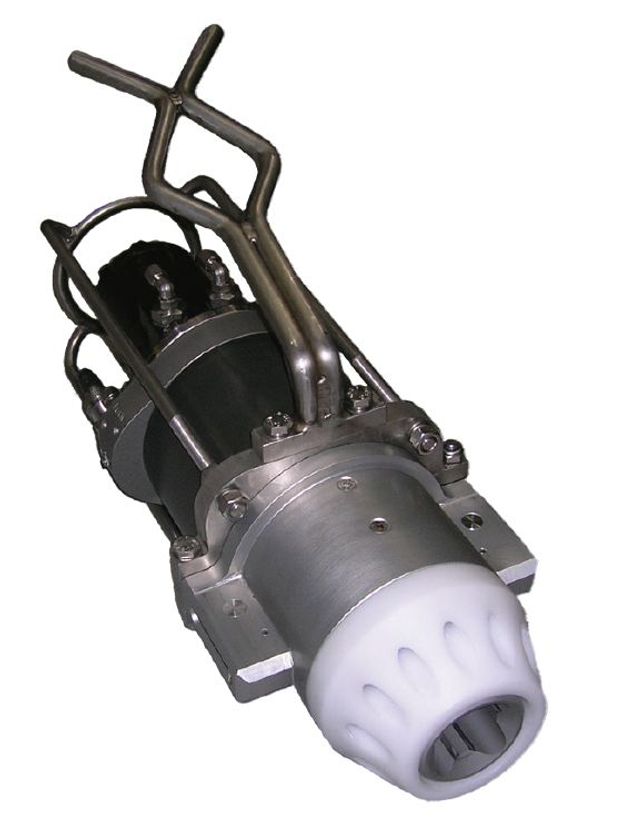

The Torque Tool Class 1-4 (API 17D) has been specifically developed to provide the highest level of performance. It has integral torque and turns counting sensors for closed loop control. The Torque Tool Class 1-4 conforms to the ISO 13628-8 & API 17D Class 1-4 bucket interface used extensively in the subsea industry for valve overrides operated by ROV. The Torque Tool Class 1-4 (API 17D) has latching wings allowing the tool to hold on to the interface. The latching wings are hydraulically driven forward and spring retracted. Thus in the case of a loss of hydraulic power the wings will release. The tool uses a high specification drive motor for consistent torque output characteristics, even if used with direct hydraulic pressure control without the feedback sensor. The motor shares casing oil with the gearbox therefore avoiding the need for a separate compensator. Note that for applying torques less than 108Nm (80 ft lbs) the class 1&2 tool is recomended
Torque Tools

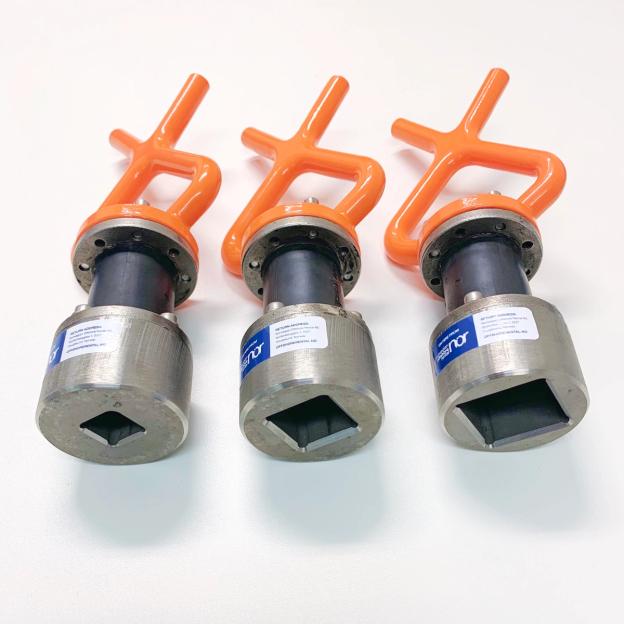

The tool is used to operate ISO Class 1, 2, and 4 interfaces without the use of a torque tool. The tool utilizes the rotate function on the manipulator to generate the required torque.
Torque Tools

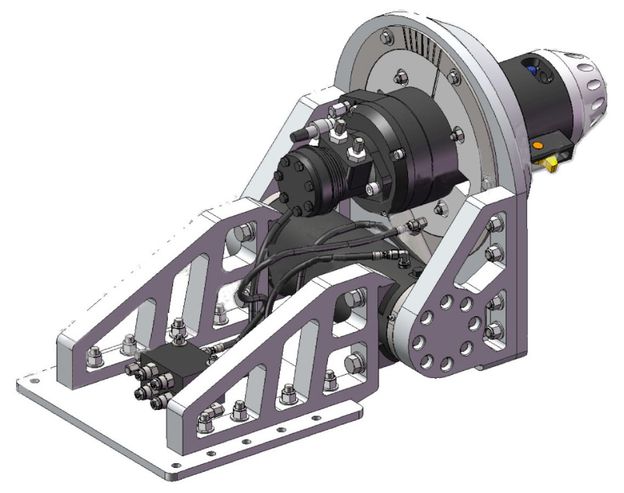

The Flying Lead Orientation Tool (FLOT) is designed to operate in conjunction with a torque tool and is used to orientate and guide flying leads into the stab plate connections. The FLOT tool is designed to take the FORUM Class 1-4 torque tool, but can easily accommodate similar tools from other manufacturers. A rotary actuator allows a pitch alignment of plus 60 or minus 90 degrees with a load of up to 250kg attached. The Flying Lead Orientation Tool (FLOT) is also equipped with a roll alignment function giving a rotation of plus or minus 15 degrees. The Flying Lead Orientation Tool (FLOT)l is compact and the tool mounting base is supplied with a selection of mounting holes for mounting within the forward structure of the ROV. The pitch and roll actuators are controlled from the ROV’s spare directional control valves.
Torque Tools
The Class 6-7 Verification Unit is used to give pre-dive surface confirmation of the torque tool calibration. It consists of a standard ISO class 6-7 torque reaction bucket with sturdy base and built in torque sensor. The unit comes complete with USB cable to connect to the FORUM Torque Tool Control System for Auto Calibration. The ISO standard is unclear on bucket depth so it is best to check detail drawings before purchase. The unit can be used up to 20kNm and has adaptor for both Class 6 and Class 7 tools.
Torque Tools

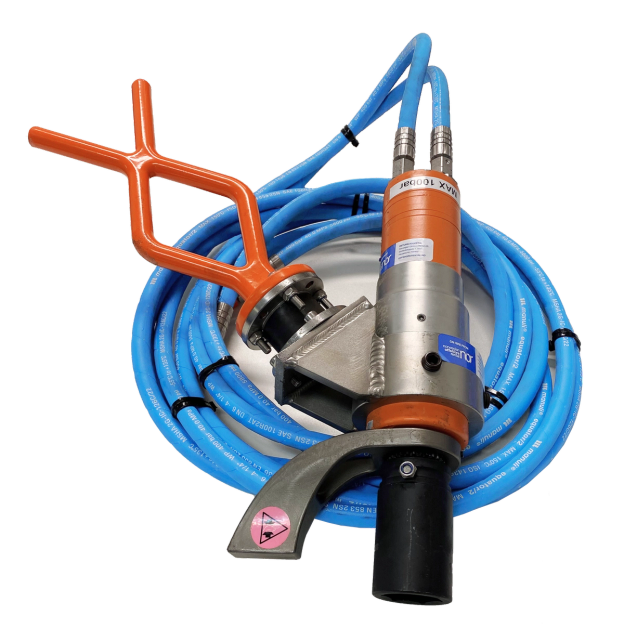

This ROV-operated torque tool can continuously rotate with a lot of force. It has a fully adjustable torque, and can rotate both ways with high precision and speed. The Syclone 2 Torque Tool uses a standard reaction arm or a custom-made reaction arm. 3D assembly available.
Torque Tools

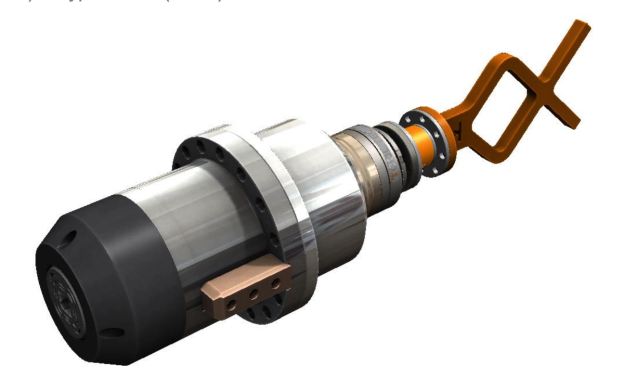

The Manual Torque Multiplier Tool is designed to allow ROV manipulator operation of API 17D / ISO 13628-8 Class 1-4 rotary valve interfaces. The tool features a torque multiplication stage that increases the manipulators wrist torque. beyond its typical output, with two options available for increased torque output. Also, by removal of the torque multiplier stage completely, the tool can be readily reconfigured to operate as low torque tool only. he tool features an adjustable torque limiting clutch mechanism, which acts to limit the maximum torque that can be transmitted from the ROV manipulator to the valve interface during an ROV intervention operation. This mitigates against any possibility of over-torque and damage to the valve or valve stem. The end effector is designed so that it is capable of operating Class 1-2, Class 3 or Class 4 valves by way of the smart multi-socket interface. This allows the option for operations to be conducted on these different valve types without the requirement for retrieval to surface for tool reconfiguration. An optional end effector is available to convert the tool to operate type A (flat paddle) or type B & C (T-bar) valve handles.
Torque Tools

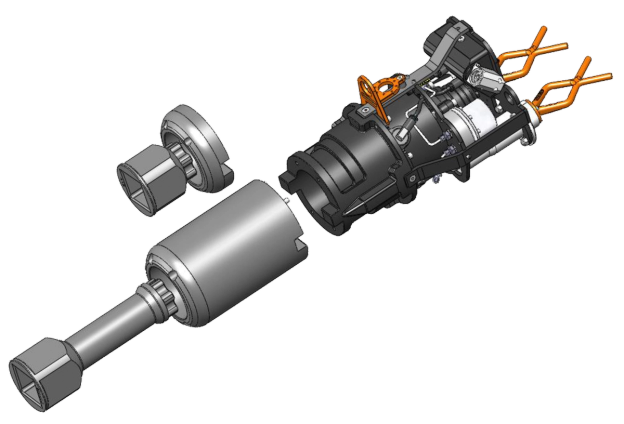

The tool is supplied with two versions interfaces, CL.7 long and short. The two interfaces are easily interchangeable and can be changed out in the field without the need to open the tool and refill the gear oil. The Torque Tool is fitted with an electronic turn counter. Values displayed on an four digit display. Turns are counted to one decimal. The display can be directly connected to an Oceaneering RCU for the reading to be displayed on its control PC. The TT is an ultra compact, lightweight and flexible torque tool to be used with most WROV Systems available. It is based on a 3-stage custom made oil filled Planetary Gear System directly connected to a hydraulic motor. The oil filled gear box is pressure compensated to ambient water pressure using a dedicated integrated pressure compensator.
Torque Tools

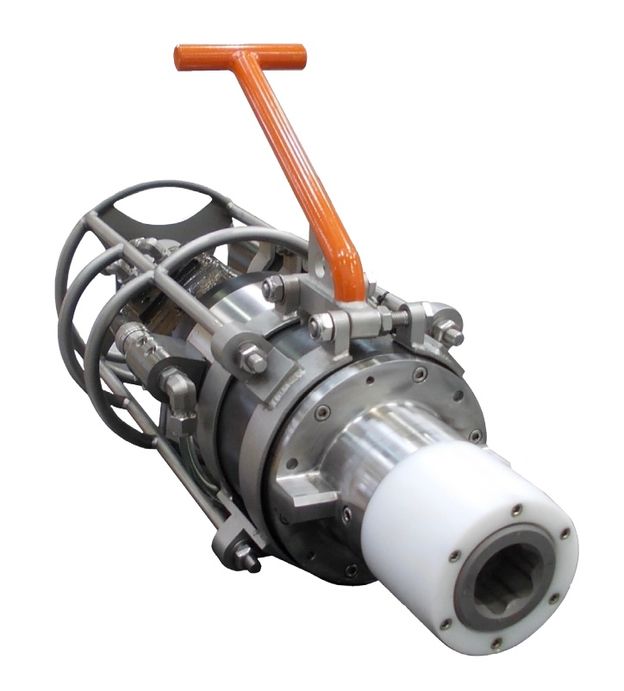

This torque tool has been specifically developed to provide the highest level of performance. It has integral torque and turns count sensors. When matched with a FORUM supplied control manifold, it can provide precise feedback on torque response of any subsea operation. The tool conforms to the Petrobras style interface used in the subsea industry for valve overrides operated by ROV. Most common applications are used with Tool Deployment Units (TDU). It can be configured in three ways to provide 3 torque ranges, with a maximum of 2700Nm
Torque Tools

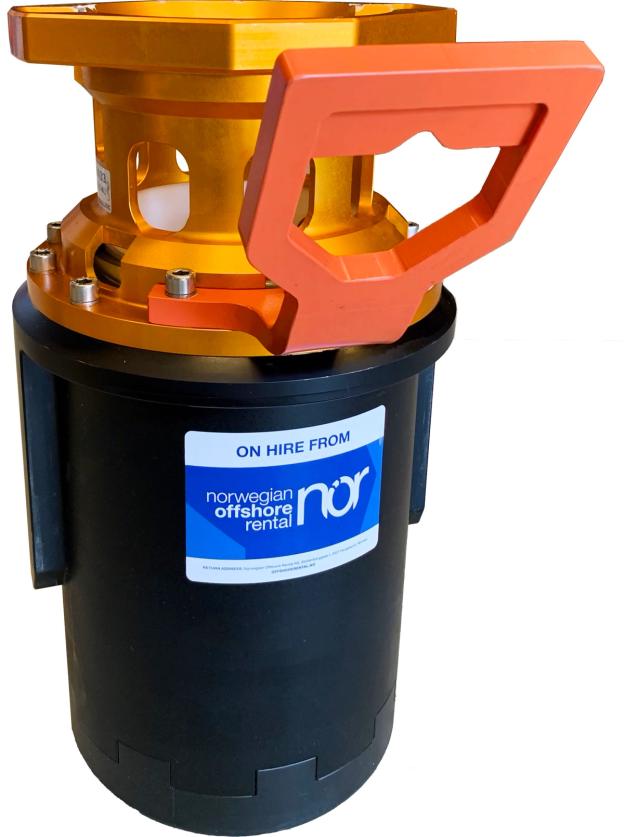

The Class 4-7 Gearbox is designed to enable operation of Class 7 and Class 6 interfaces using a Class 4 torque tool for maximum flexibility at minimum cost. The gearbox can be configured for both short and long Class 7 interface, in addition to Class 6 using a square insert. The gearbox is delivered as a complete kit including required components to adapt the tool to the interfaces as described above
Torque Tools

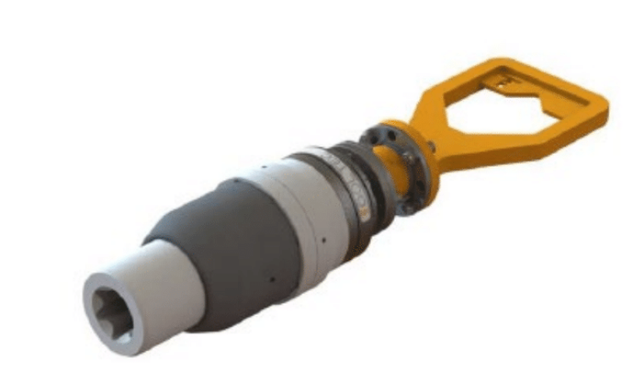

The Manual Torque Tool or Torque Limiter is designed to allow the ROV manipulator operation of Petrobas Specification rotary torque interfaces. The tool limits the torque that can be transmitted from the ROV manipulator to the valve stem during an ROV intervention operation, mitigating against the possibility of over-torqueing and damaging the valve or valve stem. The tool is fitted with an integral, adjustable torque limiting clutch which can be pre-set to any torque from 20 – 200Nm.
Torque Tools

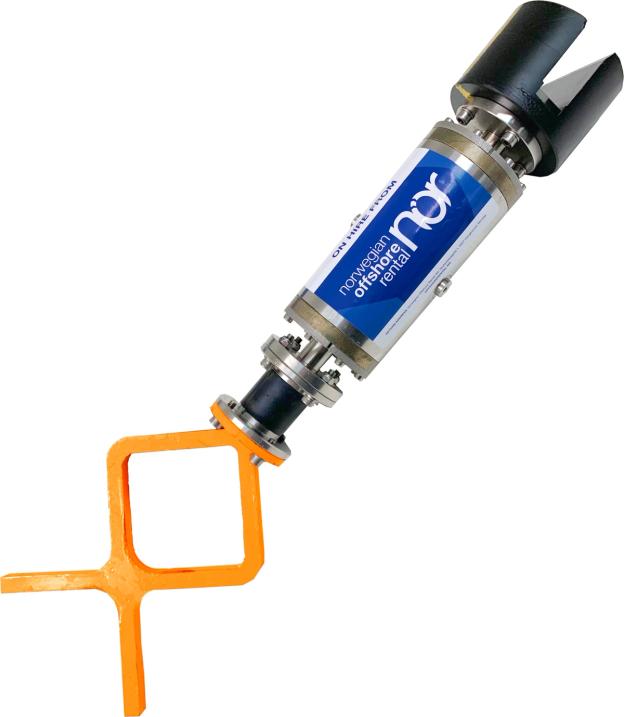

The tool can be adjusted to a maximum output torque setting to avoid damaging subsea valves caused by over torque. The torque limiter is highly accurate for both clockwise and counterclockwise turns.
