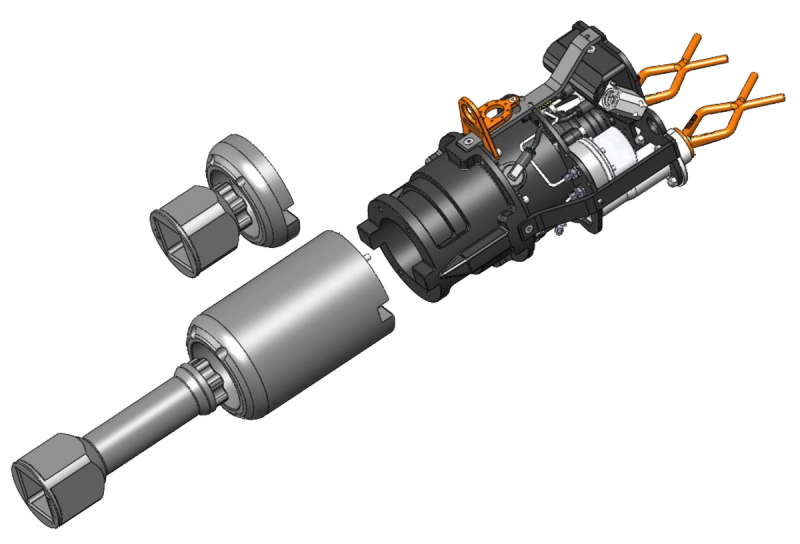

Class 6/7 Torque Tool 40kNm Long & Short interface
WROV Torque Tool, CL.7 Long and Short
Description
The Class 6/7 Torque Tool 40kNm is a hydraulic torque tool for use with WROV systems, supplied with two interfaces: CL.7 long and CL.7 short. The two interfaces can be changed out in the field without opening the tool or refilling the gear oil.
The Class 6/7 Torque Tool is based on a 3-stage custom made oil-filled planetary gear system connected directly to a hydraulic motor. The oil-filled gear box is pressure compensated to ambient water pressure by a dedicated integrated pressure compensator, and the tool has a depth rating of 3000 m. Maximum hydraulic pressure is 210 bar / 3045 psi, maximum hydraulic flow is 30 l/min and minimum required flow is 5 l/min.
The Class 6/7 Torque Tool is fitted with an electronic turn counter that shows turns to one decimal on a four-digit display. The display can be connected directly to an Oceaneering RCU so that the reading is shown on its control PC.
Weight in air is 99 kg with the CL.7 long interface and 88 kg with the CL.7 short interface. Weight in water is 68 kg (CL.7 long) and 65 kg (CL.7 short).
