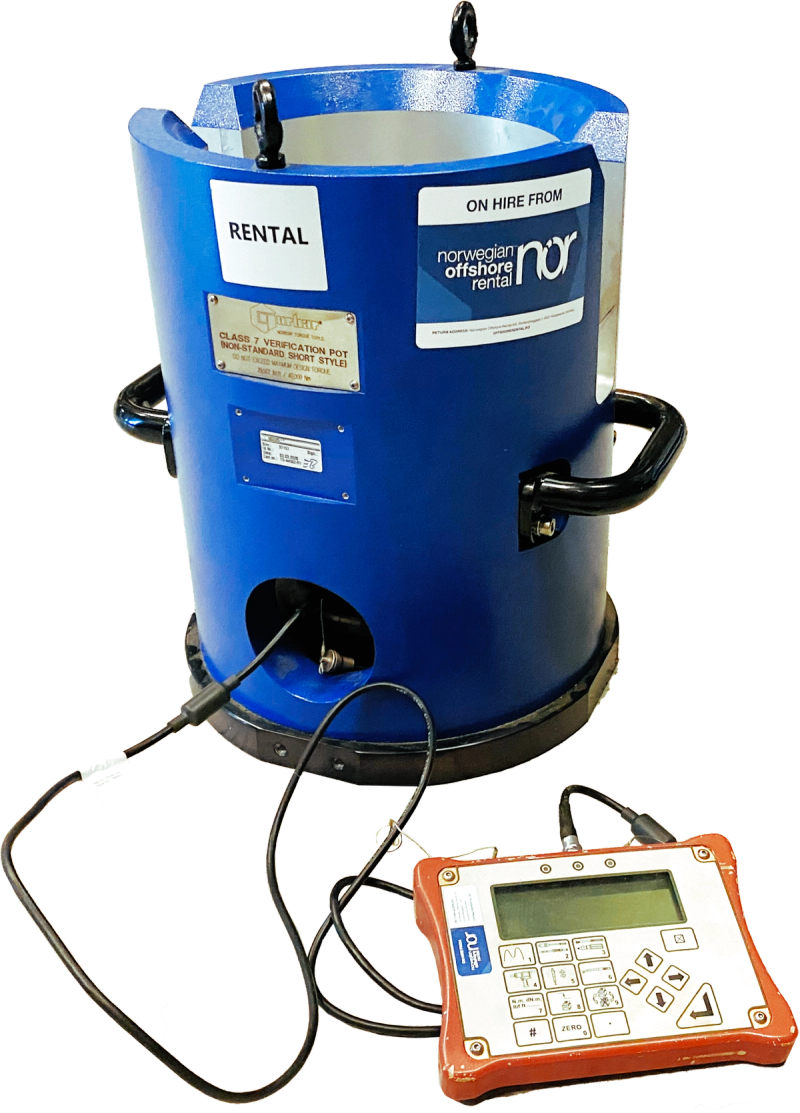

Class 6-7 (40kNm) Verification Unit

Description

The Class 6–7 40 kNm Verification Unit is a torque tool verification unit that gives pre-dive surface confirmation of torque tool calibration. It consists of a standard ISO Class 7 torque reaction bucket on a base with a built-in torque sensor, and it has an adapter for Class 7 tools.

The 40 kNm Verification Unit has a torque range of 4–40 kNm and can be used up to 40 kNm. Bi-directional calibration is provided as standard. Norbar 'SMART' built-in intelligence gives plug and play operation, with limit indication for up to 8 user-defined target values and single or continuous RS-232 serial data output.

The 40 kNm Verification Unit conforms to ISO 13628-8:2002(E) and IP65/67. It has an all-aluminium construction with incorporated lifting handles.

Technical Specification

Application

Pre-dive surface confirmation of torque tool calibration

Torque range

4–40 kNm

Maximum torque

40 kNm

Reaction bucket

Standard ISO Class 7 torque reaction bucket

Tool adapter

Adapter for Class 7 tools

Torque sensor

Built-in

Calibration

Bi-directional (standard)

Electronics

Norbar 'SMART' built-in intelligence for plug & play

Limit indication

Up to 8 user-defined target values

Data output

Single or continuous RS-232 serial

Standard

ISO 13628-8:2002(E)

Ingress protection

IP65/67

Construction

All-aluminium

Handling

Incorporated lifting handles
