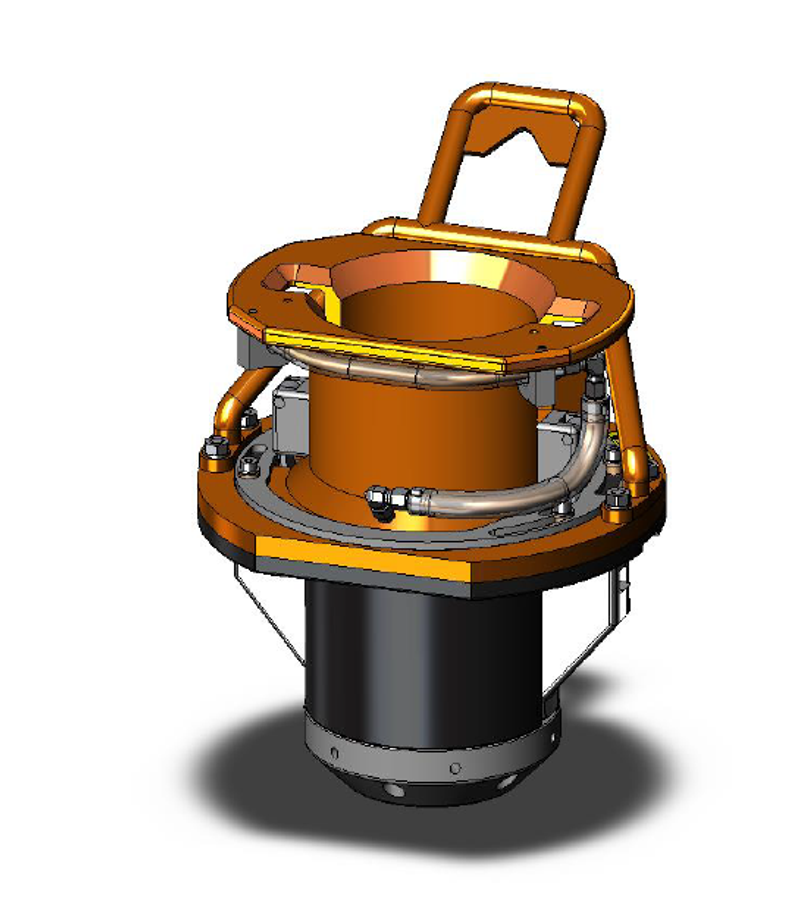

Gear Box Cl.4-5

Description

The Gear Box Cl.4-5 is an ROV gearbox tool that interfaces with an ISO 13628-8 Class 5 receptacle and is equipped with an ISO 13628-8 Class 4 receptacle for external torque input. The Gear Box Cl.4-5 operates in a torque range from 750 Nm up to 7000 Nm.

The Gear Box Cl.4-5 has a gear ratio of 1:3.22, a torque input of 300–1950 Nm and a torque output of 750–7000 Nm. The gearbox holds an oil volume of 300 ml and has a depth rating of 3000 m.

The Gear Box Cl.4-5 measures Ø 340 mm × L 373 mm without the ROV handle and weighs 37 kg in air and 28 kg in water. ROV manipulator interfaces are an ROV handle for tool lifting/handling and latch guide ring handles for operating latches. The transport box measures 800 × 600 × 400 mm, and the complete transport box weighs 47 kg.

Technical Specification

Size (without ROV handle)

Ø 340 mm × L 373 mm

Weight in air / in water

37 kg / 28 kg

Weight, transport box complete

47 kg

Transport box size

800 × 600 × 400 mm

Depth rating

3000 m

Oil volume

300 ml

Gear ratio

1:3.22

Torque input

300–1950 Nm

Torque output

750–7000 Nm

Torque input interface

ISO 13628-8 Class 4

Torque output interface

ISO 13628-8 Class 5

ROV manipulator interface

ROV handle (for tool lifting/handling); latch guide ring handles (for operating latches)
