Hydraulic Compensator 6.3L

Spring Activated Diaphragm Compensator

Description

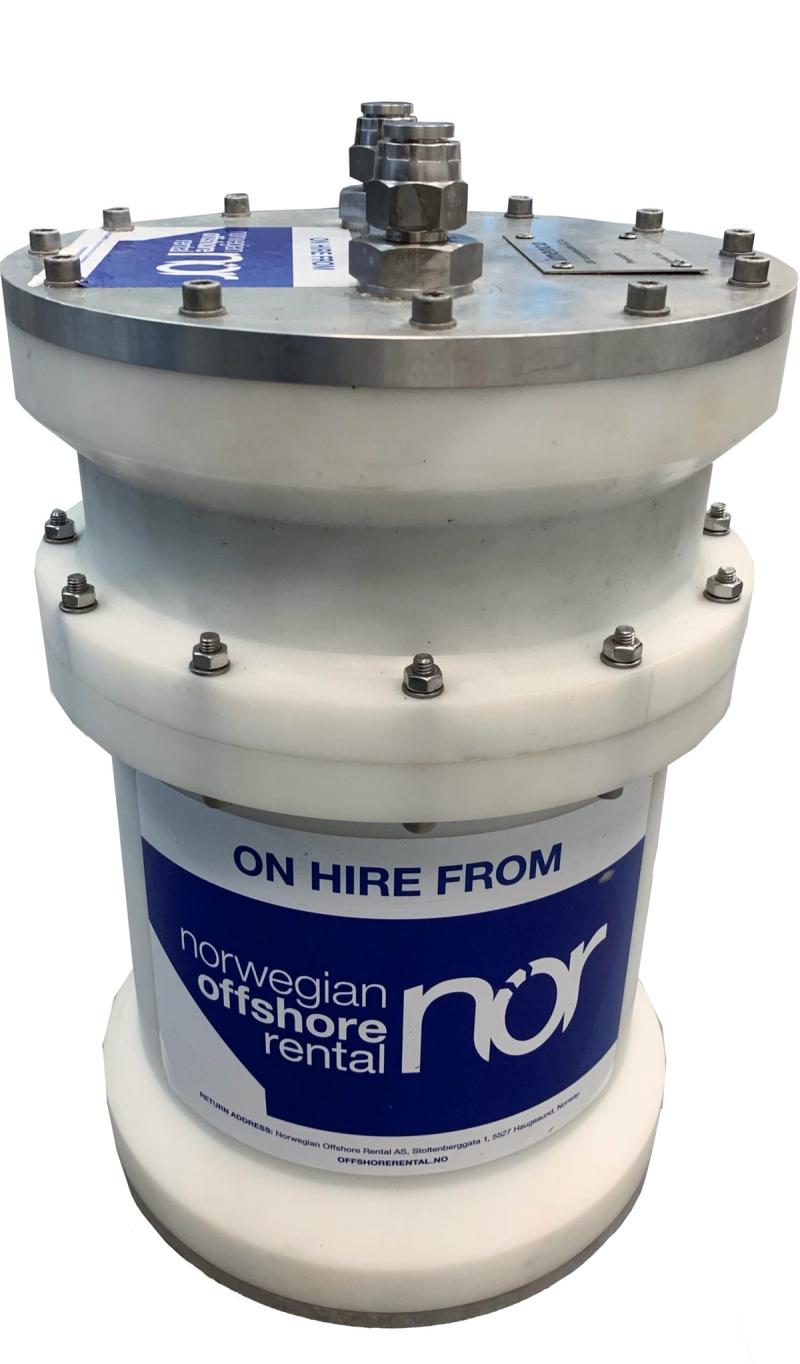

The Imenco Hydraulic Compensator 6.3L is a spring activated diaphragm compensator for ROV and subsea hydraulic systems, designed to keep the hydraulic system at overpressure. The housing is made from white POM with aluminium lids on the top and bottom, and the spring and all bolts and nuts are stainless steel.

The Imenco Hydraulic Compensator 6.3L has a maximum compensated volume of 6.3 litres and works between a minimum pressure of 6 psi and a maximum pressure of 11 psi. The security valve set point is 12 psi.

The Imenco Hydraulic Compensator 6.3L housing is 370 mm long with a maximum diameter of 254 mm. The compensator weighs 14 kg in air and 9 kg in water (empty) and has 2 × BSPP R3/4 hydraulic connections.
