Explore an extensive range of high-quality products tailored to fulfill your unique requirements.
Fluid Injection
Imenco hydraulic compensators are made from polycarbonate tubing, aluminium flanges and stainless-steel springs. They are prepared for installation of optional warning compensation volume sensors. Subcon proximity sensors are normally used. Hydraulic connection(s) are done on top with two JIC 1/2” fittings. All nuts and bolts/rods are stainless steel.
Fluid Injection
The hydraulic oil compensator is used as a compensator in subsea hydraulic systems or as a reservoir for oil and other chemicals used in ROV operations.
Fluid Injection

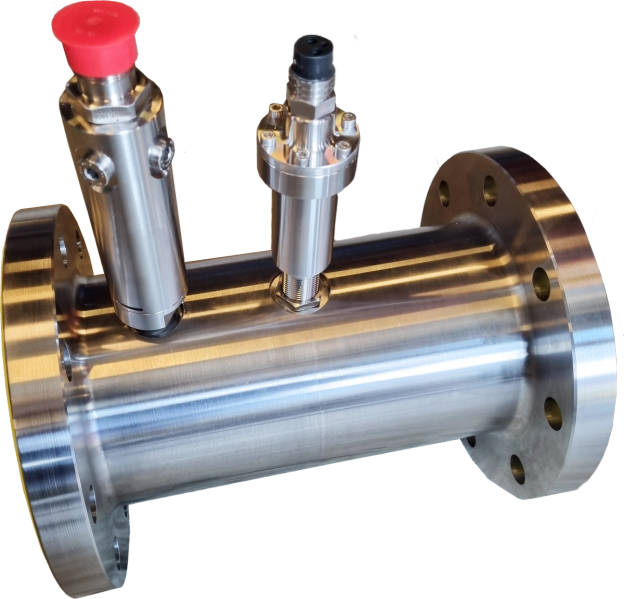

Subsea flow meter combined with pressure sensor can be set up with a suction anchor system, this can be connected either to a IVP and logging software or a dual line subsea display.
Fluid Injection

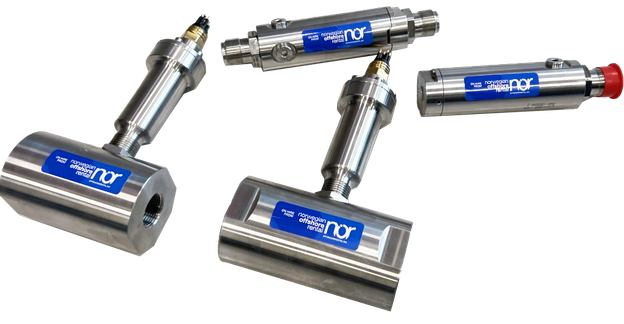

This range of flowmeters will provide you with a highly accurate way of measuring liquids over the range of 0.7 to 2,250 litres/min. Can be connected to various backpacks.
Fluid Injection

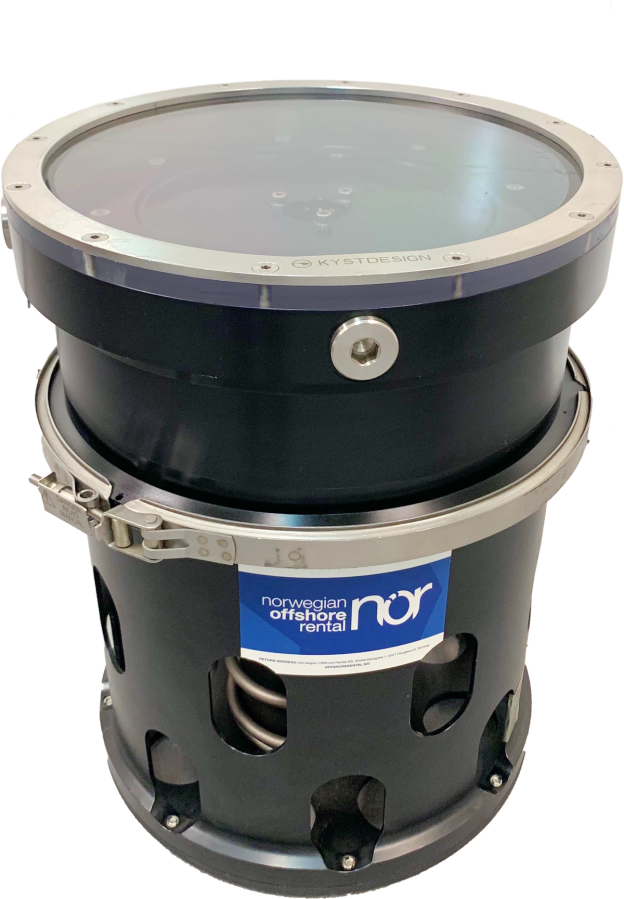

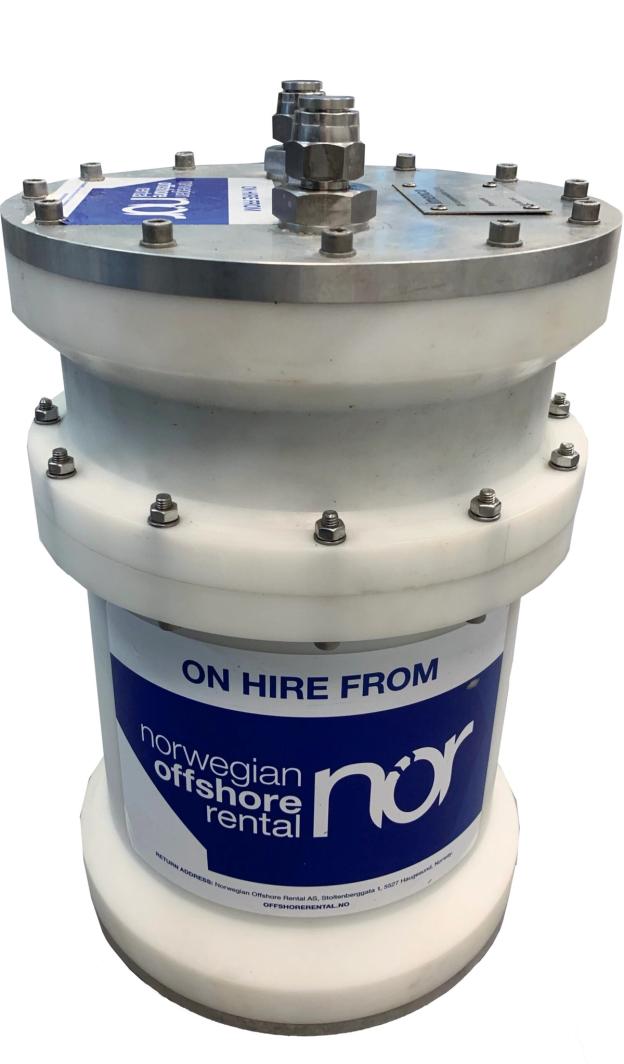

The ROV and Subsea Hydraulic Compensator ensures system overpressure at all times. This is the Imenco Hydraulic Compensator, which is a spring-activated diaphragm compensator, made from white POM with aluminium lids on the top and bottom. The spring and all bolts and nuts are stainless steel.
Fluid Injection

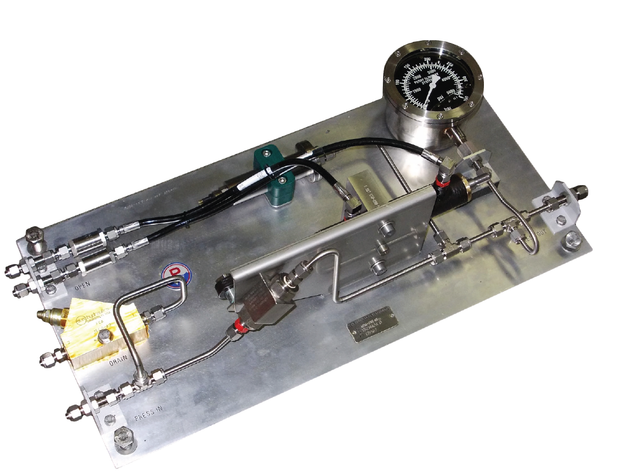

The Back Seal Test Unit provides a controllable pressure between 7 and 210 bar to be applied via the pressure out connection. The pressure developed is monitored by a transducer which may be connected to the subsea control unit if required, and also an analogue subsea gauge. The applied pressure may be switched off/locked in by means of the ram operated ball valve.
Fluid Injection

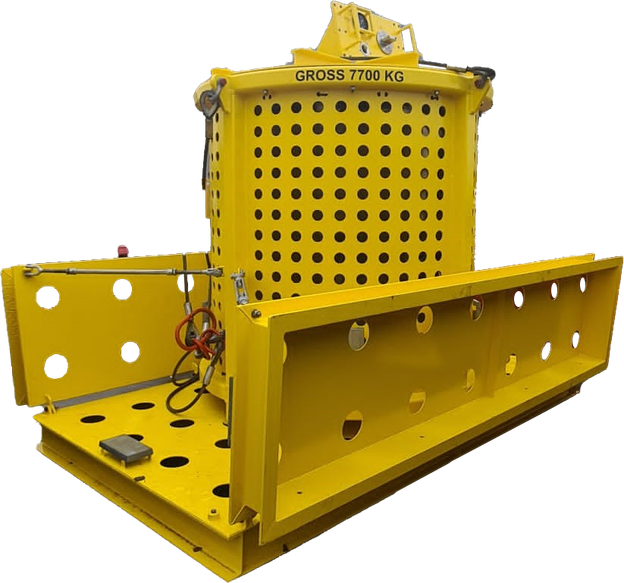

The 5450 litre Subsea Reservoir is a pressure compensated collapsible reservoir with protective cage and mudmat forsafe deployment and recovery. It is utilized in the deployment, injection or recovery of fluids to and from equipmentresiding on the seafloor. Other tooling can be integrated as DWP, IHPU or HPW Pump.
Fluid Injection

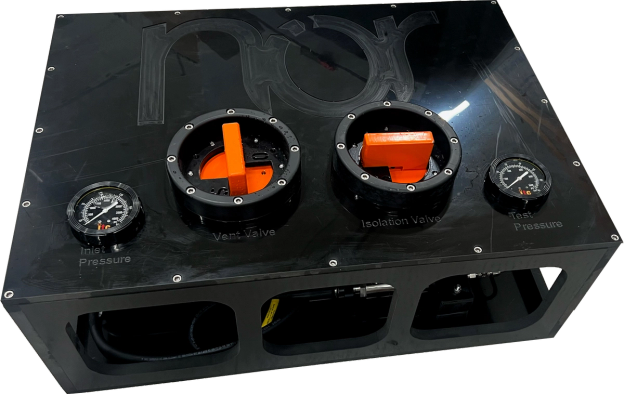

NOR PTU is used for pressure testing and can be set up in many various configurations, up to 10 000 PSI ( 700 bar ). The PTU is small and easily integrated with subsea gauges, and has a built-in pressure sensor with logging capabilities.
Fluid Injection

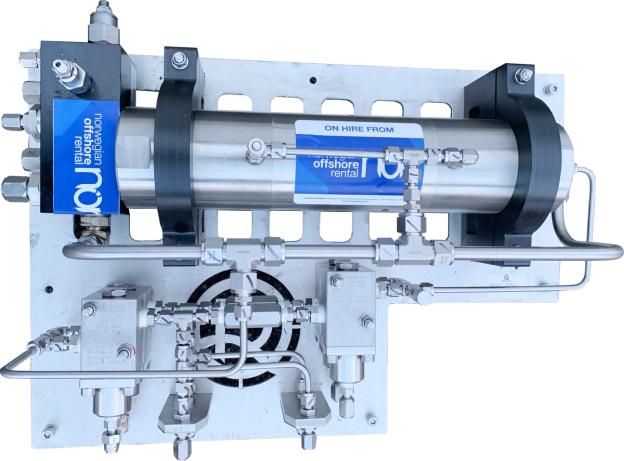

The 10,000psi Isolated Hydraulic Power Unit (IHPU) is a versatile tool that can be used for numerous subsea applications including; Operating BOP Tooling, Transferring Media and Pressure Testing. The output pressure is directly proportional to the output pressure. This allows the output to be adjusted from 0 – 10,000 psi (~690 Bar). The pump can be connected to any subsea reservoir by the suction port (12 JIC). We can supply various sizes of soft reservoir and piston reservoir with an electronic readout depending on requirements.
Fluid Injection

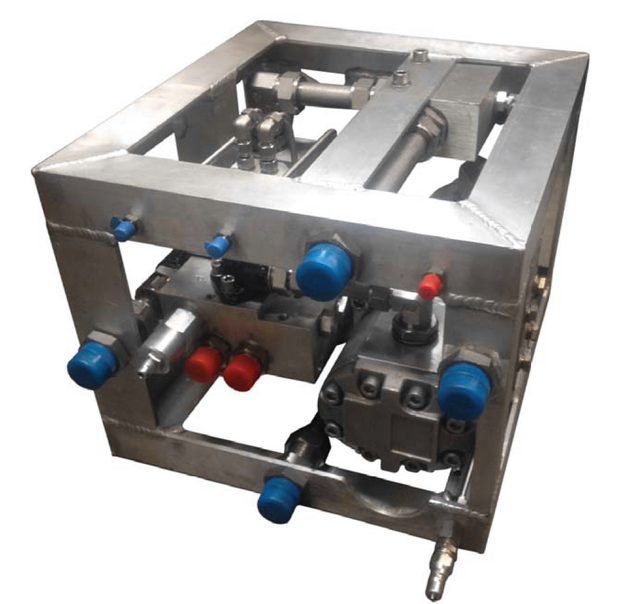

The Modular IHPU – Pumping & Injection Systems ia a high capacity intermediate hydraulic power unit. Designed to give isolated hydraulic power with directional control. The IHPU consists of a hydraulic motor equipped with a flow control and pilot to open check, which drives a hydraulic pump. The high pressure output of the pump is feed into a manifold that is equipped with a 20 micron filter, off load dump valve, a pressure relief valve, and a directional control valve.
