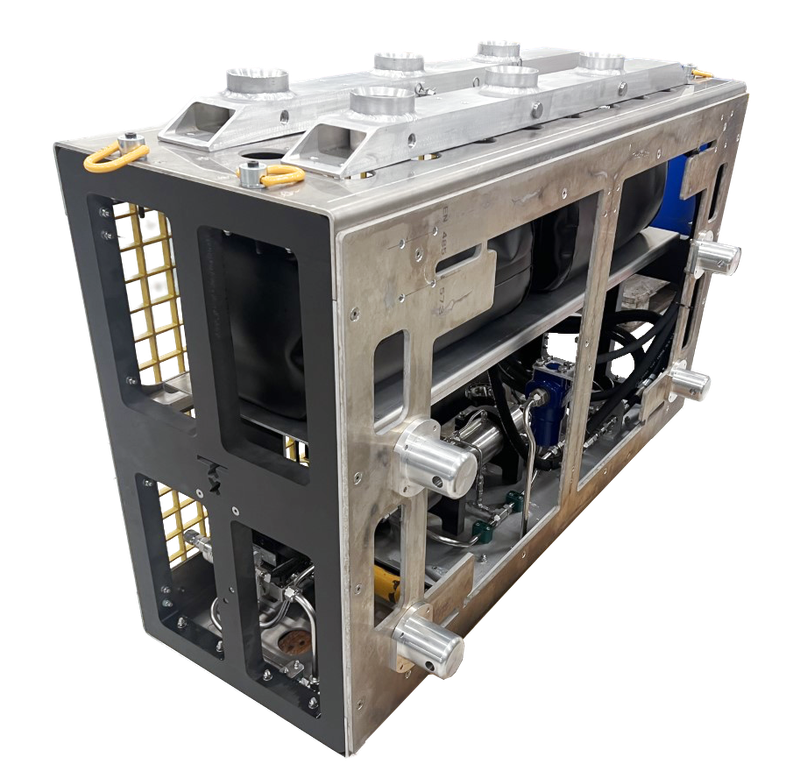

IHPU DCV Backpack

Description

The IHPU DCV Backpack is a dual media intensifier backpack for ROVs that supplies pressurised media through a 3.9:1 ratio Minibooster pump. The circuit is split into a low-pressure input side and a high-pressure output side, and the backpack can be fitted to various ROVs.

On the low-pressure side, adjustable valves give pressure and flow control. Max input pressure is 3,000 psi (210 bar) and max input flow is 40 lpm. The flow control valve is set to 38 LPM and is adjustable up to 45 LPM. The pressure reducing valve is set to 1,300 psi to suit the 5 kpsi directional control valves on the HP side, and is adjustable up to 3,000 psi (210 bar).

On the high-pressure side, pump output is max 10,000 psi (690 bar) and max 8.7 LPM. A 3 station pilot operated directional control block with a max working pressure of 5,000 psi provides 3 × A&B functions, controlled via pilot control lines. An HP pressure relief valve set to 5,400 psi limits the pump output pressure and can be adjusted from 1,000–10,000 psi.

Fluid capacity is 80 litres (2 × 40 L bladders) or 2 × 16 L compensators. The IHPU DCV Backpack measures 1420 × 540 × 900 mm and weighs 165 kg, 115 kg in water. Input connections are 8 JIC and 4 JIC with hoses supplied 2.5 m long, and output connections are 6 JIC with hoses supplied 5 m long.

Technical Specification

Pump

3.9:1 ratio Minibooster pump (dual media)

Input pressure (max)

3,000 psi (210 bar)

Input flow (max)

40 lpm

PO check

Pilot to open

Flow control valve

Set to 38 LPM, adjustable up to 45 LPM

Pressure reducing valve

Set to 1,300 psi, adjustable up to 3,000 psi (210 bar)

Pump output pressure (max)

10,000 psi (690 bar); pump capable of up to 10,500 (unit not stated), restricted to 10,000 psi in line with component pressure rating

Pump output flow (max)

8.7 LPM

HP pressure relief valve

Set to 5,400 psi (~5 % above max working pressure), adjustable 1,000–10,000 psi

3 station directional control block

Max working pressure 5,000 psi, 3 × A&B functions, pilot controlled

Input connections

ROV pressure supply 8 JIC, ROV tank 8 JIC, pump on 4 JIC, pilot 1A, 1B, 2A, 2B, 3A, 3B 4 JIC

Input hoses

Supplied 2.5 m long

Output connections

1A, 1B, 2A, 2B, 3A, 3B out 6 JIC

Output hoses

Supplied 5 m long

Fluid capacity

80 litres (2 × 40 L bladders) or 2 × 16 L compensators

Weight

165 kg

Weight in water

115 kg

Size

1420 × 540 × 900 mm
