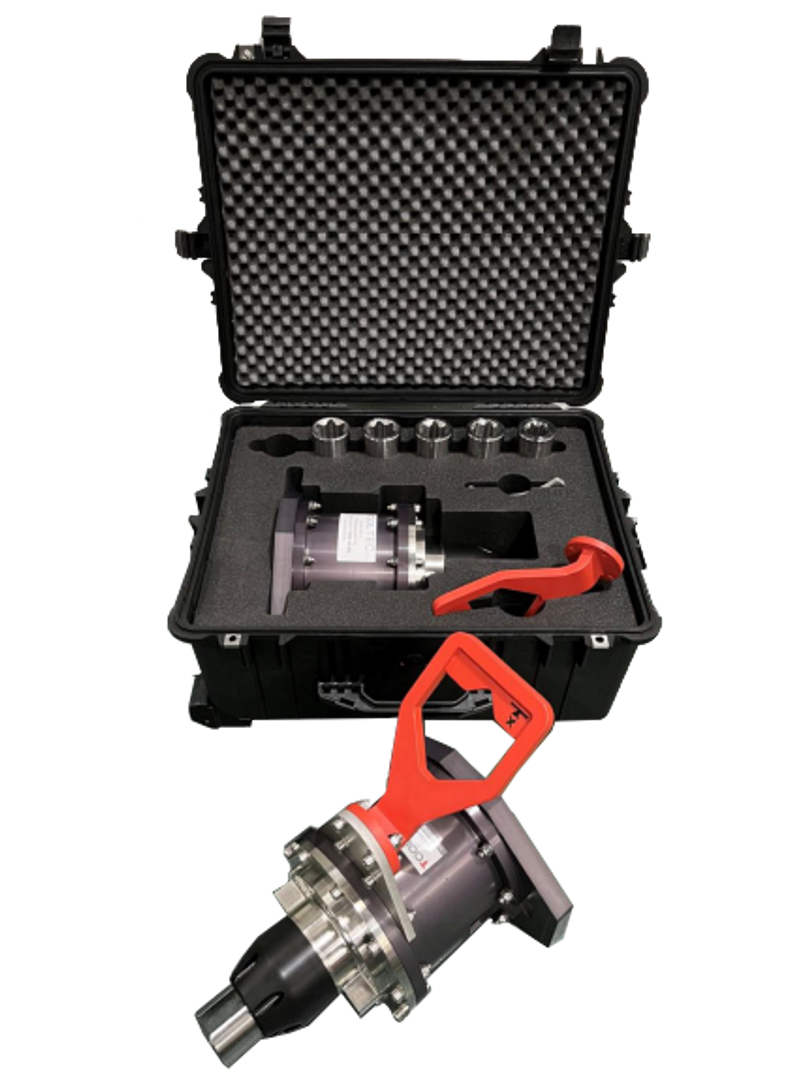

ISO/17D Class 4 to Petrobas Adaptor

Description

The ISO/17D Class 4 to Petrobras Adaptor is an interface extension that allows Petrobras valve interfaces to be actuated using a Class 4 torque tool. It is a purely mechanical tool designed for use with an ISO 17D Class 4 torque tool, using the torque tool's latching capability to secure the adaptor.

The adaptor comes with sockets for the stem sizes 1-1/16" A/F Hex, 1-1/4" A/F Hex, 1-5/16" A/F Hex, 1-3/8" A/F Hex and 1-7/16" A/F Hex, plus 3/4" Slotted (for use with paddle/T-bar).

The ISO/17D Class 4 to Petrobras Adaptor measures 357 mm × 300 mm × 406 mm, weighs 15.5 kg in air and 12 kg in water, and is depth rated to 3,000 msw.

Technical Specification

Torque tool

ISO 17D Class 4

Valve interface

Petrobras

Type

Purely mechanical interface extension

Securing

By latching capability of the torque tool

Sockets supplied (stem sizes)

1-1/16" A/F Hex, 1-1/4" A/F Hex, 1-5/16" A/F Hex, 1-3/8" A/F Hex, 1-7/16" A/F Hex, 3/4" Slotted (for use with paddle/T-bar)

Dimensions

357 mm × 300 mm × 406 mm

Weight in air

15.5 kg

Weight in water

12 kg

Depth rating

3,000 msw
