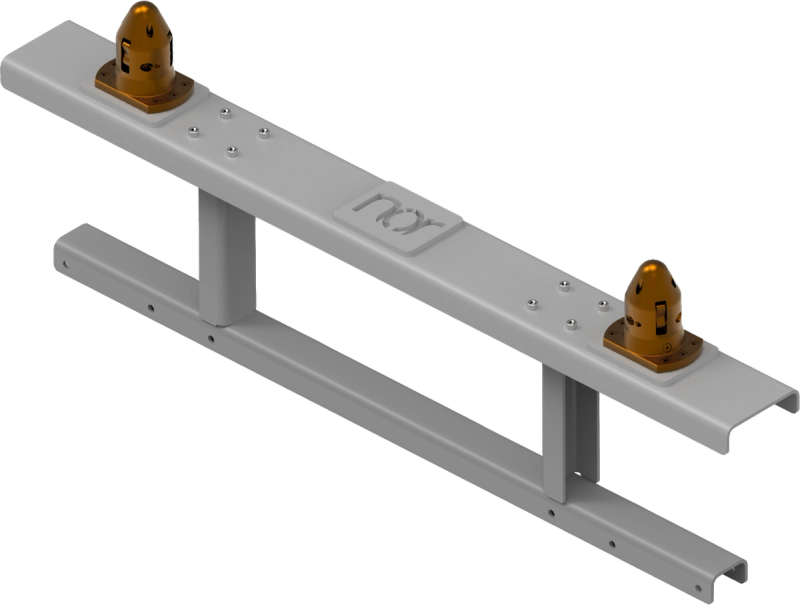

ISO Docking Beam

Description

The ISO Docking Beam is a docking beam that bolts to the front of an XLX vehicle and is used to dock onto subsea structures. The beam is supplied complete with two ISO 13628-8:2002 fig 7 docking latches.

The ISO Docking Beam is of aluminium construction and is built from aluminium, stainless steel and acetal. It measures 1500 × 528 × 160 mm, weighs 25 kg (55.1 lbs) in air and is rated to 3000 m water depth.

The ISO Docking Beam has an ISO 13628-8 interface, a hydraulic input pressure of 210 bar (3045 psi) and a hydraulic flow range of 2–10 l/min.

Technical Specification

Interface

ISO 13628-8

Docking latches

Two, ISO 13628-8:2002 fig 7

Mounting

Bolted to the front of an XLX vehicle

Dimensions

1500 × 528 × 160 mm

Weight in air

25 kg / 55.1 lbs

Depth rating

3000 m

Materials

Aluminium, stainless steel, acetal

Hydraulic input pressure

210 bar / 3045 psi

Hydraulic flow range

2–10 l/min
