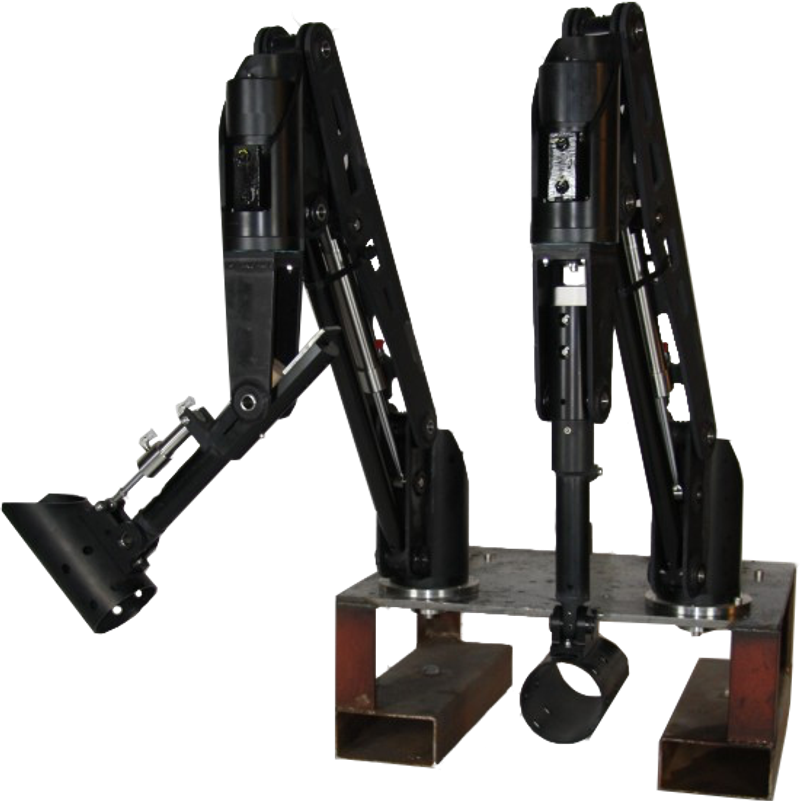

Kystdesign Camera Booms

Description

The Kystdesign Camera Boom is a hydraulic camera boom designed and built by Kystdesign for use on survey ROVs. It is intended to be fitted with one customer supplied video camera and two Multi-SeaLite lamps, and has four hydraulic functions: boom rotate, elevate, pan and tilt.

The Kystdesign Camera Boom has 90° boom rotate, 1200 mm elevate, 180° pan and −45° tilt horizontal, at a maximum hydraulic pressure of 200 bar. It weighs 46 kg (dry). The lower section releases and pivots on impact, and the pivoting section is held in position by two magnets.

Hydraulic ports on the Kystdesign Camera Boom are 3/8 BSP and 1/4 BSP on the rotary actuator, and 1/4 BSP and 1/8 NPT on the hydraulic cylinder.

Technical Specification

Intended use

Survey ROVs

Hydraulic functions

4 (boom rotate, elevate, pan, tilt)

Payload

One customer supplied video camera and two Multi-SeaLite lamps

Weight (dry)

46 kg

Boom rotate

90°

Elevate

1200 mm

Pan

180°

Tilt horizontal

−45°

Max hydraulic pressure

200 bar

Ports on rotary actuator (pos 8)

3/8 BSP

Ports on rotary actuator (pos 9)

1/4 BSP

Ports on hydraulic cylinder (pos 10)

1/4 BSP

Ports on hydraulic cylinder (pos 11)

1/8 NPT

Impact release

Lower section releases and pivots on impact; held in position by two magnets
