Manual Low Torque Tool API 17H Type A, B, & C

Description

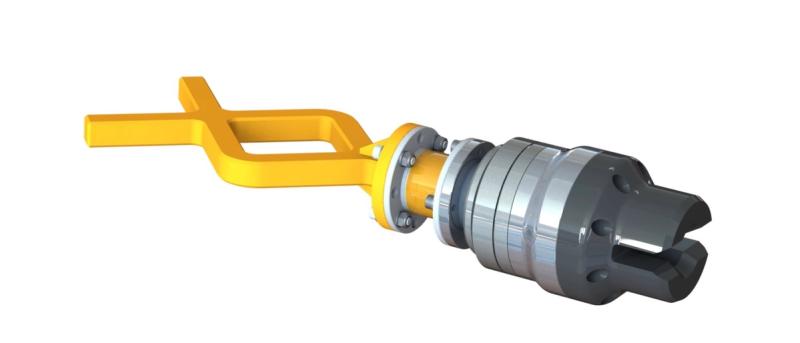

The Manual Torque Tool API 17H / ISO 13628-8 Type A, B & C is a torque limiter for ROV manipulator operation of API 17H / ISO 13628-8 Type A, B and C torque interfaces. An adjustable torque limiting clutch limits the maximum torque transmitted from the ROV manipulator to the valve interface during ROV intervention, reducing the risk of over-torquing and damaging the valve or valve stem.

The Manual Torque Tool has a torque range of 20–200 Nm, and the maximum output torque can be adjusted without dismantling the tool. The tool is supplied with a torque wrench for setting the torque. It is mechanically operated by ROV and weighs ~8 kg in air and ~6 kg submerged. The depth rating is stated as any water depth.

The multi-function end effector interfaces with Type A (flat paddle) and Type B and C (T-bar) valve handles.

Technical Specification

Interface standard

API 17H / ISO 13628-8 Type A, B & C

Valve handles

Type A (flat paddle), Type B & C (T-bar)

Torque range

20–200 Nm

Torque limiting

Adjustable clutch mechanism

Torque adjustment

Adjustable maximum output torque, no dismantling required

Operation

Mechanically operated by ROV manipulator

End effector

Multi-function

Weight in air

~8 kg

Weight submerged

~6 kg

Depth rating

Any water depth

Supplied with

Torque wrench for torque setting
