Multibeam Frame HD & UHD3-R2 Sonic 2024

Description

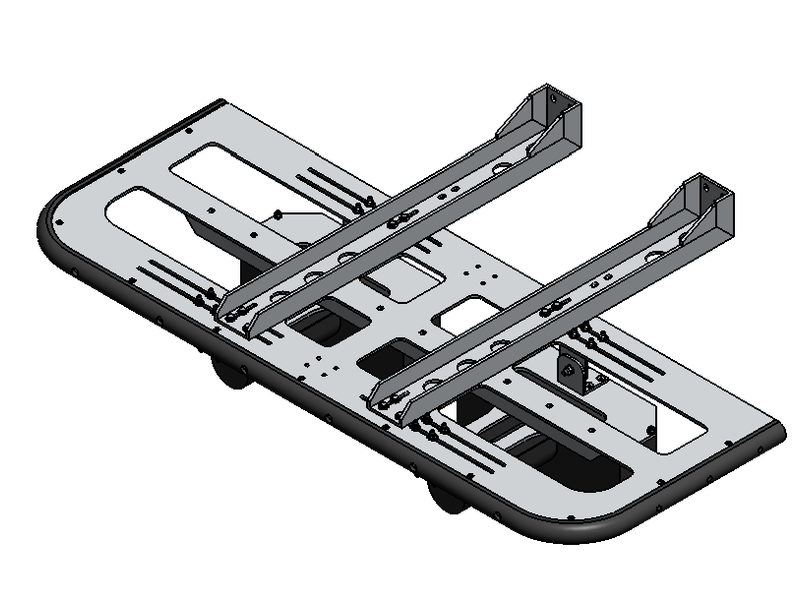

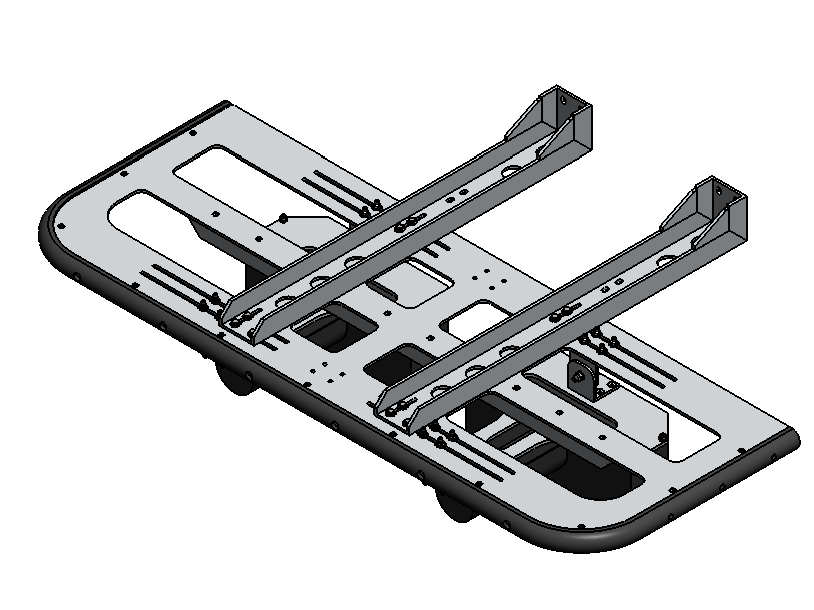

The Multibeam Frame HD & UHD3-R2Sonic 2024 is a dual head multibeam frame for the Schilling HD and UHD 3. The frame integrates with R2Sonic brackets.

The Multibeam Frame measures 1685 × 1012 × 414 mm and weighs 67.5 kg in air and 23.5 kg in water. The plan view drawing shows a width of 1012 mm at minimum extension and 1055 mm at maximum extension.

Technical Specification

Configuration

Dual head

Designed for

Schilling HD and UHD 3

Bracket compatibility

R2Sonic brackets

Dimensions

1685 × 1012 × 414 mm

Width (drawing)

1012 mm min, 1055 mm max extension

Weight in air

67.5 kg

Weight in water

23.5 kg
