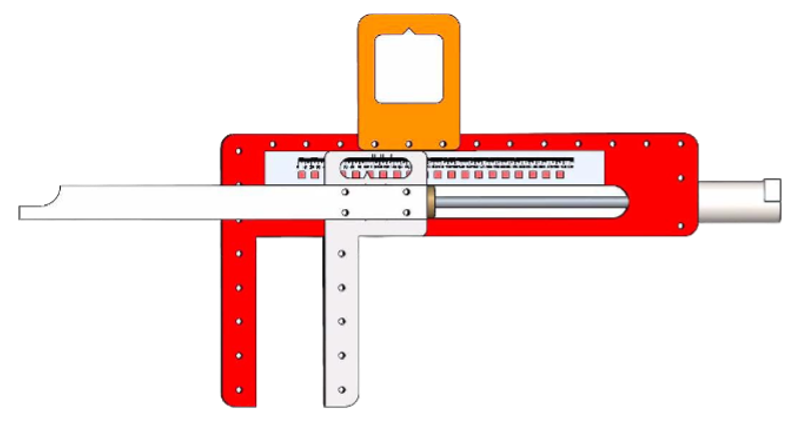

Nexum Caliper

Description

The Nexum Caliper (model NEX CAL1) is a hydraulic operated measuring tool designed for ROV and subsea use. A hydraulic motor adjusts the indicator leg or jaw for measurement.

The Nexum Caliper has a visible scale with large numbers, from 0 to 400 mm divided in mm precision, with additional large coloured square indicators for each 10 mm. A depth rod can be attached to the indicator leg to measure depths, and the length of the depth rod can be defined.

The Nexum Caliper NEX CAL1 measures 830 × 575 × 80 mm (L × H × W), weighs 25 kg and has a hydraulic specification of 10 LTR @ 100 bar.

Technical Specification

Model

NEX CAL1

Type

Hydraulic operated measuring tool for ROV and subsea use

Actuation

Hydraulic motor to adjust the indicator leg or jaw

Measuring scale

0–400 mm, divided in mm precision

Scale markings

Large numbers; large coloured square indicators for each 10 mm

Depth measurement

Depth rod can be attached to the indicator leg; length of depth rod can be defined

Hydraulics

10 LTR @ 100 bar

Dimensions

830 × 575 × 80 mm (L × H × W)

Weight

25 kg
