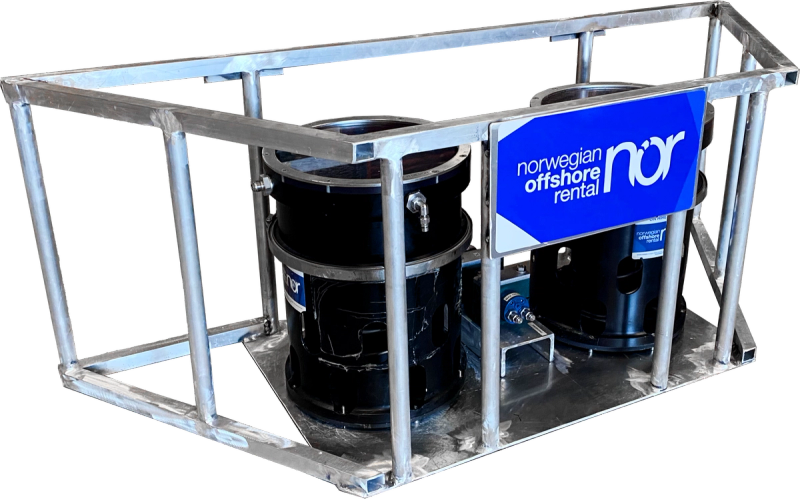

NOR Injection Backpack

Description

The NOR Injection Backpack is a backpack injection skid for fluid injection at up to 10 bar. It has a fluid capacity of 32 litres in 2 × 16 ltr compensators and is stated to work with all fluids.

The pump is driven by an OMM 8 hydraulic motor with a maximum pressure of 100 bar and 2× JIC 4 hydraulic connections. The pump has a maximum output pressure of 10 bar and 2× JIC 4 hydraulic connections.

The NOR Injection Backpack measures 161.5 × 68 × 61 cm and weighs 78 kg.

Technical Specification

Product type

Backpack injection skid

Fluid capacity

32 litres (2 × 16 ltr compensators)

Fluid compatibility

All fluids (as stated in datasheet)

Motor

OMM 8 motor

Motor max pressure

100 bar

Motor hydraulic connections

2× JIC 4

Pump max output pressure

10 bar

Pump hydraulic connections

2× JIC 4

Dimensions

161.5 × 68 × 61 cm

Weight

78 kg
