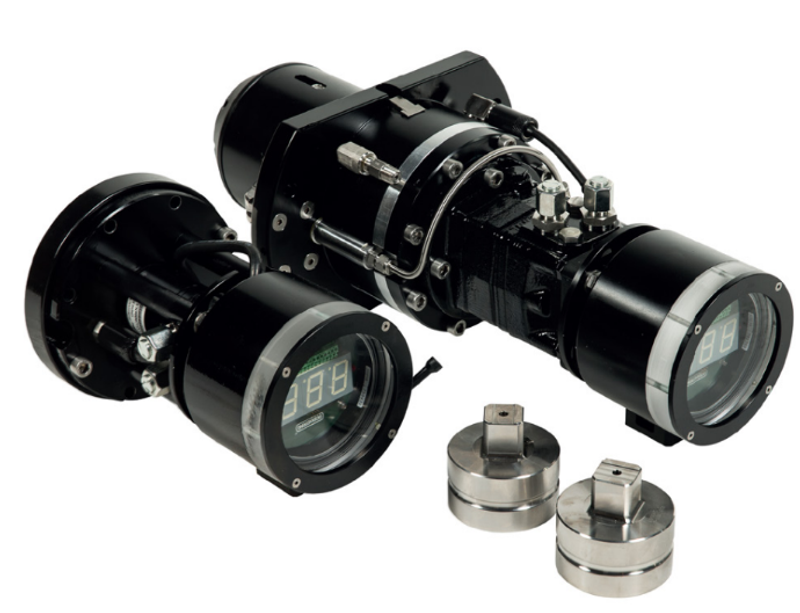

Oceaneering Class 1-4 Hydraulic Torque Tool

Description

The Oceaneering Class 1–4 Hydraulic Torque Tool is a hydraulic torque tool that operates the full Class 1–4 range. Applications stated in the datasheet include opening and closing Class 1–4 valves and installing and removing flying leads.

The Oceaneering Class 1–4 Hydraulic Torque Tool has a torque range of 35–2,700 Nm (26–1,991 ft·lbf) and a maximum operating pressure of 207 bar (3,000 psi). Motors are available from 32 cc to 250 cc. The tool has electronic and mechanical turn counters, and the electronic turn counter resolution is 1/10th of a turn. Turn count is shown on a subsea display and a remote control unit (RCU). Real-time torque feedback via the RCU is optional.

The tool has interchangeable end effectors and a fin or body latch. It is rated to 3,000 msw (10,000 fsw), measures 30.2 cm in diameter and 60.2 cm in length, and weighs 39 kg in air and 30 kg in water. For transport, the Oceaneering Class 1–4 Hydraulic Torque Tool is supplied in a 79.6 × 60.2 × 40.1 cm (L × W × H) transport case with a stated weight of 85 kg.

Technical Specification

Interface

Class 1–4

Torque range

35–2,700 Nm (26–1,991 ft·lbf)

Depth rating

3,000 msw (10,000 fsw)

Dimensions (Ø × L)

30.2 × 60.2 cm (11.9 × 23.7 in)

Weight in air

39 kg (86 lb)

Weight in water

30 kg (66 lb)

Turn counters

Electronic and mechanical

Electronic turn counter resolution

1/10th of a turn

Turn counter display

Subsea display and remote control unit (RCU)

Torque feedback

Real-time torque feedback via RCU (optional)

End effectors

Interchangeable

Latch types

Fin or body latch

Motors

From 32 cc to 250 cc

Maximum operating pressure

207 bar (3,000 psi)

Transport case (L × W × H)

79.6 × 60.2 × 40.1 cm (31.4 × 23.7 × 15.8 in)

Transport weight

85 kg (187.3 lb)
