Override 3 Te Subsea Jack

Description

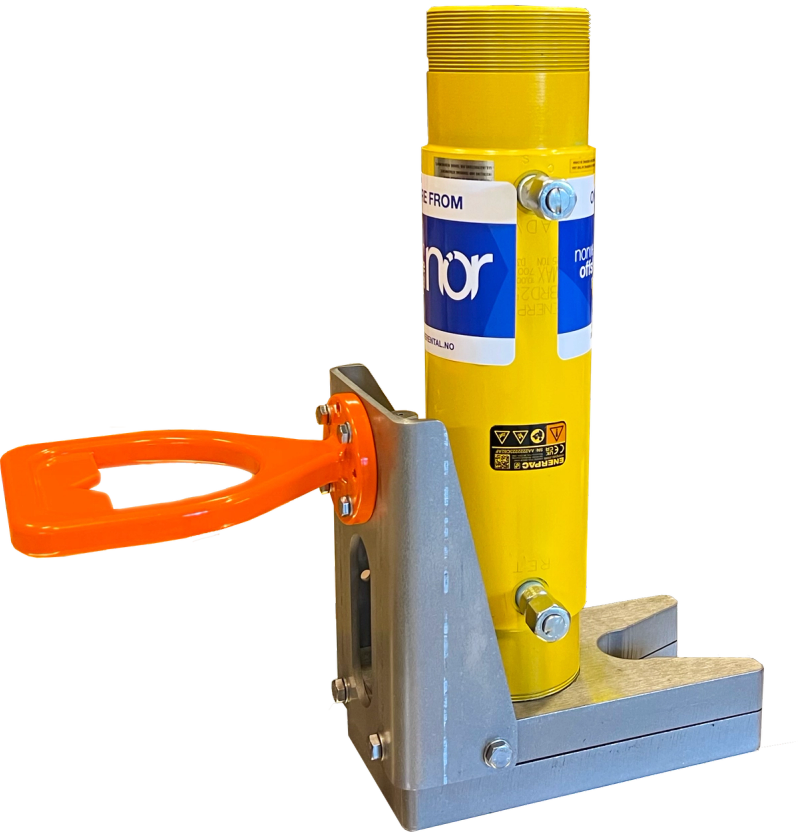

The Override 3 Te Subsea Jack is a bolted subsea jack built with a double-acting cylinder and stainless steel components. The tool/cylinder is normally operated from the ROV HPU.

At the maximum pressure of 100 bar the Override 3 Te Subsea Jack gives approximately 3200 kg (31.7 kN) separating force. The dimension drawing states a stroke length of 159 mm.

The Override 3 Te Subsea Jack measures 230 (405) mm × 144 mm × 424 (583) mm (L × W × H) and weighs 27.3 kg in air and 23.7 kg in water.

Technical Specification

Construction

Bolted, stainless steel components

Cylinder

Double-acting

Operation

ROV HPU

Maximum pressure

100 bar

Jack force

3200 kg at 100 bar

Separating force

Approx. 31.7 kN (3200 kg) at 100 bar

Stroke length (drawing)

159 mm

L × W × H

230 (405) mm × 144 mm × 424 (583) mm

Weight in air

27.3 kg

Weight in water

23.7 kg
