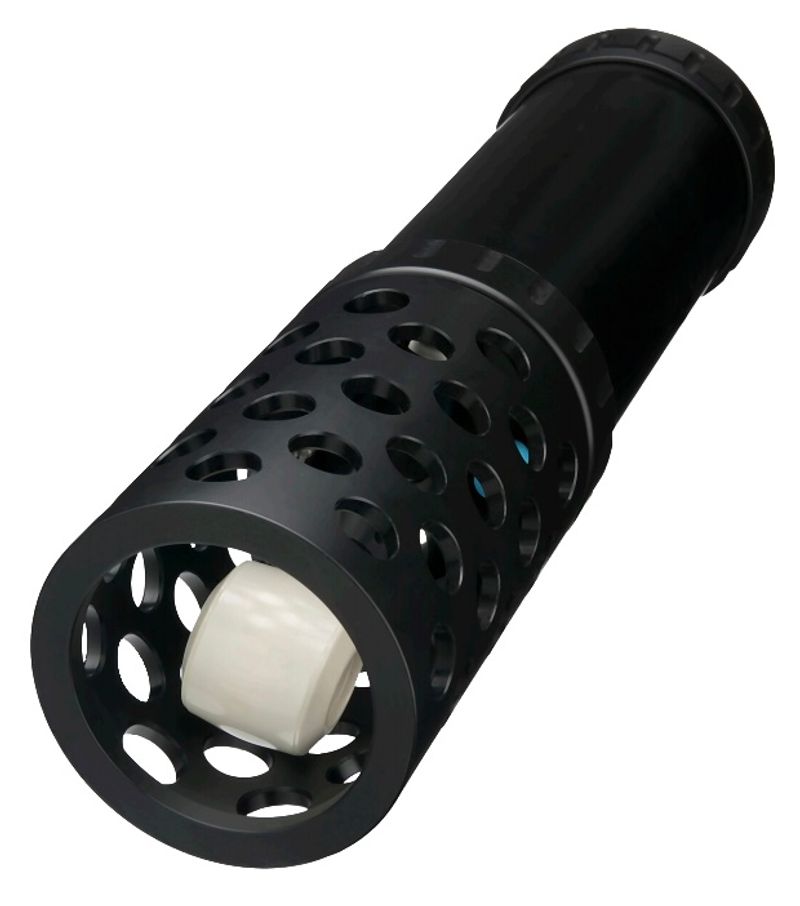

SeaKing Sensor 700 Series
Description
The SeaKing Bathymetric system comprises up to four high resolution sensors – a depth sensor, conductivity probe, temperature probe and the PA500 altimeter. Two standard configurations are available, either as a pressure only package (SeaKing 701) or as a pressure, conductivity and temperature package (SeaKing 704). The sensors form an integrated package, however, the PA500 altimeter is on a cable and can be mounted separately on the ROV which allows positioning of the individual sensors away from areas of masking or disturbance such as vehicle structure or thruster wash. For the SeaKing 704 full water column profiling is achieved by dynamically modifying a lookup table which contains all measured parameters versus depth. This table may be stored by the surveyors and re-loaded as required.
