Bathymetric & Profiling Systems
Tritech Multicomm Intelligent Junction Box
The Tritech Multicomm Intelligent Junction Box simplifies interfacing SeaKing or SeaPrince sensors. The Tritech Multicomm Intelligent Junction Box can be linked to a number of SeaKing sensors and communication can then be made to the SCU (Surface Control Unit) using RS232 protocol. As well as providing RS232 output, the Multicomm can be set to act as a transparent interface allowing communication using Tritech’s ARCNET protocol. This transparent interface also accepts SeaPrince sensors, which provides a simple junction box for system installations where time is critical. The Multicomm not only interfaces to the full range of SeaKing sensors, the Multicomm can also accept a serial output from a third party sensor such as a gyro. This connects to the Multicomm’s Aux Port The flexibility of the Tritech Multicomm Intelligent Junction Box provides users with a package that can be interfaced almost anywhere.
Bathymetric & Profiling Systems
Valeport Bathy2
The Bathy2 is an enhancement of the MIDAS Bathypack offering Valeport’s proven construction survey industry standard sensors to generate precision Sound Velocity and Density profiles for highly accurate depth and height data. Key features include interchangeable pressure sensors to maximize accuracy for depth application, external input from a Digiquartz pressure transducer and separate output for INS or other use. Vibration & Shock tested to ISO 13628-6:2006 (Q2 levels).
Bathymetric & Profiling Systems
Tritech SeaKing 704 Bathymetric System
The Tritech SeaKing 704 Bathymetric system comprises up to four high resolution sensors – a depth sensor, conductivity probe, temperature probe and the PA500 altimeter. Two standard configurations are available, either as a pressure only package (SeaKing 701) or as a pressure, conductivity and temperature package (SeaKing 704). The sensors form an integrated package, however, the PA500 altimeter is on a cable and can be mounted separately on the ROV which allows positioning of the individual sensors away from areas of masking or disturbance such as vehicle structure or thruster wash. With the Tritech SeaKing 704 Bathymetric System, full water column profiling is achieved by dynamically modifying a lookup table which contains all measured parameters versus depth. This table may be stored by the surveyors and re-loaded as required. For the Tritech SeaKing 704 Bathymetric System full water column profiling is achieved by dynamically modifying a lookup table which contains all measured parameters versus depth. This table may be stored by the surveyors and re-loaded as required. The SeaKing 704 Bathymetric System operates as a stand-alone instrument, or a single subsea node on the SeaKing network and shares the same twisted pair wiring as the SeaKing Profiler or SeaKing Sonar. Vehicle integration is very simple since only a single pair of conductors are required on the ROV.
Bathymetric & Profiling Systems
STD/CTD – model SD204
The SD204 measures, calculates and records sea water conductivity, salinity, temperature, depth (pressure), sound velocity and water density.
Bathymetric & Profiling Systems

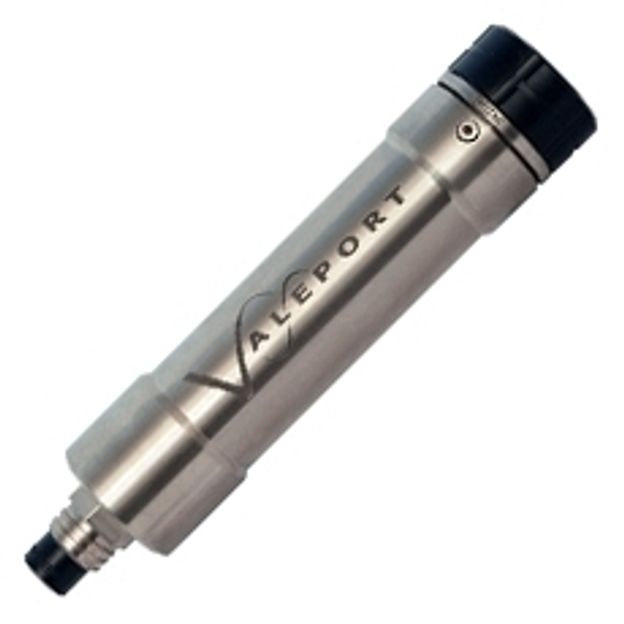

Valeport miniIPS
The Valeport miniIPS is a precision underwater pressure sensor; 0.01% accuracy, titanium housing and a choice of pressure ranges make it a cost effective solution for offshore engineers, vehicle pilots, and other operators who require highly accurate depth information in real time. The miniIPS is also compatible with Valeport’s MIDAS BathyPack and BathyLog software, allowing the depth data to be continually updated for Density variations in the water column.
Bathymetric & Profiling Systems

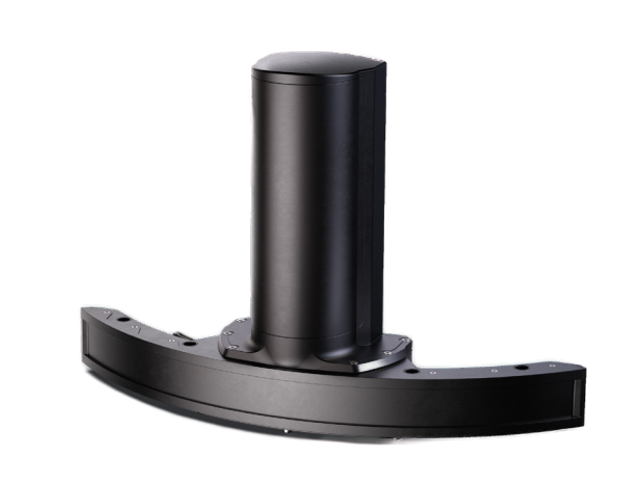

NORBIT Wingehead i77h
The NORBIT WINGHEAD i77h is a compact ultra-high resolution curved array broadband multibeam sonar offering tight integration with GNSS/INS (Applanix OceanMaster) that is designed for use in the most demanding operational environments such as under bridges or in rough sea conditions. Characterised further by a small form factor; low power draw and tight integration, WINGHEAD i77h installation can occur on surface survey platforms ranging from small USVs to large vessel permanent hull mounts.
Bathymetric & Profiling Systems
DragonFish
The DragonFish is a highly compact and rugged underwater laser measurement and profiling system with topside video and software analysis. The system has been designed for a wide range of subsea measurement applications including the width and depth of cracks and gaps, pipeline radius, diameter and circumference and precise distance and angular measurements. Depending on the range to target, the DragonFish generates results with an accuracy of up to 0.5 mm. The package is very compact and has been designed to integrate to the smallest of ROV systems or it can be modified for diver use using the attachable handle. The system is supplied with offshore proven operating software for target measurements and analysis. It generates results in real time so does not require costly data post processing and does not require input from survey. DragonFish is easy to operate with remote training completed in 1 to 2 hours, typically the system does not require an offshore technician.
Bathymetric & Profiling Systems
Paroscientific Digiquartz
Paroscientific Digiquartz® Depth Sensors provide the ultimate precision in water level measurements. Typical application accuracy of 0.01% is achieved even under difficult environmental conditions. Desirable characteristics include excellent long-term stability, 1 x 10–8 resolution, low power consumption, and high reliability.
Bathymetric & Profiling Systems

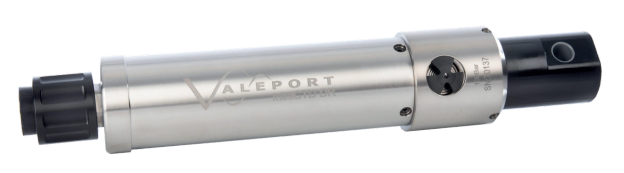

Valeport Mini CTD DR – Direct Reading CTD
The miniCTD – DR is an adaptation of the miniCTD. It has been optimised for ROV operations with a direct reading interface only and no internal battery or logging capability. It provides a simple, cost effective tool for the collection of CTD Profiles, without compromising the quality of the data.
Bathymetric & Profiling Systems

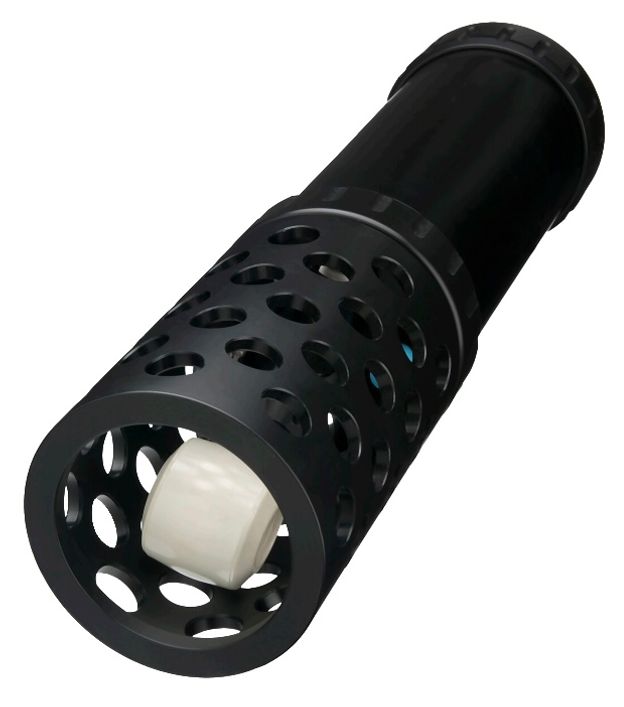

SeaKing Sensor 700 Series
The SeaKing Bathymetric system comprises up to four high resolution sensors – a depth sensor, conductivity probe, temperature probe and the PA500 altimeter. Two standard configurations are available, either as a pressure only package (SeaKing 701) or as a pressure, conductivity and temperature package (SeaKing 704). The sensors form an integrated package, however, the PA500 altimeter is on a cable and can be mounted separately on the ROV which allows positioning of the individual sensors away from areas of masking or disturbance such as vehicle structure or thruster wash. For the SeaKing 704 full water column profiling is achieved by dynamically modifying a lookup table which contains all measured parameters versus depth. This table may be stored by the surveyors and re-loaded as required.
Bathymetric & Profiling Systems

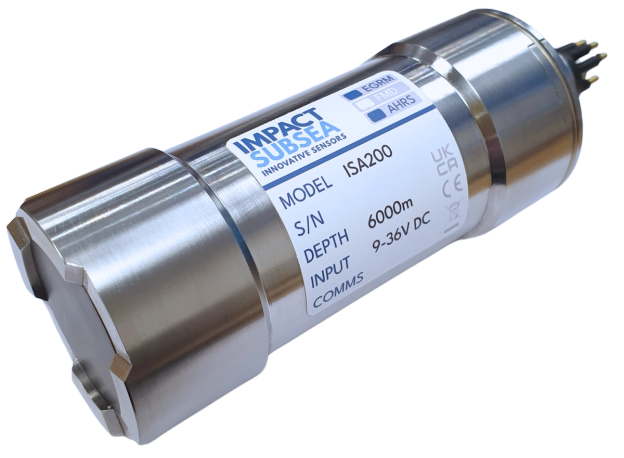

ISA200 Altimeter & Echosounder
Impact Subsea are proud to present the ground breaking ISA200 family of underwater altimeters and single beam echosounders. Highly robust, with optional integrated Attitude and Heading Reference System (AHRS). The ISA200 utilises an advanced digital acoustic engine to provide the highest level of stability and range available from a 200kHz Altimeter. With integrated AHRS, the ISA200 has the ability to compensate for pitch and roll – providing a true altitude reading at all times. For applications where Altitude, Heading, Pitch and Roll are required; all can be provided from a single device.
Bathymetric & Profiling Systems

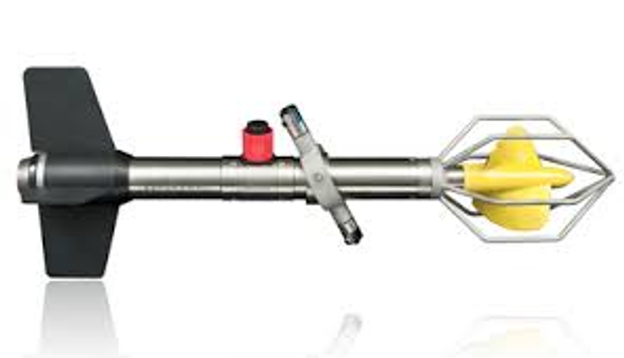

Valeport Model 106
The Valeport Model 106 Current Meter is a light weight, cost effective impeller current meter, designed for real time current measurement or short to medium term autonomous deployments. Titanium construction ensures durability, and the optional temperature and pressure sensors increase the versatility of the instrument. Ideal for use in rivers and coastal applications, or from small boats, the Model 106 is simple to use with either the Windows based PC software supplied, or an optional dedicated display unit.
