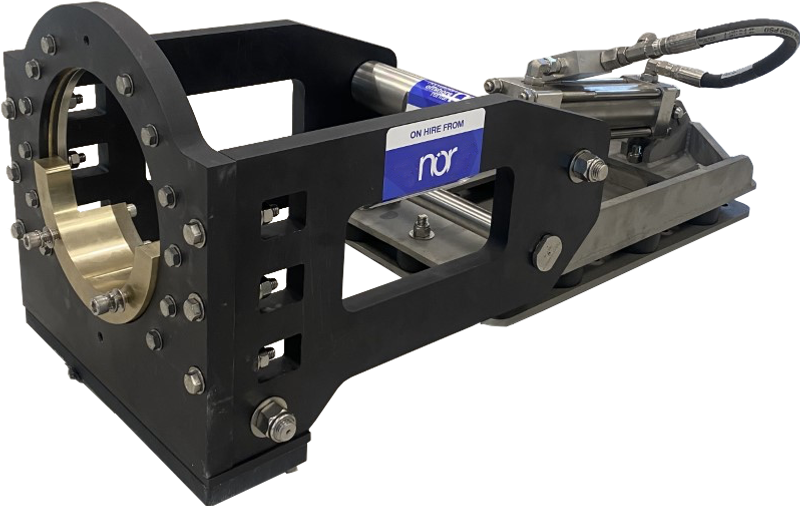

Seanic Flying Lead Orientation Tool (FLOT)

Description

The Seanic Flying Lead Orientation Tool (FLOT) is a tool designed to be front mounted to an ROV for interface with various class 1–4 torque tools. The docking cone of the Seanic FLOT is designed using a class 4 torque tool nose and latches, and the FLOT has adapters for FORUM Torque Tool.

The Seanic FLOT has a total of 135° of pitch travel: 90° down from horizontal and 45° up from horizontal. The capacity is 272 kg. The pitch function (1A/1B) and the roll function (2A/2B) both operate at 207 bar, with flow dependent on the weight of the load. The hydraulic requirement is two open center directional valves.

The Seanic FLOT measures 940 × 384 × 400 mm and weighs 72 kg in air and 56 kg in water (FLOT only). Materials are 316SS, 6061 T6 aluminium, Ampco 45 and Buna-N.

Technical Specification

Dimensions

940 × 384 × 400 mm (FLOT only)

Weight in water

56 kg (FLOT only)

Weight in air

72 kg (FLOT only)

Materials

316SS, 6061 T6 Alum, Ampco 45, Buna-N

Hydraulic requirements

Two open center directional valves

Capacity

272 kg

Pitch function (1A/1B)

207 bar, flow dependent on weight of load

Roll function (2A/2B)

207 bar, flow dependent on weight of load

Pitch travel

135° total (90° down / 45° up from horizontal)

Mounting

Front mounted to ROV

Torque tool interface

Class 1–4 torque tools

Docking cone

Class 4 torque tool nose & latches

Adapters

FORUM Torque Tool
