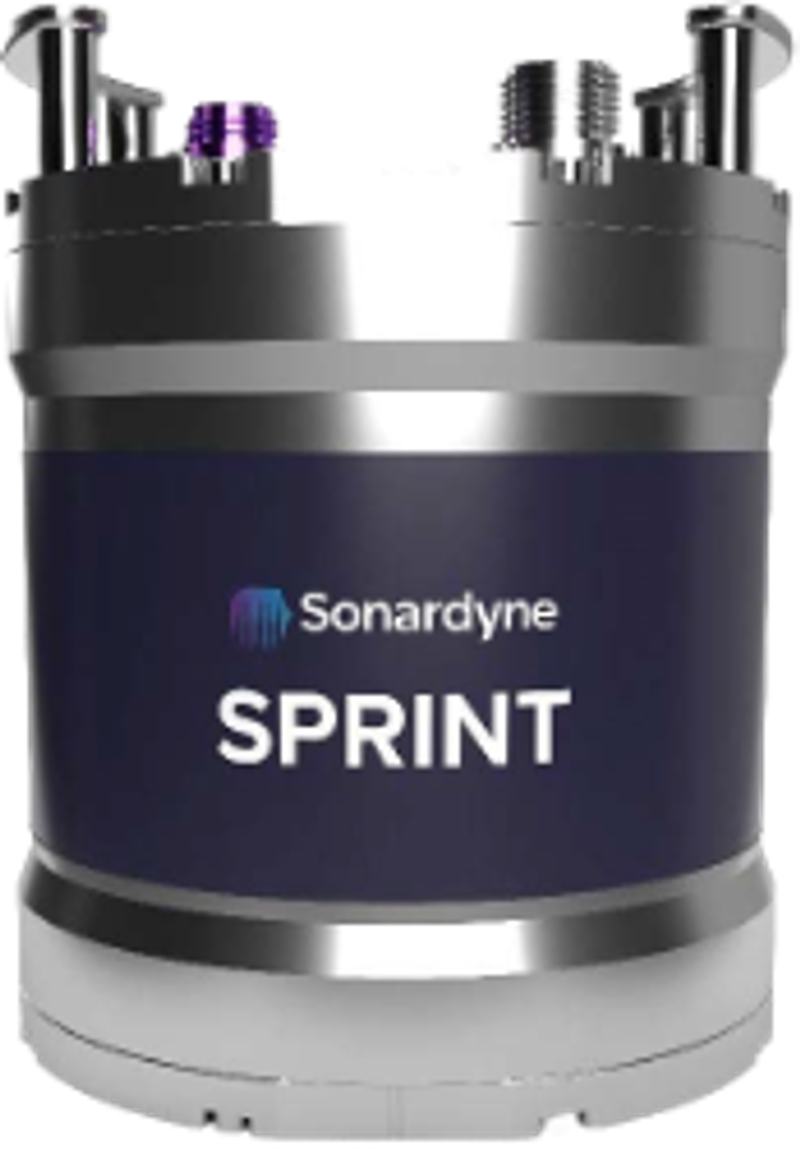

SPRINT subsea INS

Aided Inertial Navigation System

Description

The Sonardyne SPRINT subsea INS is an Aided Inertial Navigation System (AINS) built around a Sonardyne in-house designed Inertial Measurement Unit (IMU). It combines motion sensor, gyrocompass and INS functions in one instrument and provides concurrent AHRS and INS capability, so that, for example, AHRS plus DVL can be used for ROV piloting while INS plus DVL is used for survey operations.

The Sonardyne SPRINT is offered as SPRINT 300, SPRINT 500 and SPRINT 700, with heading of 0.05°, 0.04° and 0.02° secant latitude respectively. Roll and pitch is 0.01°, INS initialisation is instantaneous and follow up speed is 900°/sec. INS aiding is supported from USBL, depth, DVL, zero velocity, manual position, LBL and GNSS. With DVL aiding, typical survey performance is 0.05 %, 0.03 % or 0.02 % for SPRINT 300, 500 and 700 (CEP50, assuming a high performance DVL such as the Sonardyne Syrinx 600).

The Sonardyne SPRINT requires 20–50 V dc at 15 W nominal (35 W maximum) and provides power pass through for 3 external aiding sensors at up to 3 A per sensor. Internal battery backup is Li-ion/5 minutes, and 8 GB internal memory allows post processing and remote diagnostics. Interfaces are 4x RS232 or RS485 serial ports, Ethernet and 4x triggers, with an output rate of up to 100 Hz.

The titanium SPRINT housing is available with 4000 m and 6000 m depth ratings and with Seacon (standard) or Seanet connectors (for use with FMC Schilling Robotics ROV). Typical applications listed in the datasheet include vehicle guidance and control, station keeping and autopilot, USBL aided INS survey, DVL aided relative navigation, ROV and tow fish positioning, hydrographic survey, offshore construction, multibeam survey, touchdown monitoring and structure placement.
