Gyro Compasses
Phins Subsea
FOG-based high-performance subsea inertial navigation system for deep water Phins Subsea is a subsea inertial navigation system providing position, true heading, attitude, speed, depth and heave. Its high-accuracy inertial measurement unit is coupled with an embedded digital signal processor that runs an advanced Kalman filter. Phins Subsea can be pre-assembled and pre-calibrated with a doppler velocity log sensor, making the system easy to install and ready to use for more precise navigation. .
Gyro Compasses
Seapath 385
The all-new Seapath 385 is based on the legacy of the Seapath 300-series and incorporates new hardware and advanced navigation algorithms. The Seapath 385 is developed specifically for hydrographic surveying where high-precision heading, position, velocity, roll, pitch, heave and timing are critical measurements. Our solution combines state-of-the-art inertial technology and processing algorithms with multi-frequency GPS, GLONASS, Galileo, Beidou, QZSS and geostationary satellite signals.
Gyro Compasses
Teledyne TSS Meridian Surveyor
The Teledyne TSS Meridian Surveyor boasts a wide range of interfaces to enable use on any marine vessel. The unit utilises a DTG gyro element which provides exceptional performance with accuracy unmatched by even the latest fibre optic designs. Unlike conventional spinning mass gyrocompasses, the Meridian Surveyor uses a dry tuned element (DTG) that removes the need for routine maintenance thereby significantly reducing cost of ownership. Remarkably stable heading can be maintained for turn rates in excess of 200° per second making the system ideal for use on fast survey craft and in river/harbour environments.
Gyro Compasses

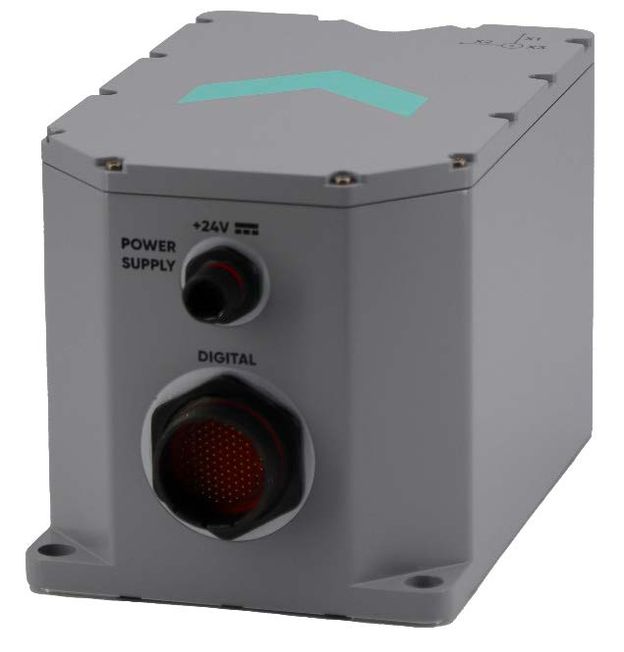

Octans 9
The Octans 9 is an all-in-one product for diverse challenging applications. Octans 9 raises the industry standard in measurement accuracy for roll, pitch, and heave. IMO-HSC and certified, Octans 9 is built on Exail’s trusted and unique ultimate performance Fiber-Optic Gyroscope (FOG) technology with thousands of units manufactured.
Gyro Compasses

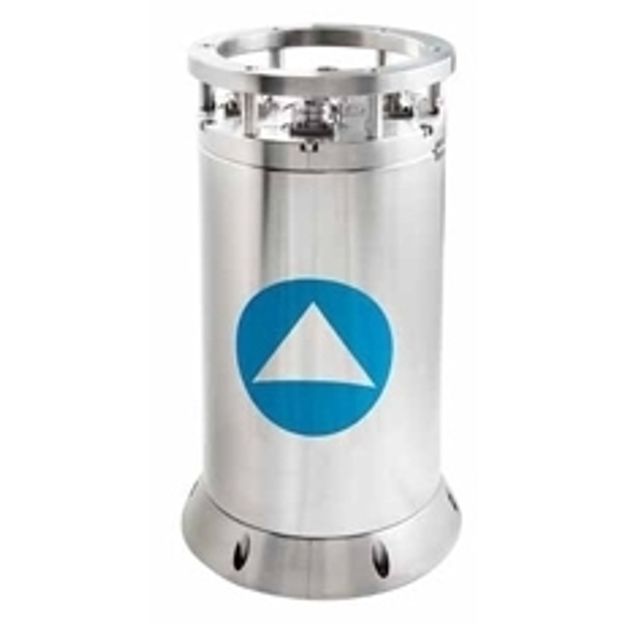

iXBlue Rovins
IXBlue ROVINS is a combined survey-grade full featured Inertial Navigation System (INS) for water depths up to 3,000m. Designed specifically for offshore survey and construction works, ROVINS improves the efficiency of all operations where accurate position, heading, 3D speeds and attitude are key benefits.
Gyro Compasses

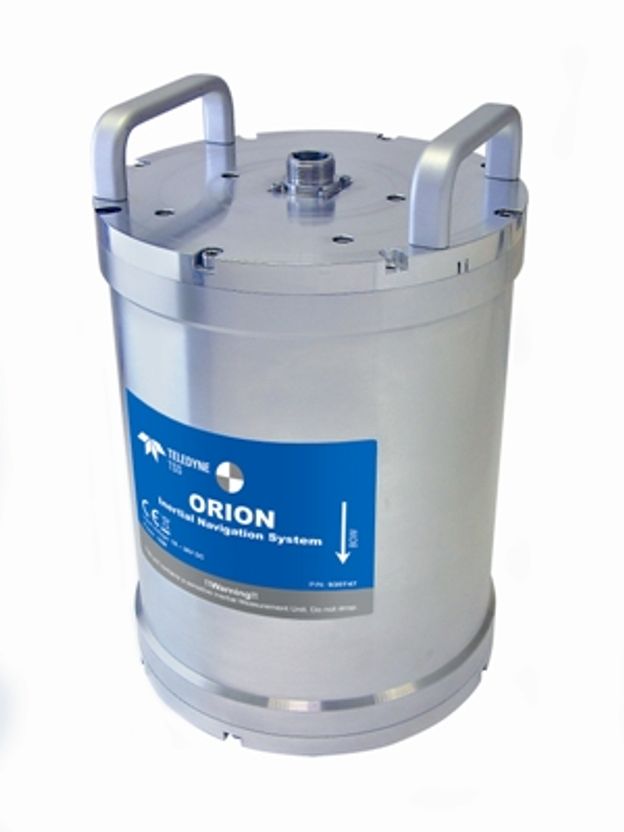

TSS ORION Subsea
Normal 0 21 false false false NO-BOK X-NONE X-NONE /* Style Definitions */ table.MsoNormalTable {mso-style-name:"Table Normal"; mso-tstyle-rowband-size:0; mso-tstyle-colband-size:0; mso-style-noshow:yes; mso-style-priority:99; mso-style-parent:""; mso-padding-alt:0cm 5.4pt 0cm 5.4pt; mso-para-margin-top:0cm; mso-para-margin-right:0cm; mso-para-margin-bottom:10.0pt; mso-para-margin-left:0cm; line-height:115%; mso-pagination:widow-orphan; font-size:11.0pt; font-family:"Calibri","sans-serif"; mso-ascii-font-family:Calibri; mso-ascii-theme-font:minor-latin; mso-hansi-font-family:Calibri; mso-hansi-theme-font:minor-latin; mso-bidi-font-family:"Times New Roman"; mso-bidi-theme-font:minor-bidi; mso-fareast-language:EN-US;} Orion INS has been specifically designed for the demanding hydrographic survey, offshore construction and ROV operations markets. Orion incorporates three single axis ring laser elements and three highly accurate accelerometers. These specific components, widely used in many of the world’s commercial aircraft, were chosen for Orion because of availability, accuracy and their very high meantime between failures. These core elements enabled the TSS research and development team to design this high specification Inertial Navigation System which is configured and controlled by the latest easy-to-use interface – OrionView. Orion utilizes the latest version of the TSS inertial algorithm which has over 30 years of pedigree providing outstanding performance in all sea conditions. Orion is offered as an IP65-rated surface unit or 3000m-rated subsea unit (6000m optional).
Gyro Compasses

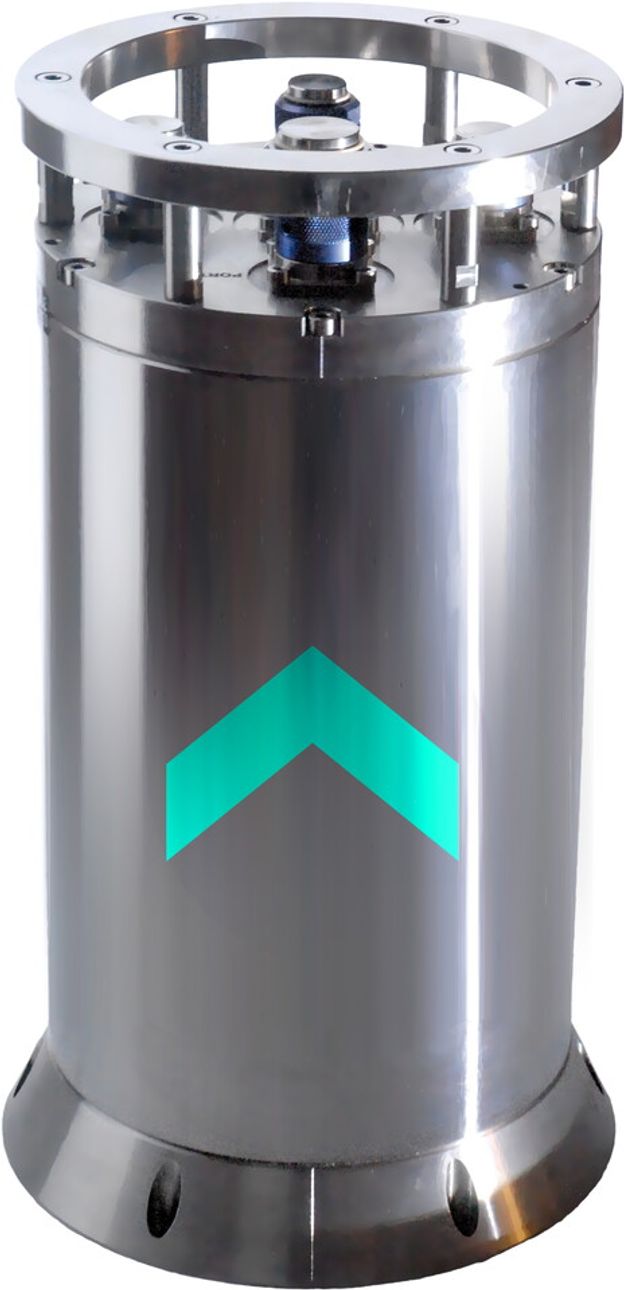

Octans Subsea
High-performance subsea gyrocompass andmotion sensor Octans Subsea is a subsea survey-grade gyrocompass and complete motion sensor for water depths up to 3,000 m. Based on Exail’s FOG technology it outputs heading, roll, pitch, heave, rate of turn and acceleration. Octans Subsea can be easily upgraded to full INS mode (i.e. Rovins).
Gyro Compasses

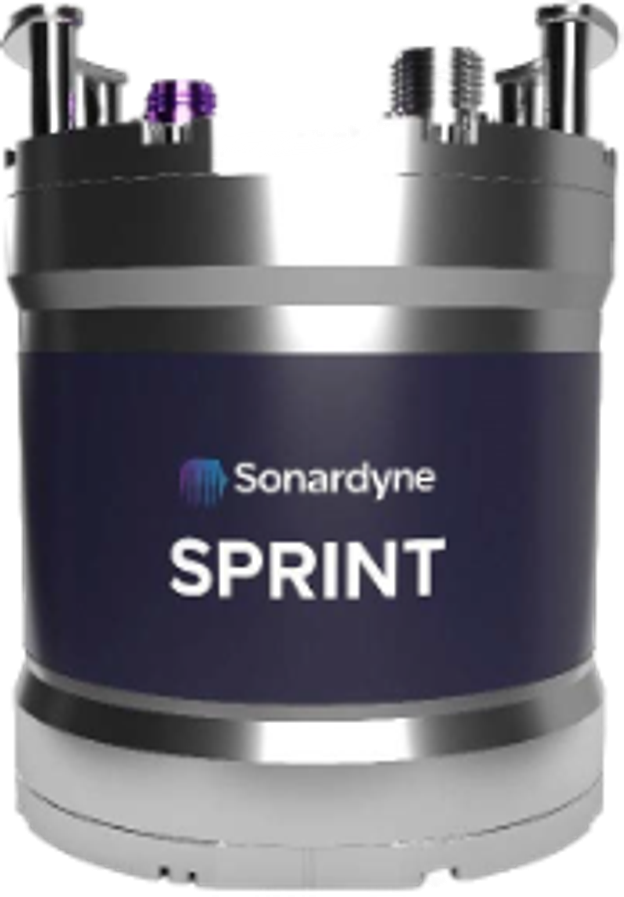

SPRINT subsea INS
SPRINT is an Aided Inertial Navigation System (AINS) highly optimised for cost, size, weight, and power (C-SWaP). Key features • Turn-key solution for motion sensor, gyrocompass and INS • SPRINT provides concurrent AHRS and INS capability for dual use • Fast follow up speed of 900°/sec • Choice of depth ratings: 4,000/6,000 m • Choice of connecters: Seacon (standard) or Seanet® (for use with FMC Schilling Robotics ROV) • Transport approved rechargeable Li-ion battery back-up as standard • 8 GB internal memory allows post processing and remote diagnostics • Full ocean depth aiding from USBL • Export is not ITAR controlled • Ethernet and serial interfaces
Gyro Compasses

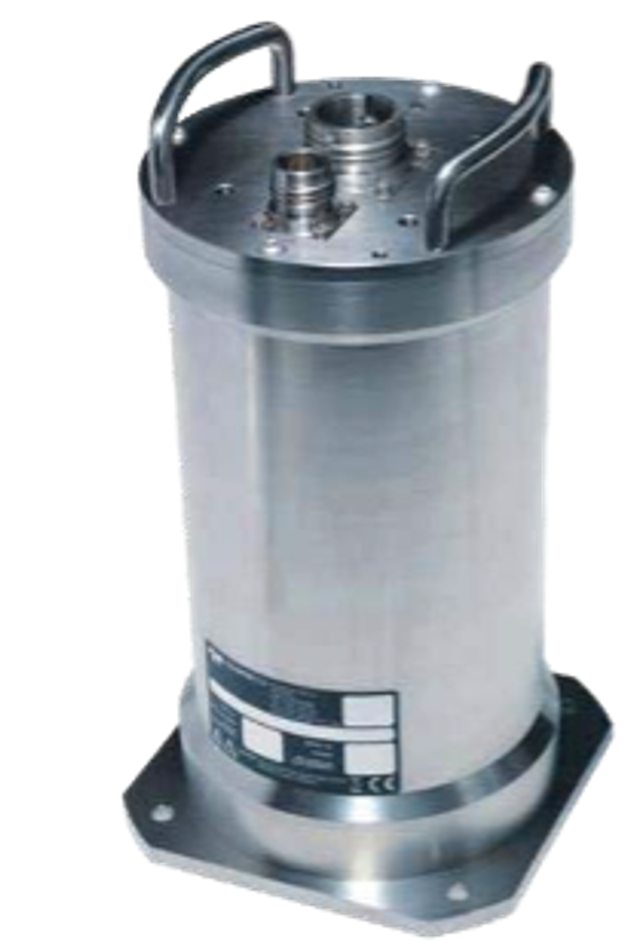

Teledyne TSS Saturn 30 Gyro
The Saturn fibre optic gyrocompass capitalises on more than a century’s experience in marine navigation. Teledyne TSS’ own experienced and innovative engineering team has combined the latest solid-state technologies and calibration techniques to offer a user-friendly, highly accurate and cost-effective navigation solution for demanding marine environments. The Saturn product range has been designed by TSS to provide a range of versatile attitude and heading reference, and inertial navigation systems for both surface and subsea applications. The lightweight, compact and highly reliable units have no moving parts and are maintenance free, making them ideal for all sizes of surface vessel and subsea vehicle. Applications for the Saturn product range include navigation for fast ferries and yachts; subsea positioning for autonomous underwater, and remotely operated vehicles; attitude and heading references for dynamically positioned platforms; full attitude data for hydrographic survey vessels and much, much more. The Saturn 30 Subsea, is primarily designed for subsea ROV navigation. All subsea versions are housed in 4000m rated titanium casings ensuring durability, reduced weight and size, and reduced corrosion when compared to aluminium casings.
Gyro Compasses

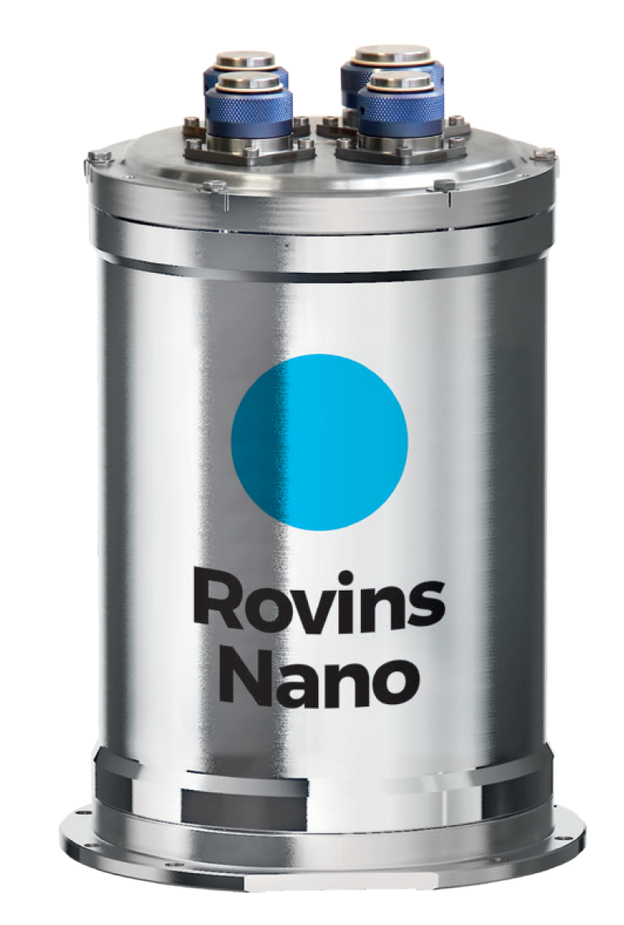

Rovins Nano
Rovins Nano merges the established high-grade Exail Inertial Navigation System (INS) with our competitive Inertial Measurement Unit (IMU). lt is built on Exail’s renowned Fiber-Optic Gyroscope (FOG) solid state technology and offshore instrumentation expertise. Rovins Nano offers the unbeatable stability and accuracy of the inertial position while simplifying the operation with its autonomous external sensor management. Rovins Nano is the navigation solution you can rely on, bringing an additional level of safety in case of deficient aiding sensors
Gyro Compasses

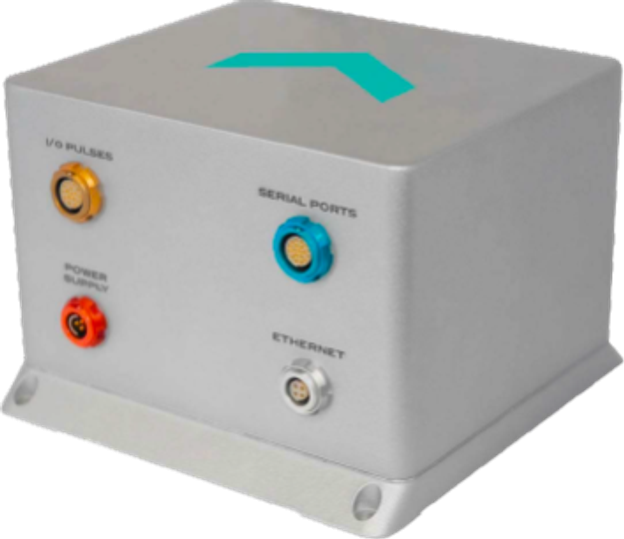

Exail Quadrans
Quadrans IMO grade gyrocompass & attitude reference system Quadrans, is a fully strapdown gyrocompass and attitude reference system. IMO and IMO-HSC certified, it provides all the necessary data for demanding navigation and control applications. High customizability and Ethernet/Serial connectivity provides a very easy integration on any platform. Based on a state-of-the-art interferometric Fiber-Optic Gyroscope technology (iFOG*), Quadrans does not require any maintenance during its unlimited service life. Quadrans is the ideal replacement for any mechanical gyro for whom is focused on total cost of ownership and maximizing availability and safety of their ships.
