SubLOOPER350/400

Description

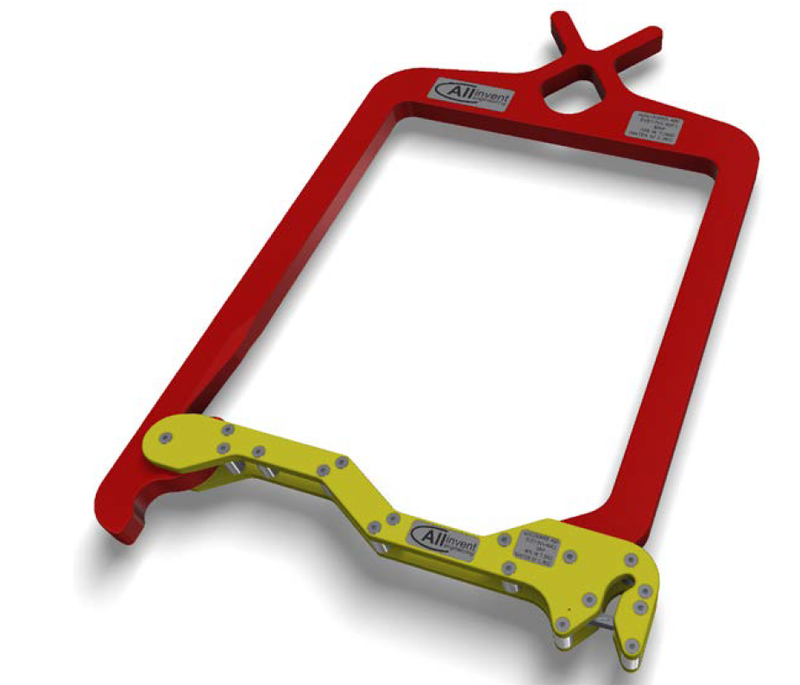

The Butler subLOOPER® 350/400 is an ROV tool for the forerunner loop. The subLOOPER consists of two main parts hinged together: the larger part is a fork with an ROV handle, and the smaller part can be hinged on both sides of the fork and has a 2-way auto-lock hook at one end for the forerunner loop.

The subLOOPER is available in two sizes. The subLOOPER 350 measures 762 × 446 × 45 mm and weighs 7.3 kg in air and 4.8 kg in water. The subLOOPER 400 measures 812 × 496 × 45 mm and weighs 7.9 kg in air and 5.3 kg in water.

Technical Specification

Design

Two main parts hinged together

Main part

Fork with ROV handle

Small part

Hinges on both sides of the fork

Hook

2-way auto-lock hook for the forerunner loop

Dimensions (subLOOPER 350)

762 × 446 × 45 mm

Weight in air / water (subLOOPER 350)

7.3 kg / 4.8 kg

Dimensions (subLOOPER 400)

812 × 496 × 45 mm

Weight in air / water (subLOOPER 400)

7.9 kg / 5.3 kg
