Subsea Pressure Sensor

Description

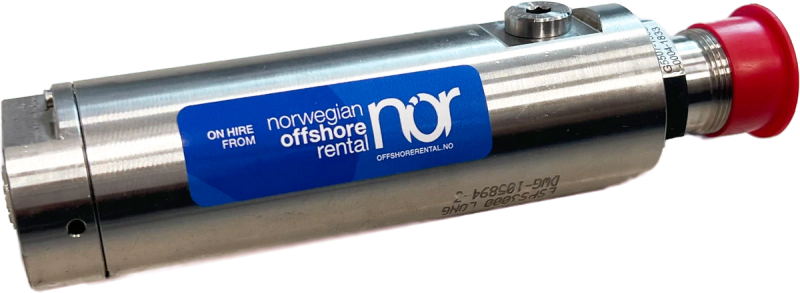

The Subsea Pressure Sensor is the ESPS 3000, a compact subsea pressure transmitter with stainless steel wetted parts, submersible to 3000 m seawater. It measures pressure relative to atmosphere and has a 4–20 mA or RS232/CAN-Bus output.

The ESPS 3000 has an accuracy of ±0.5 % FS including nonlinearity, hysteresis and repeatability, with thermal zero point shift and thermal span shift of <±0.15 % FS/10 K. The datasheet lists nominal pressure ranges of 250, 400, 600, 1000, 1600 and 2200 bar, and the order code also includes 0–100 bar. Media temperature range is −40 to +125 °C, and ambient and compensated temperature range is −15 to +70 °C.

Supply voltage is 8 to 30 VDC and the connector type is G5507-1508. Vibration stability is 20 g, 10–2000 Hz (sinus) to EN 60068-2-6, shock resistance is 100 g to EN 60068-2-27, and electrical performance complies with ISO 7637. The order code offers pressure connection G 1/4" BSP FM (GB04) or 1/4" MP FM (AC04).

Technical Specification

Model

ESPS 3000

Accuracy (incl. nonlinearity, hysteresis and repeatability)

±0.5 % FS

Thermal zero point shift

<±0.15 % FS/10 K

Thermal span shift

<±0.15 % FS/10 K

Response time, liquids (10–90 %)

> 0.5 ms (as stated in datasheet)

Durability (P: 10–90 % FS)

>10 × 10⁶ cycles

Nominal pressure

250, 400, 600, 1000*, 1600*, 2200* bar

Overload pressure (for nominal 250/400/600/1000/1600/2200 bar)

500/800/1400/2000/2500/3000 (unit not stated)

Burst pressure (for nominal 250/400/600/1000/1600/2200 bar)

2500/4000/>4000/>4000/>4000/>4000 (unit not stated)

Pressure ranges (order code)

0–100 bar (05), 0–250 bar (10), 0–400 bar (20), 0–600 bar (30), 0–1000 bar (40), 0–1600 bar (45), 0–2200 bar (50)

Pressure connection (order code)

G 1/4" BSP FM (GB04) or 1/4" MP FM (AC04)

Side ports (drawing)

2 × G 1/8" BSP

Wetted parts

Stainless steel

Media temperature range

−40 to +125 °C

Ambient temperature range

−15 to +70 °C

Compensated temperature range

−15 to +70 °C

Electrical performance compliance

ISO 7637

Vibration stability

20 g, 10–2000 Hz, sinus, EN 60068-2-6

Shock resistance

100 g, EN 60068-2-27

Pressure reference

Atmosphere (relative)

Output signal

4–20 mA or RS232/CAN-Bus (order code 1 or 2)

Supply voltage

8 to 30 VDC

Loop current (4–20 mA)

Should not exceed 22 mA continuous or 25 mA temporarily due to pressure peaks

Connector type

G5507-1508

Pin-out, 4–20 mA

Pin 1: 0 V; Pin 2: 24 VDC; Pin 3: 4–20 mA; Pins 4–8: NC

Pin-out, RS232/CAN-Bus

Pin 1: 0 V; Pin 2: 24 VDC; Pin 3: CAN Hi; Pin 4: CAN Lo; Pin 5: RS232 TX; Pin 6: RS232 RX; Pin 7: RS232 GND; Pin 8: NC

Dimensions (drawing)

Ø40 × 129, plus 31.8 pressure port (unit not stated)

Depth rating

3000 m seawater
