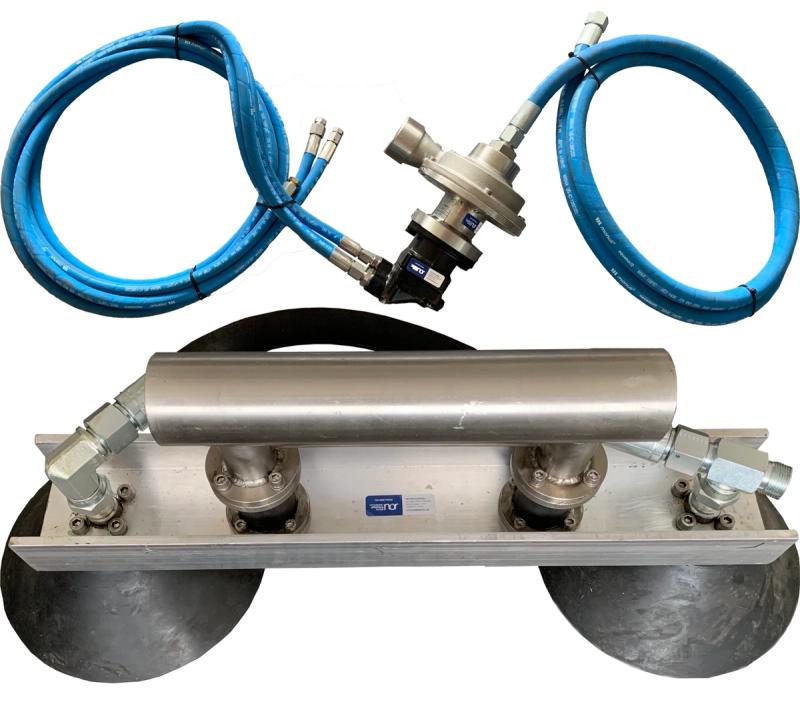

Suction Kit

Description

The Suction Kit holds an ROV steady while it works, which helps minimise damage to equipment and reduces downtime on equipment and projects. It can also be used for vacuum pressurising suction anchors.

The kit is built around the hydraulically driven Suction Pump 103-H, which delivers a flow of up to approx. 36 m³/h and a maximum pressure of approx. 23 mWC. The pump runs on 150 bar and 15 l/min from the ROV's hydraulic system, with 1/2" BSP ports, a 1/4" BSP drain and a 2" BSP suction outlet. The pump body measures 291 × 190 × 296 mm.

Technical Specification

Pump

Suction Pump 103-H

Pump dimensions

291 × 190 × 296 mm

Max flow

Approx. 36 m³/h

Max pressure

Approx. 23 mWC

Hydraulic pressure

150 bar

Hydraulic flow

15 l/min

Ports A and B

1/2" BSP

Drain

1/4" BSP

Suction outlet

2" BSP
