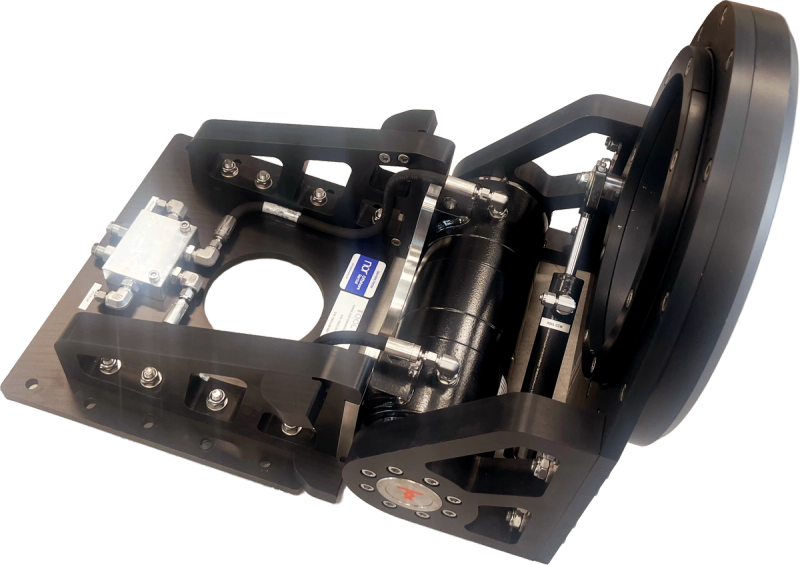

Tooltec FLOT

Description

The Tooltec FLOT (Flying Lead Orientation Tool) is a tool for use with a Class 1–4 torque tool to engage, transport and dock flying leads. The FLOT can be installed with a Tool Tec Class 1–4 torque tool, and adaptor kits for fitting third-party torque tools can be supplied (optional).

The Tooltec FLOT pitches the torque tool from +60° to −90° from the horizontal and rotates it ±20° from the vertical/centre position. Dynamic pitch load is 300 kg and roll torque is 1800 Nm. The FLOT is hydraulically driven with an input pressure of 3,000 psi and input flow of 15 lpm, through ¼" standpipe ends c/w nut and ferrule.

The Tooltec FLOT has interfaces for the Tooltec Torque Tool, Forum Torque Tool, FLX 360 Tool and Oceaneering electrical torque tool. It is rated to 3,000 msw, measures 670 × 450 × 560 mm and weighs 80 kg in air and 60 kg in water.

Technical Specification

Function

Engage, transport and dock flying leads with a Class 1–4 torque tool

Interfaces

Tooltec Torque Tool, Forum Torque Tool, FLX 360 Tool, Oceaneering electrical torque tool

Third-party torque tool adaptor kits

Can be supplied (optional)

Pitch range

+60° / −90° (from horizontal)

Dynamic pitch load

300 kg

Roll range

±20° (from vertical/centre)

Roll torque

1800 Nm

Input pressure

3,000 psi

Input flow

15 lpm

Hydraulic connections

¼" standpipe ends c/w nut and ferrule

Depth rating

3,000 msw

Dimensions

670 × 450 × 560 mm

Weight in air

80 kg

Weight in water

60 kg
