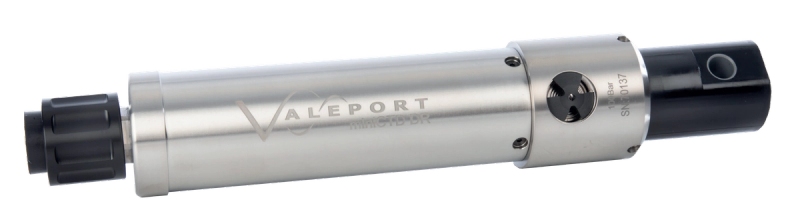

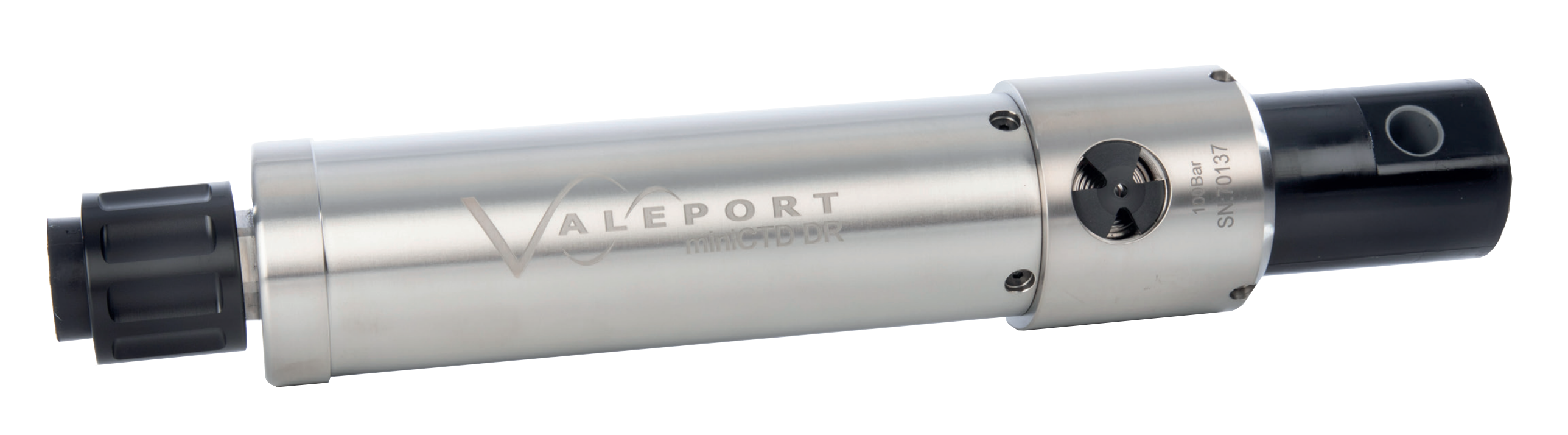

Valeport Mini CTD DR – Direct Reading CTD
Direct Reading CTD for ROV Operations
Description
The Valeport miniCTD DR is a direct reading CTD adapted from the Valeport miniCTD and optimised for ROV operations. The miniCTD DR has a direct reading interface only, with no internal battery or logging capability, and is used for the collection of CTD profiles. Salinity and density are calculated by the software from the measured parameters.
The Valeport miniCTD DR is fitted with a digital conductivity sensor, a PRT temperature sensor and a strain gauge pressure transducer. Conductivity is measured over 0–80 mS/cm with ±0.01 mS/cm accuracy and 0.001 mS/cm resolution, and temperature over −5 to +35 °C with ±0.01 °C accuracy and 0.001 °C resolution. The pressure range is 5, 10, 20, 30, 50, 100, 200, 300, 400 or 600 bar depending on model, with ±0.01 % or ±0.05 % range accuracy and 0.001 % range resolution.
Data are sampled at 1–8 Hz, either continuously at 1, 2, 4 or 8 Hz or in profile mode, where data are output each time the instrument falls or rises by a defined amount. RS232 (up to 200 m cable) and RS485 (up to 1000 m cable) are fitted as standard and selected by pin choice on the SubConn MCBH10F connector, with a 9–28 V DC external supply and <250 mW power. The titanium miniCTD DR is rated to 6000 m (maximum deployment depth may be limited by the pressure transducer range), weighs 1.8 kg and is supplied with a deployment frame, pigtail/interface lead, operating manual, transit case and licence-free DataLog X2 PC software.
