Valeport miniIPS

Precision Underwater Pressure Sensor, 6,000 m

Description

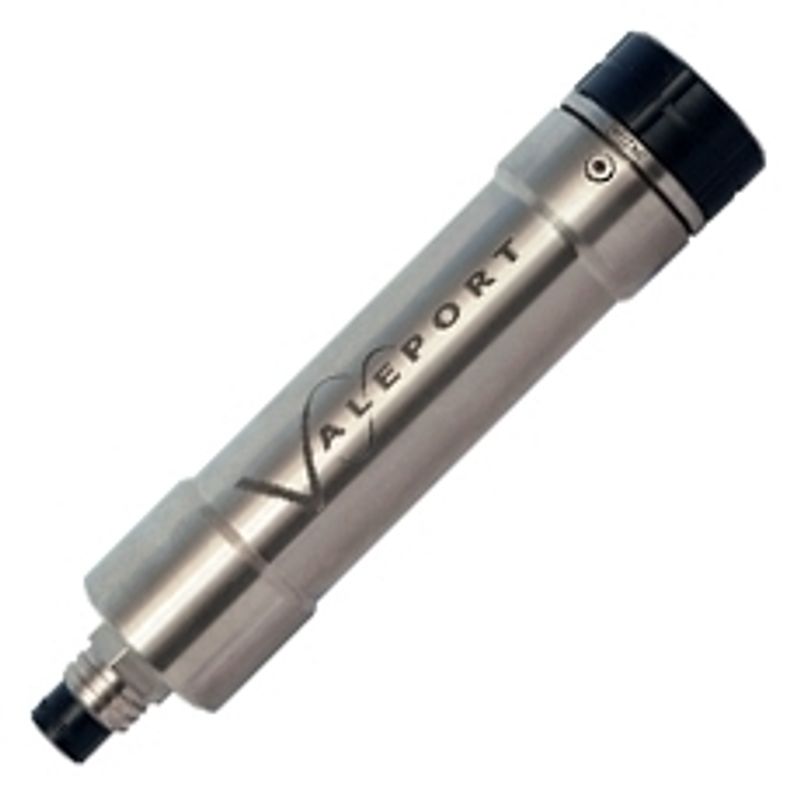

The Valeport miniIPS is a precision underwater pressure sensor for real-time depth measurement, with a titanium housing rated to 6,000 m. It is available with pressure ranges of 10, 30, 100, 300 or 600 bar and has an accuracy of ±0.01 % FS.

The sensor is a temperature-compensated piezo-resistive type, which gives long-term stability and longer intervals between calibrations, without diaphragms or oil-filled capillaries. The miniIPS is compatible with Valeport's MIDAS BathyPack and BathyLog software, so depth data can be corrected for density variations in the water column.

RS232 and RS485 are fitted as standard, with output at 4800 to 115200 baud. Sampling can be continuous at 1, 2, 4 or 8 Hz, burst averaged or on demand, and a tare function corrects for atmospheric offset. The sensor runs on 9–30 VDC, draws less than 0.4 W and measures 40 mm Ø × 185 mm including the connector.
